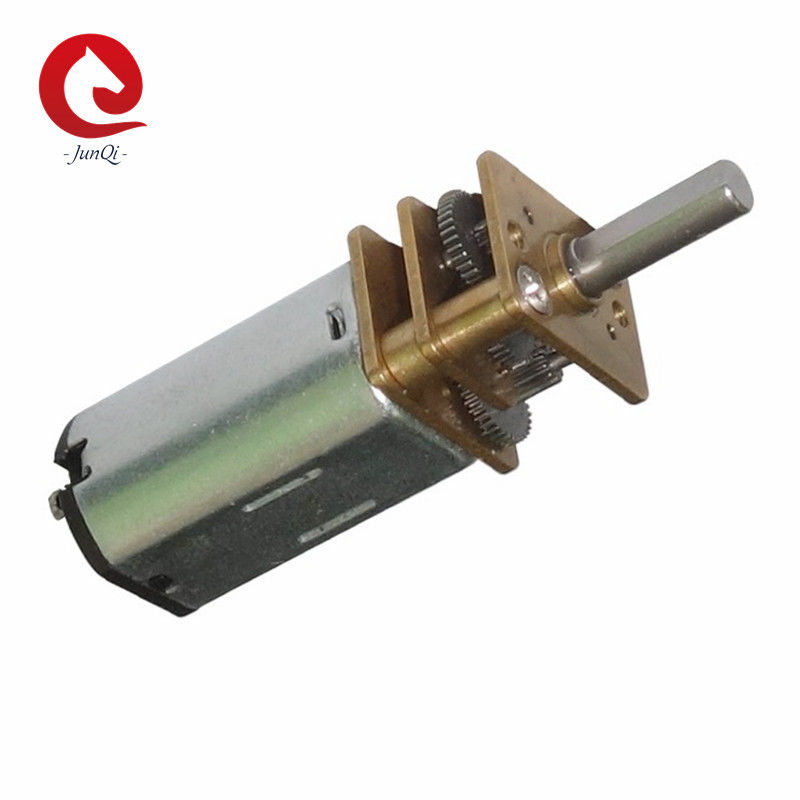

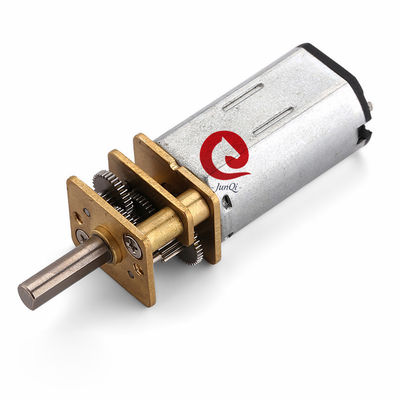

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys

  • N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys
  • N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys
  • N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys
  • N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys
N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys
Product Details:
Place of Origin: China
Brand Name: Junqi
Certification: CE,ROHS, UL
Model Number: JQM-12SSN30
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD4-usd5/pc (Negotiable)
Packaging Details: suite for export
Delivery Time: as confirmed
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Product Name: DC Gear Motor Commutation: Brush
Model: JQM-12SSN30 Voltage: 1.5V~12VDC
Power: 0.1~0.5W Speed: 8~1000RPM
Torque: 1~5kg.cm Construction: Permanent Magnet
Diameter: 12mm Application: BOAT, Car, Electric Bicycle, FAN, Home Appliance

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys 0

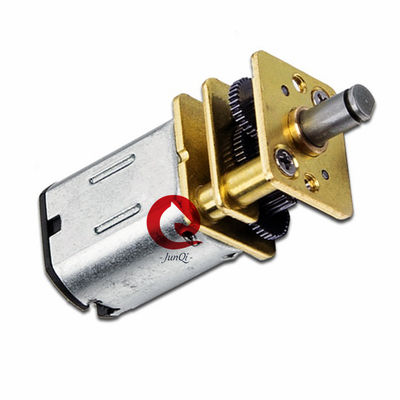

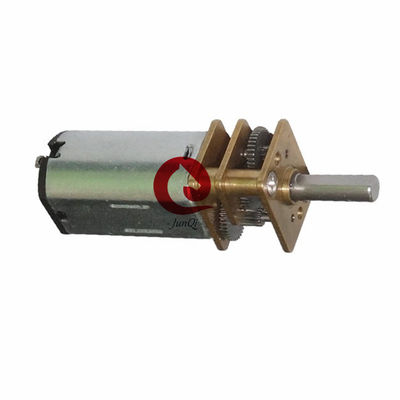

JQM-12SSN30 micro metal gear motor

1. Main voltage: 1.5V,2.5V,3V,6V,12VDC
2. Typical applications: Automatic door-lock,projector, hairdressing equipment
3. Square Gearbox size:12mm*10mm*L
4. Torque:50gf.cm~2000gf.cm
5. Direction: CW,CCW
6. Voltage, speed, and shaft can be customized based
7. Encoder 3PPR available



Driving Motor Data:

Motor model

Rated

Volt.

No load Load Stall
Current Speed Current Speed Torque

Output

power

Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
JQM-N30-006-10000 6 ≤30 10000 ≤110 7500 4 0.3 ≥16 ≥280
JQM-N30-006-15000 6 ≤55 15000 ≤200 11250 6 0.7 ≥24 ≥490
JQM-N30-006-25000 6 ≤100 25000 ≤370 18750 8 1.5 ≥32 ≥1500



Technical Data of Gearbox:

Number of stages 2 4 5 7
Reduction ratio 3,5,10

17,20,30,36

50,63,100

110,150,210

250,298,380

372,625,1000
Gearbox length “L”mm 9 9 9 12
Breaking torque(kgf.cm) 0.6 0.9 1.2 2
Gearbox efficiency 81% 65% 59% 48%



Gear Motor Mechanical Size:

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys 1

Gear Motor Electric Data:

Motor model

Rated

Volt.

No load Load Stall
Current Speed Current Speed Torque Output power Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
JQM-12SSN3000315000-250K 3.0 0.06 57.3 0.28 45.9 0.60 0.28 2.90 1.18
JQM-12SSN3000317500-50K 3.0 0.12 322.7 0.46 246.6 0.21 0.52 0.88 1.55
JQM-12SSN303.322000-100K 3.3 0.11 220.2 0.53 178.2 0.38 0.69 1.97 2.33
JQM-12SSN303.322500-100K 3.3 0.13 219.1 0.59 174.1 0.37 0.66 1.80 2.36
JQM-12SSN304.520500-50K 4.5 0.08 393.5 0.41 321.0 0.25 0.82 1.40 1.85
JQM-12SSN304.523400-63K 4.5 0.11 360.1 0.48 294.2 0.30 0.93 1.70 2.15
JQM-12SSN304.526300-63K 4.5 0.15 398.3 0.70 316.3 0.43 1.41 2.10 2.83
JQM-12SSN3000517500-50K 5.0 0.03 356.5 0.17 301.9 0.11 0.35 0.73 0.94
JQM-12SSN3000520000-100K 5.0 0.05 196.9 0.30 164.4 0.42 0.71 2.60 1.58
JQM-12SSN3000610000-100K 6.0 0.02 105.9 0.08 86.0 0.17 0.15 0.90 0.33
JQM-12SSN3000610000-150K 6.0 0.02 67.8 0.08 53.4 0.35 0.19 1.63 0.32
JQM-12SSN3000610000-250K 6.0 0.02 42.7 0.09 33.6 0.57 0.20 2.68 0.32
JQM-12SSN3000610000-298K 6.0 0.02 36.3 0.08 29.1 0.61 0.18 3.10 0.33
JQM-12SSN3000612000-30K 6.0 0.04 390.0 0.13 291.8 0.07 0.20 0.26 0.37
JQM-12SSN3000615000-100K 6.0 0.03 159.7 0.12 132.2 0.19 0.26 1.10 0.58
JQM-12SSN3000615000-150K 6.0 0.03 105.9 0.12 87.8 0.34 0.31 2.00 0.59
JQM-12SSN3000615000-250K 6.0 0.03 64.8 0.15 51.5 0.70 0.37 3.40 0.60
JQM-12SSN3000615000-298K 6.0 0.03 50.9 0.13 40.6 0.73 0.31 3.60 0.54
JQM-12SSN3000623500-298K 6.0 0.06 78.6 0.30 64.4 0.97 0.64 5.38 1.39

Notes: Above is our standard models for your reference, we can make as customer request.





Professional Factory:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 2





Certificate Photos :

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 3

Packing:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 4

Transportation:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 5

Motor Application Fields:


N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys 6



Our motor products contain range:

N30 DC Motor with 12mm Spur Gearbox 3V 6V 12V Small reduction Motor For Electric Toys 7



FAQ:



Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit



Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.



Q: What’s Moq?

A: 5PCS. Small Order Welcome.



Q:Do You Make Customized Product?

A:Yes,We Accpet IT.



Q:About After Sale Serive?

A: After Sales Services 24/7.



Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.



Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details



Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.
