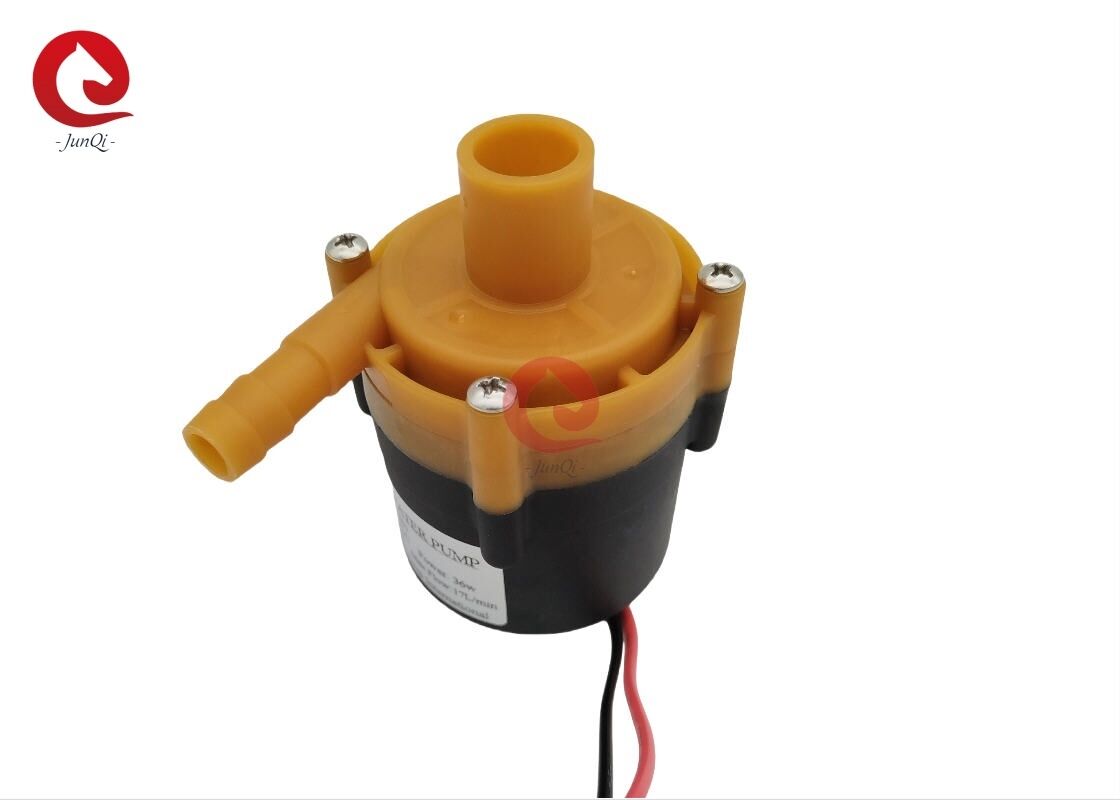

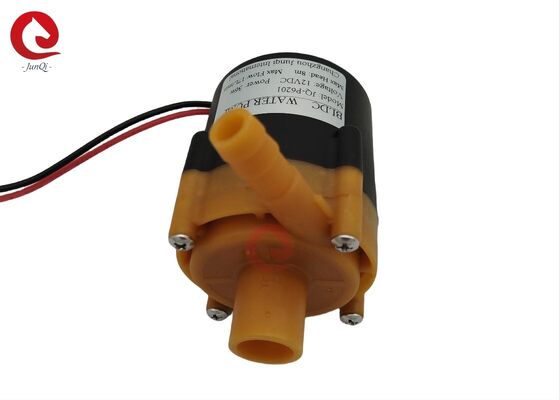

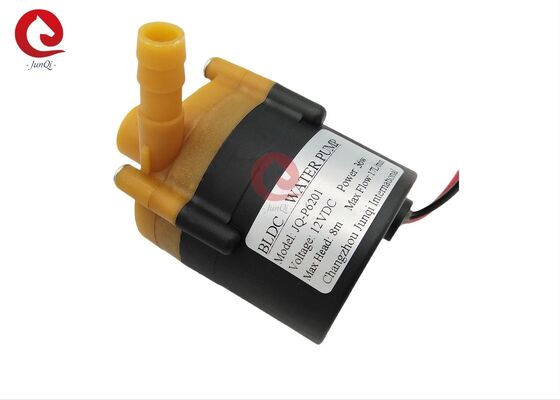

JQ-P6201-2Pin 24V 55W 22LPM Brushless DC Water Pump Used For Chiller Machine Cooling System
Product Description:
Theory: Centrifugal Pump
Struncture: Single-stage Pump
Usage: Water
Fuel: DC Power Solar Panel
Motor: Three-phase brushless DC motor
Impeller Type: Closed impeller
Temperature range: 0~100℃
Pump body material: Nylon PPE PK
Remarks: Can't dry-running, not Self-priming
Product application:
♦ The medium and small laser chillers
♦ Beauty equipment, medical equipment
♦ LED cooling, Semiconductor cooling
♦ Other equipments that need pressurization and refrigeration
Product parameters:
| Model |
JQ-P6201-12V |
JQ-P6201-24V |
| Voltage |
12VDC |
24VDC |
| Max Power |
36W |
55W |
| Max Flow |
8m |
11m |
| Max Head |
12LPM |
21LPM |
Above is tandard model, can customized, PWM control
Performance Curve:(24v version)
Dimensions (mm):
Product installation Method:
1. It is forbidden to work without water
2. Reverse polarity connection is not allowed
3. Medium temperature can't be over 100℃
4. It is strictly prohibited to cycle liquid with impurities and magnetic particles ( particles less than 0.3mm)
5. It is forbidden to use it in strong acid and strong alkali solution
