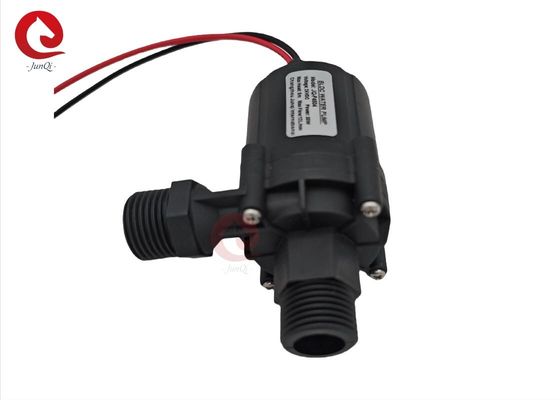

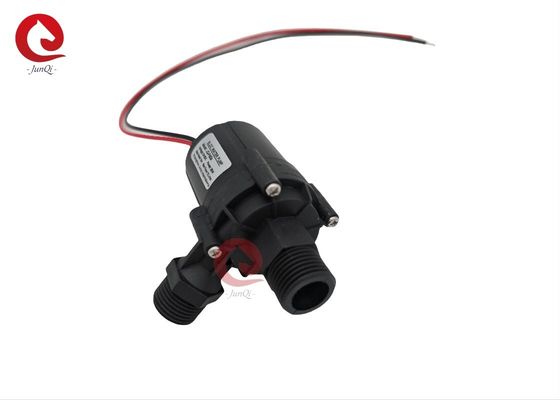

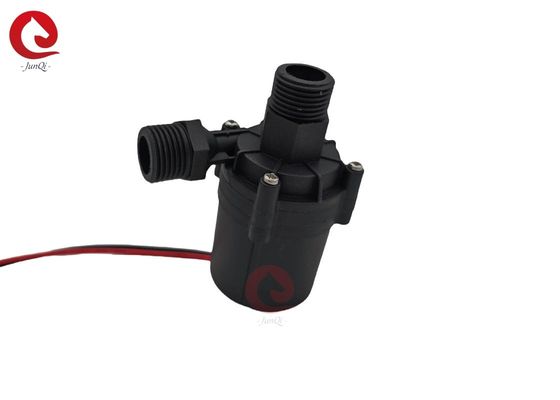

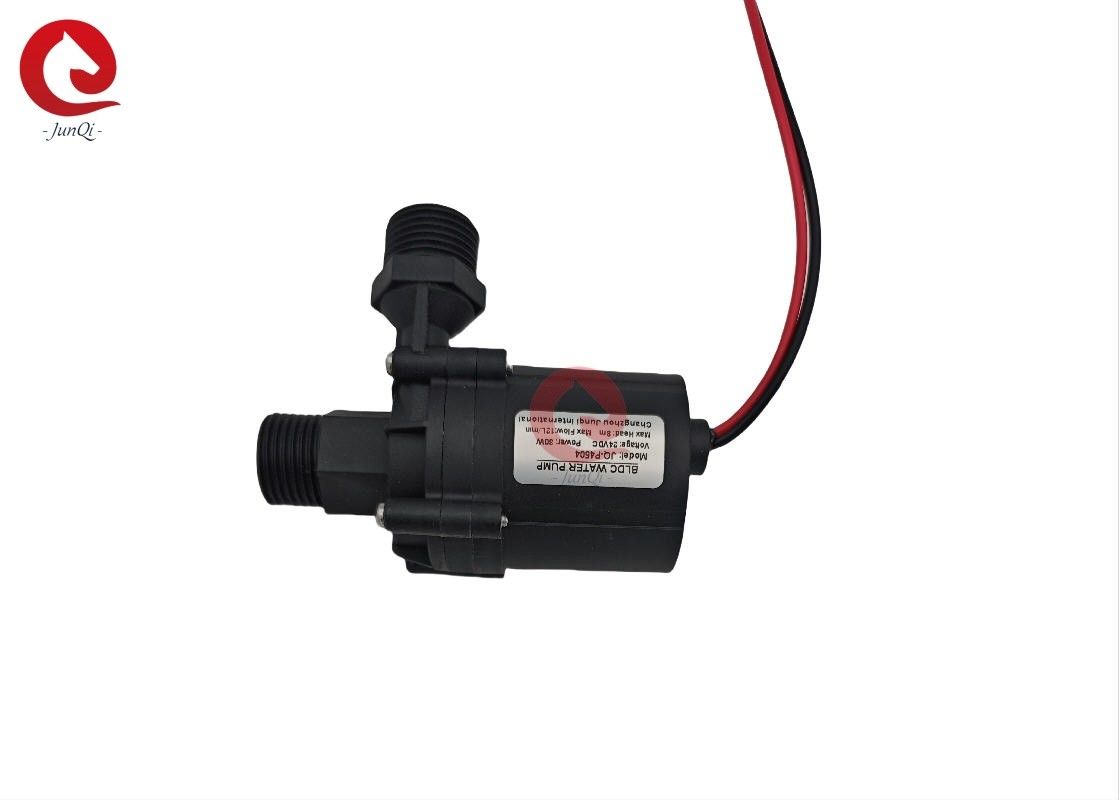

JQ-P4504 Beatuty Equipment pump, 24VDC 30W Silent Low Vibration BLDC Water Pump for Hair Washing Machines

JQ-P4504 Beatuty Equipment pump, 24VDC 30W Silent Low Vibration BLDC Water Pump for Hair Washing Machines

BLDC water pump advatge:

1. Low Power consumption, high performance;

2. Long service life, more than 20,000 hours;

3. Can 24 hours continue operating working;

4. Low Noise, high efficiency

5. Simple operation and have stable performance, fast speed; can be directly powered by DC power supply, solar panels and batteries.

6.The stator and circuit board of the motor are encapsulated with epoxy resin and completely isolated from the rotor, which solves the leakage problem caused by long-term submersible operation of the motor-type DC water pump. It can be installed underwater and is completely waterproof. 7. The shaft center of the water pump adopts a high-performance ceramic shaft, which features high precision and good shock resistance. Due to the precise fit between the wear-resistant shaft sleeve and the ceramic shaft of the water pump, the noise is less than 35 decibels. For smaller power models, it can even reach below 30 decibels, almost achieving a silent effect.

Pump parameters:

1. Rated Voltage: DC24V

2. Rated Power: 30W

3. Max.lift: 8m

4. Max.flow: 12LPM

5. Applicable water temperature: 0~60℃

6. Protection level: IP67

Dimensions:

Application:

1. Liquid transfer general purpose

2. Hot water circulating system
3. Laser Chiller Systems

4. Instant electric water heater, electric shower

5. Circulating systems for homes

6. Medical applications/Medical Beauty Equipment pump

7. Dishwasher spray system

8. LED cooling, Semiconductor cooling

9.Boosting applications

10. Carbonated Beverage Machine

11.HVAC System

12.Cooling Circulation System

If you need more information please contact with us via email: ivanzhu@junqitrading.com
