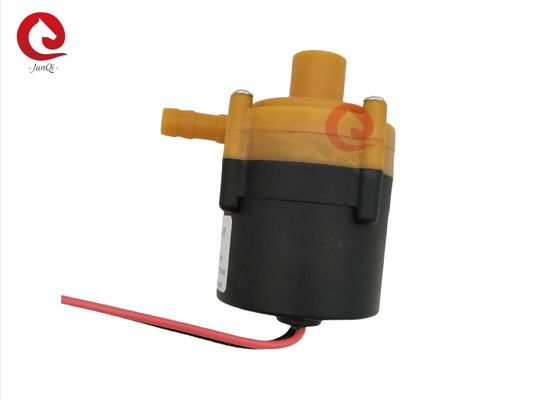

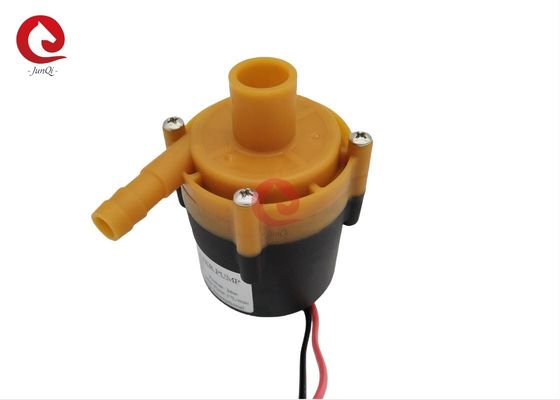

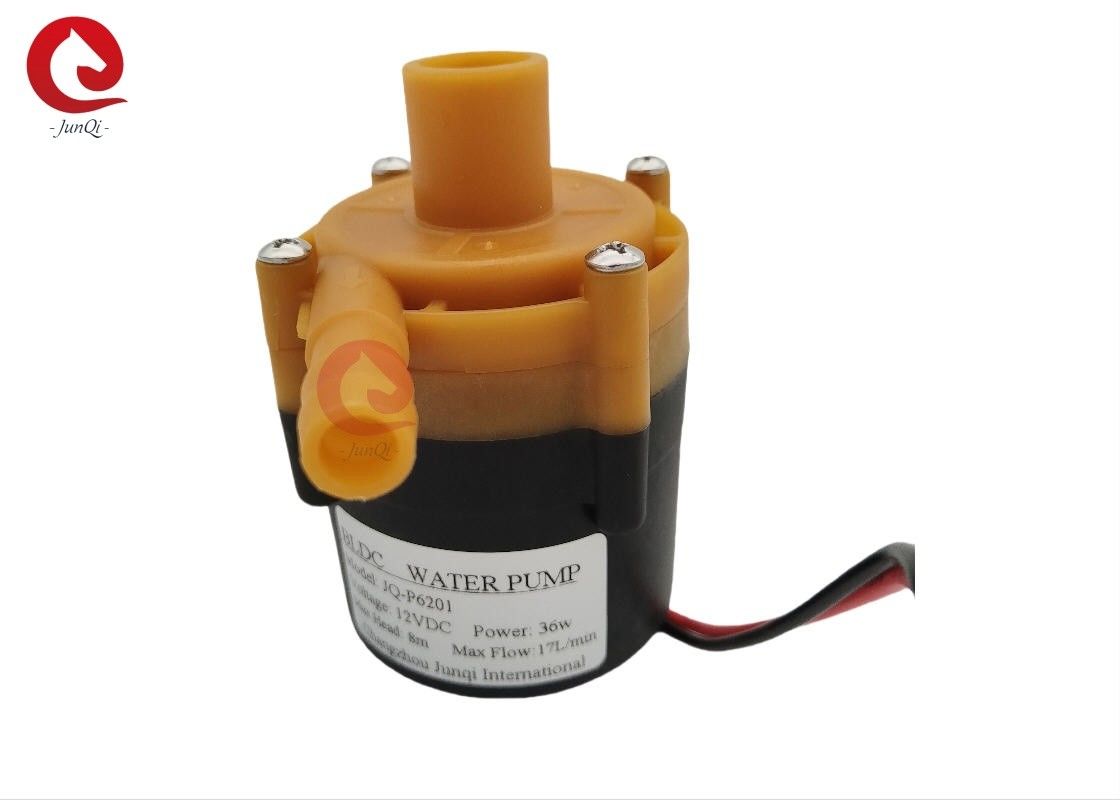

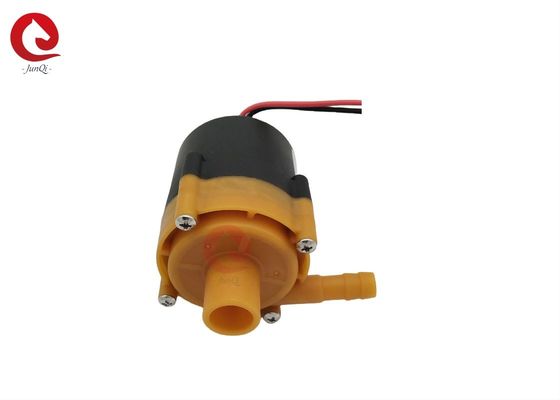

JUNQI 12V 24V Circulation Brushless DC Water Pump JQ-P6201 Laser Chiller Water Pump

JUNQI 12V 24V Circulation Brushless DC Water Pump JQ-P6201 Laser Chiller Water Pump

  • JUNQI 12V 24V Circulation Brushless DC Water Pump JQ-P6201 Laser Chiller Water Pump
  • JUNQI 12V 24V Circulation Brushless DC Water Pump JQ-P6201 Laser Chiller Water Pump
  • JUNQI 12V 24V Circulation Brushless DC Water Pump JQ-P6201 Laser Chiller Water Pump
  • JUNQI 12V 24V Circulation Brushless DC Water Pump JQ-P6201 Laser Chiller Water Pump
JUNQI 12V 24V Circulation Brushless DC Water Pump JQ-P6201 Laser Chiller Water Pump
Product Details:
Place of Origin: China
Brand Name: JEUNKEI
Certification: ISO9001,CE
Model Number: JQ-P6201
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs ( sample available)
Price: negotiation
Packaging Details: Suite for export
Delivery Time: depend on the order quantity /Negotiable
Payment Terms: T/T, , Western Union, Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Power Source: Electric Strructure: Single-stage Pump
Brand: JEUNKEI Model: JQ-P6201
Outlet Size: 11.9mm Warranty: 12 Months
Motor: BLDC Motor Voltage: 12V/24VDC
Highlight:

24V Brushless DC Water Pump

,

Circulation Brushless DC Water Pump

,

Laser Chiller Water Pump

JUNQI 12V 24V Circulation Brushless DC Water Pump JQ-P6201 Laser Chiller Water Pump



Features:



◆Centrifugal pump
◆Magnetic force transmission (shield pump structure)
◆High efficiency brushless DC motor, low power consumption, high efficiency,long service life.
◆With wide range operating temperature
◆PWM signal speed controlling
◆With constant flow controlling
◆Reverse polarity protection (optional)
◆Dry running protection (optional)
◆Over Voltage, over current protection
◆Overload, over temperature protection



Parameters:

JQ-P6201
Rated Voltage 12V/24VDC
Operation Voltage 9~26.5V
Flow Range 0~25L
Lift Range 0~12m
Noise ≤55dB/ Max
Service Life 15000H
Working Continue
Inlet Dia 18mm
Outlet Dia 12mm



Performance curve:

JUNQI 12V 24V Circulation Brushless DC Water Pump JQ-P6201 Laser Chiller Water Pump 0



Dimensions(mm):

JUNQI 12V 24V Circulation Brushless DC Water Pump JQ-P6201 Laser Chiller Water Pump 1



Application:



1. Liquid transfer general purpose

2. Hot water circulating system
3. Laser Chiller Systems pump

4. Instant electric water heater, electric shower

5. Circulating systems for homes

6. Medical applications/Medical Beauty Equipment pump

7. Dishwasher spray system

8. LED cooling, Semiconductor cooling

9.Boosting applications

10. Carbonated Beverage Machine

11.Cooling Circulation System

JUNQI 12V 24V Circulation Brushless DC Water Pump JQ-P6201 Laser Chiller Water Pump 2
