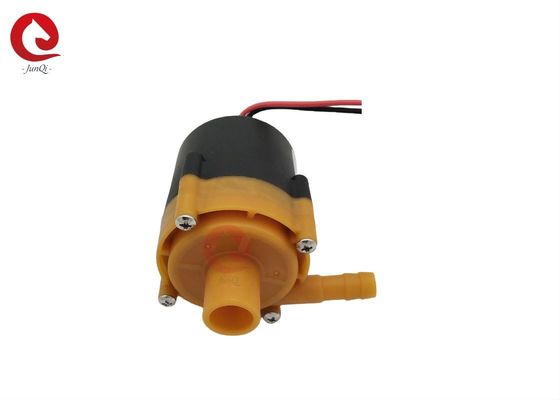

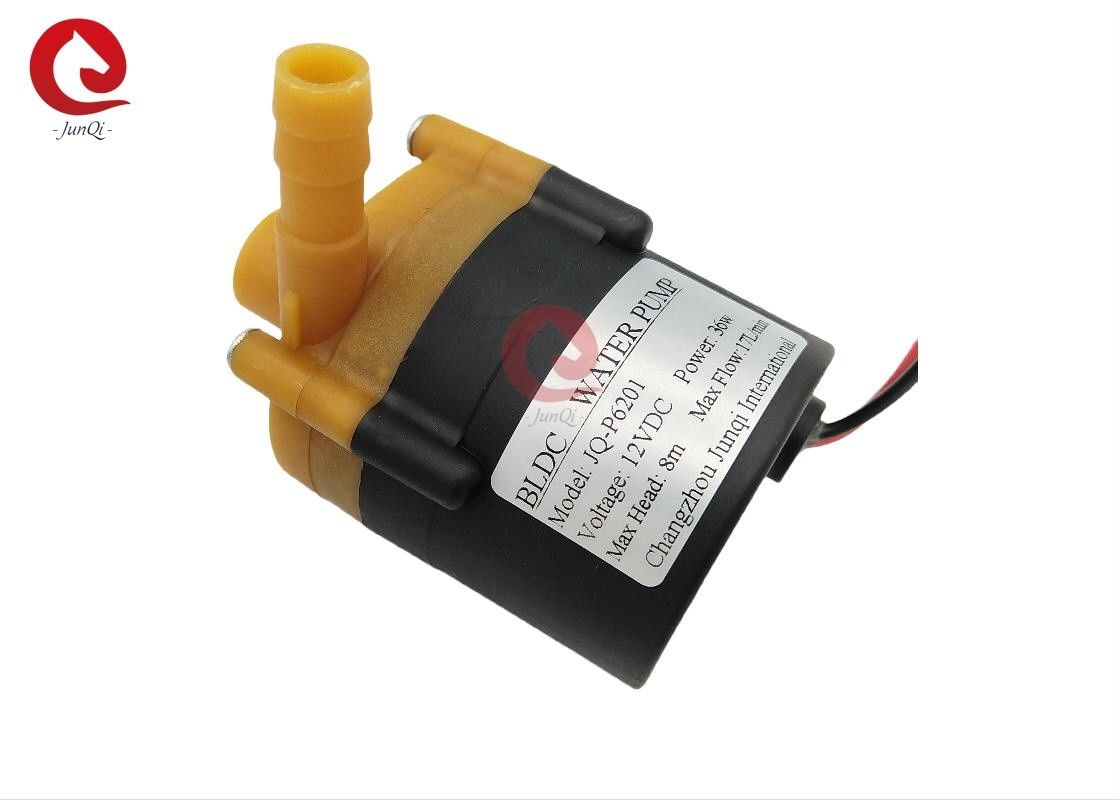

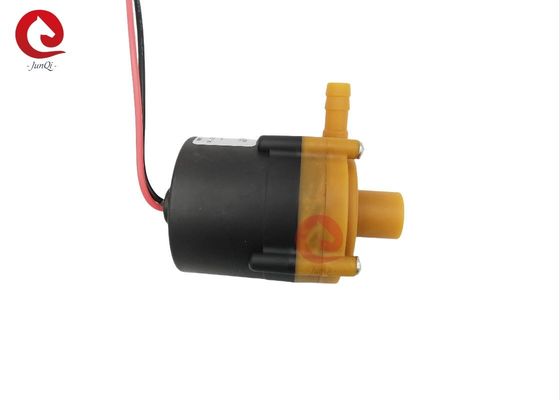

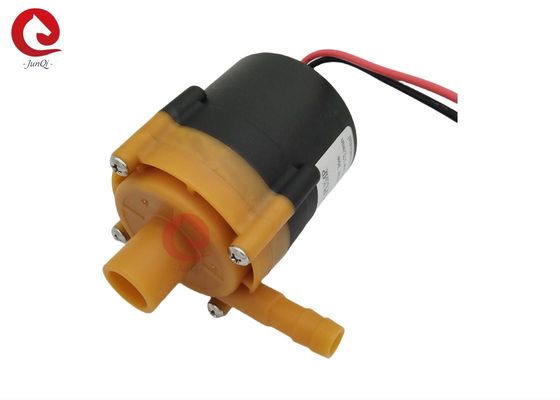

24VDC Brushless Water Pump for Industrial Chiller, High Efficiency, JQ-P6201

Product Details:

Place of Origin:	China
Brand Name:	JEUNKEI
Certification:	ISO9001,CE
Model Number:	JQ-P6201

Payment & Shipping Terms:

Minimum Order Quantity:	10pcs ( sample available)
Price:	negotiation
Packaging Details:	Suite for export
Delivery Time:	depend on the order quantity /Negotiable
Payment Terms:	T/T, , Western Union, Paypal
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Power Source:	Electric	Structure:	Single-stage Pump
Model Number:	JQ-P6201	Power:	36W~55W
Rated Voltage:	12V/24VDC	Warranty:	12 Months
Max. Lift:	8m/11m	Max.flow:	17L/min, 21L/min
Highlight:	24VDC Window Regulator Motor , OEM Plastic Steel Window Regulator Motor , MB Actros Electric Window Regulator

12V/ 24VDC Brushless Water Pump for Industrial Chiller, High Efficiency, JQ-P6201

Features:
◆Centrifugal pump
◆Magnetic force transmission (shield pump structure)
◆High efficiency brushless DC motor, low power consumption, high efficiency,
long service life.
◆With wide range operating temperature
◆PWM signal speed controlling
◆With constant flow controlling
◆Reverse polarity protection (optional)
◆Dry running protection (optional)

Technical Parameters:

Model No.	JQ-P6201
Rated Voltage	12VDC	24VDC
Max. Power	36W	55W
Max.Head	8m	11m
Max Flow	17L/min	21L/min
Working Temperature	0~70℃
Protection Level	IP67
OEM is accept, also can customized PWM control function

Dimensions:

24VDC Brushless Water Pump for Industrial Chiller, High Efficiency, JQ-P6201 0

Performance Curve:

24VDC Brushless Water Pump for Industrial Chiller, High Efficiency, JQ-P6201 1

Applications:

The medium and small laser chillers

Beauty equipment,medical equipment

LED cooling,semiconductor cooling

Other equipments that need pressurization and refrigeration
