| Place of Origin: | China |
| Brand Name: | junqi |
| Certification: | IS9001, TS16949,CE |
| Model Number: | JP12A12-3-2.0 |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotialbe |
| Packaging Details: | suitable for export |
| Delivery Time: | base on order, |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000set/month |

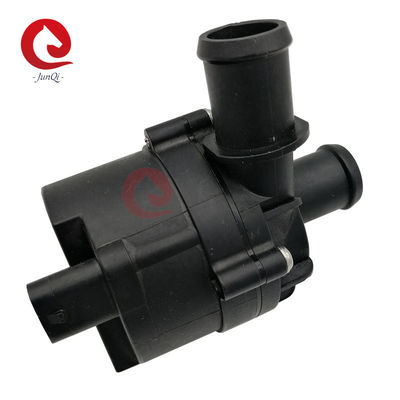

| Model: | JP12A12-3-2.0 | Material: | PPS+GF, Stainless |
|---|---|---|---|
| Voltage: | 12V | Power: | 12w |
| Rated Flow Rate: | 20L/min | Head: | 2m |
| Application: | Automotive Engine Cooling Circulation,4.Heating System(Car Auxiliary Heaters&parking Heaters) | ||
| High Light: | 12V DC Circulation Water Pump,Car Heating System Circulating Water Pump,20L/min Circulation Water Pump |
||
Application:
1. Automotive climate control system
2. Automotive engine cooling circulation
3. Car engine preheating
4. Heating system(Car Auxiliary heaters&parking heaters)
5. Electric vehicles water circulation system
6. Normal Hot Water Circulation
Electric Motorcycle Cooling System
1. High efficiency ECM brushless DC motor with long life time.
2. Heavy duty work, can sustain 24 hours continuous running.
3. Durable permanent magnetic rotor and high density ceramic shaft.
4. Avanced magnetic driving technology, static-seal without leakage forever.
5. Operating temperature is realized, suitable for extreme outdoor environment.
6. Optimized 3 phase motor high efficiency design, combined with low-resistance cooper wire, achieving large flow and low temperature rise.
7. Applied liquid: pure water, antifreeze solution.
8. Low or no maintenance
9. Low power consumption.
10. PWM signal speed controlling(optional)
11. Reverse polarity protection
12. Dry running protection
13. Over Voltage, over current protection
14. Overload, over temperature protection
Technical Parameters Table:
| No. | Technical Parameters | |
|
1 |
Medium Liquid | Pure water or less than 60% Glycol aqueous solution |
|
2 |
Extreme Medium Temperature | -40℃~120℃ |
|
3 |
Normal Medium Temperature | -40℃~100℃ |
|
4 |
Storage Temperature | -40℃~70℃ |
|
5 |
Flow Rate Range | 20±10%L/min |
|
6 |
Head Range | 2.6±0.5m |
|
7 |
Rated Voltage | DC12V |
|
8 |
Voltage Range | DC9~16V |
|
9 |
Power | 12±10%W |
|
10 |
Rated Current | 1±5%A |
|
11 |
Protection Level | IP67 |
|
12 |
Weight | About 0.3kg(without Bracket) |
|
13 |
Noise | ≤48dB(A) |
|
14 |
Service Life | ＞15000h |
|
15 |
Leakproofness | ≥0.4MPa |
|
16 |
Lead wire Type | Integrated with pump body |
|
17 |
Pump Housing | PPS |
2.1 The pump can be installed vertically or horizontally mounted (see figure 1 ) When installed
vertically, the outlet port should be upward .
2.2 In order to avoid the dry- running (air get stuck in impeller),the water pump outlet port should
be vertical or in the upper of the impeller. (see figure 1 )
2.3 The connected pipe should be vertically mounted (or no elbow in 20cm )to make the air
discharged easily, the outlet pipe should not be used less than 90 degrees elbow (see figure 2).
2.4 Can't use the seawater or other heavy pollution with big grain impurity liquid as the liquid
medium .
Electrical Interfaces:
PWM Signal pulse frequency input range: 1000-10000Hz (PWM Duty cycle control accuracy±1%)
