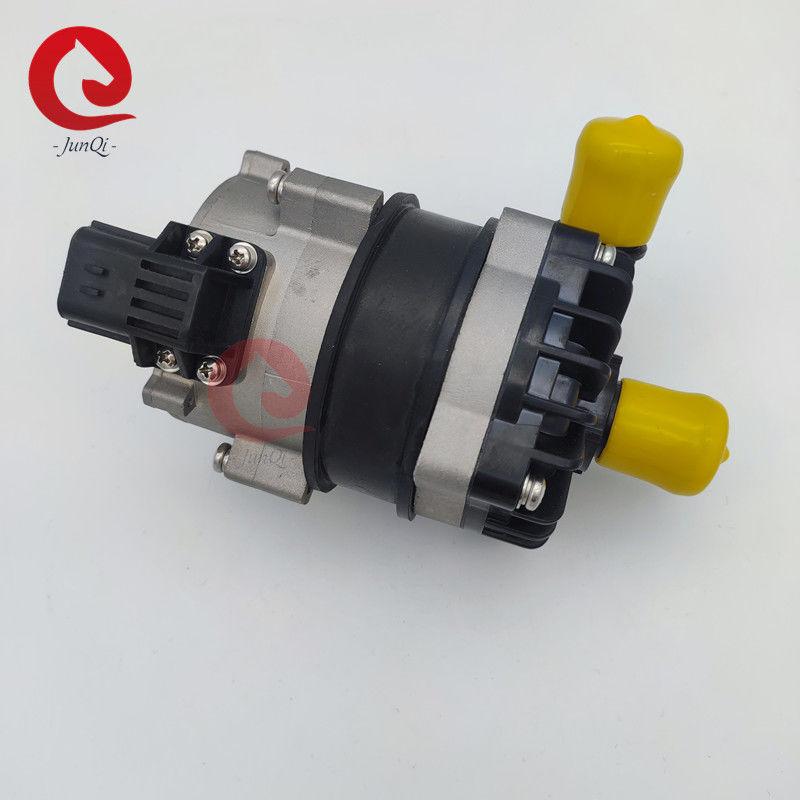

Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min

Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min

  • Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min
  • Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min
  • Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min
  • Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min
Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min
Product Details:
Place of Origin: China
Brand Name: junqi
Certification: IS9001, TS16949,CE
Model Number: DKB80
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotialbe
Packaging Details: suitable for export
Delivery Time: base on order,
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000set/month
Contact Now
Detailed Product Description
Model: DKB80-12A Material: Aluminium Alloy
Voltage: 12VDC Power: 80W
Rated Flow Rate: 1800L/H Max Head: 10M
Application: Hybrid Bus, Electric Vehicles Theory: Centrifugal Pump
Usage: Coolant
High Light:

Electronic Coolant Brushless DC Water Pump

,

Brushless DC Water Pump 12V

,

EV Car Brushless Dc Pump

12V Electronic Coolant Water Pump, Brushless DC Motor Water Pupms For EV Car



Features:


1. Constant power, the voltage is 9 v - 16 v change, pump power constant;
2. Overtemperature protection: when the environment temperature over 100 ℃ (limit temperature), water pump stop, in order         to guarantee the life of the pump, suggest installation position in low temperature or air flow better;
3. Overload protection: when the pipeline has impurities, cause the pump current increases suddenly, the pump stop running;
4. Soft start;
5. PWM signal control functions.



Product Details:



Description 12V 80W Auto Electrical Water Pumps
Model DKB80-12A
Rated Voltage  12V  Voltage Range 9V~16V DC
Medium Temp ≤90℃ Ambient Temp -40℃~+100℃
Noise(dB) ≤50dB Service Life ≥6000hours
Motor Type Brushless DC Motor Warranty 12 Months
Flow Rate Q=1500L/H (6m) Current ≤11.5A(6m)
Waterproofing Grade IP67 OEM Accepted
Application

The New Enery Automotive cooling cycle, Automotive engine Cooling Circultaion,

Heating Vertilation Air Conditioning,Truck Motor Control Cooling Cycle.



Mounting Instruction and Notice:





1~2

Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min 1











External Dimension

Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min 2Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min 3





PWM Chart:

Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min 4

Duty Cycle(%) Description
0≤duty<5% Defult Output(Max Speed)
5%≤duty≤15% PWM mode, halt command
15%<duty≤85% PWM mode, Linear speed regulation range
85<duty<100% PWM mode, Speed limited ( max speed)

Remarks: PWM duty cycle error range:±2%

                PWM voltage: DC24V PWM frequency: 1KHz

Notes:

A: Recommended 10% duty cycle as the stop command

B: Recommended 0%,95% duty cycle as default output mode ( Max speed, PWM disable)





H-Q Curve:

Electronic Coolant Brushless DC Water Pump 12V For EV Car Max Flow 40L/min 5



Applications:



Apply to HEV(Hybrid Electrical Vehicle),EV(Electric Vehicles), trains, ships and other heating circulation and cooling circulation system.
