Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation

Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation

  • Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation
  • Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation
  • Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation
  • Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation
Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation
Product Details:
Place of Origin: China
Brand Name: junqi
Certification: IS9001, TS16949,CE
Model Number: JQ-BLP5009-24V
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotialbe
Packaging Details: suitable for export
Delivery Time: base on order,
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000set/month
Contact Now
Detailed Product Description
Model: JQ-BLP5009-12V Material: PPS
Voltage: 24VDC Power: 17W
Rated Flow Rate: 25L/min, Max Head: 3M
Application: Automotive Industry, Biofuel Industry, Temperature Control, Motorcycle Medium: Antifreeze
Rated Current: 0.7A Outlet Size: 20mm
Structure: Single-stage Pump
High Light:

Turbo Booster BLDC Water Pump

,

24V DC BLDC Water Pump

,

Cooling Circulation Brushless DC Water Pump

24V DC Cooling CIruculation Pump, Turbo Booster Pump JQ-BLP5009-24V BLDC Water Pump For Car Engine Cooling Circulation​





Water Pump Quick Techincal Parameters:

Model JQ-BLP5009-24V
Rated Voltage (V) 24V
Voltage Range (V) 12-30V
Rated Current(A) 0.7A
Rated Head (m) 3m
Rated Flow (L/min) 25L/min
Rated Power (W) 17W
Max Noise (dB) ≤35dB
OD of inlet (mm) 20mm
OD of outlet(mm) 20mm
Protection Level IP67
Insulation Level H
Ambient temperature(℃) -40 to 125℃
Medium Temperature(℃) -40 to 125℃
Medium  Antifreeze
Weight (kg) 0.5kg



Water Pump Features:
1.Centrifugal Pump
2.Magnetic force transmission(shield pump structure)
3.Low Noise ( less than 35dB)
4.High Efficiency DC Brushless Motor, Low power consumption,
high efficiency,Long Service life ( 15000 hours)
5.Single-stage structure
6.With wide range operating temperature
7.Dry-running protection (optional)
8.Locked-rotor protection(optional)



Water Pump Performance Curve and Overall Dimensions:

Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation 0Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation 1

Water Pumps applications:

1.Heating vertilation air conditioning
2. Auto turbocharger water cooling cycle
3. New energy vehicle cooling cycle
4. Motorcycle electronic water pump

Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation 2

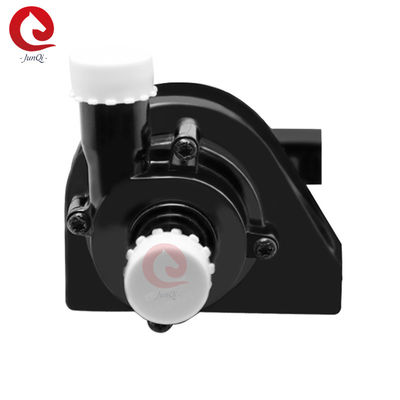

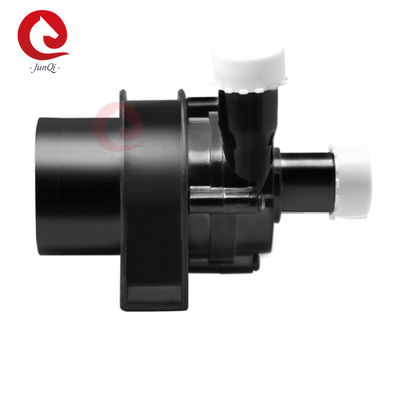

Water Pump View Pictures:

Turbo Booster JQ-BLP5009-24V BLDC Water Pump 24V DC For Car Engine Cooling Circulation 3

FAQ:

Q: How long is your delivery time?

A: Sample order is 7~10 days.

Bulk order is 30~35 days.

If there is pumps in stock, it is 2 days.



Q: How long is your warranty of pump?

A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.



Q: What’s the payment method?

A: Paypal,T/T,



Q: What certificates have your pumps passed?

A: All our products have passed CE, RoHS, Reach.

Parts of pumps met UL.



Q: What certificates have your company passed?

A: Our company has passed IATF16949, ISO9001, ISO14001&OHSAS18001
