12V Brushless DC Mini Centrifugal Water Pump For Car Air Conditioning Circulation

12V Brushless DC Mini Centrifugal Water Pump For Car Air Conditioning Circulation

  • 12V Brushless DC Mini Centrifugal Water Pump For Car Air Conditioning Circulation
  • 12V Brushless DC Mini Centrifugal Water Pump For Car Air Conditioning Circulation
  • 12V Brushless DC Mini Centrifugal Water Pump For Car Air Conditioning Circulation
  • 12V Brushless DC Mini Centrifugal Water Pump For Car Air Conditioning Circulation
12V Brushless DC Mini Centrifugal Water Pump For Car Air Conditioning Circulation
Product Details:
Place of Origin: China
Brand Name: junqi
Certification: IS9001, TS16949,CE
Model Number: JQ-BLP6212-12V
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: USD45-USD55
Packaging Details: suitable for export
Delivery Time: base on order,
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000set/month
Contact Now
Detailed Product Description
Model: JQ-BLP6212-12V Material: PPS
Voltage: 12VDC Power: 55W
Rated Flow Rate: 35L/min, Max Head: 9m
Application: Automotive Industry, Biofuel Industry, Temperature Control, Motorcycle Medium: Antifreeze
Rated Current: 4.6A Outlet Size: 20mm
Structure: Single-stage Pump
High Light:

Brushless DC Mini Centrifugal Water Pump

,

12V Mini Centrifugal Water Pump

,

Brushless DC Water Pump 35L/min

12V Brushless DC Mini Centrifugal Water Pump, Car'S Booster Pump JQ-BLP6212-12V For Car Air Conditioning Circulation





Water Pump Quick Details:

Rated Voltage

(V)

Voltage Range

(V)

Rated Current (A) Rated Head (m)

Rated Flow

(L/min)

Rated Power

(W)

Max Noise dB(A)
12 8~20 4.6 9 35 55 ≤40


Water Pump Features:

1.Centrifugal Pump
2.Magnetic force transmission(shield pump structure)
3.Low Noise ( less than 40dB)
4.High Efficiency DC Brushless Motor, Low power consumption,
high efficiency,Long Service life ( 15000 hours)
5.Single-stage structure
6.With wide range operating temperature
7.Dry-running protection (optional)
8.Locked-rotor protection(optional)

9.PWM speed adjustable(optional)

10. FG Signal output(optional)


Water Pump Performance Curve and Overall Dimensions:

12V Brushless DC Mini Centrifugal Water Pump For Car Air Conditioning Circulation 012V Brushless DC Mini Centrifugal Water Pump For Car Air Conditioning Circulation 1

Water Pump Techincal Parameters:

Model JQ-BLP6212
Rated Voltage (V) 12V
Voltage Range (V) 8-20V
Rated Current(A) 4.6A
Rated Head (m) 9m
Rated Flow (L/min) 35L/min
Rated Power (W) 55W
Max Noise (dB) ≤40dB
OD of inlet (mm) 20mm
OD of outlet(mm) 20mm
Protection Level IP67
Insulation Level H
Ambient temperature(℃) -40 to 125℃
Medium Temperature(℃) -40 to 120℃
Medium Antifreeze
Weight (kg) 0.68kg



Water Pumps applications:

1.Heating vertilation air conditioning
2. Auto turbocharger water cooling cycle
3. New energy vehicle cooling cycle
4. Motorcycle electronic water pump

12V Brushless DC Mini Centrifugal Water Pump For Car Air Conditioning Circulation 2

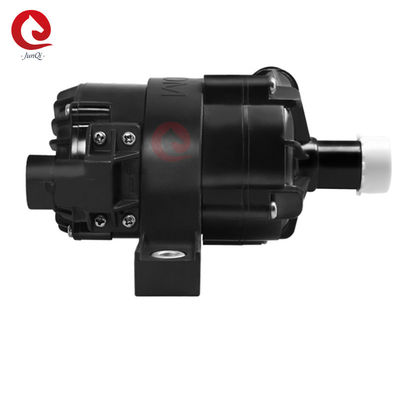

Water Pump View Pictures:

12V Brushless DC Mini Centrifugal Water Pump For Car Air Conditioning Circulation 3

FAQ:

Q: How long is your delivery time?

A: Sample order is 7~10 days.

Bulk order is 30~35 days.

If there is pumps in stock, it is 2 days.



Q: How long is your warranty of pump?

A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.



Q: What’s the payment method?

A: Paypal,T/T,



Q: What certificates have your pumps passed?

A: All our products have passed CE, RoHS, Reach.

Parts of pumps met UL.



Q: What certificates have your company passed?

A: Our company has passed IATF16949, ISO9001, ISO14001&OHSAS18001
