To Create Value For Customers. Integrity and Win-Win.
 |
| Place of Origin: | China |
| Brand Name: | junqi |
| Certification: | IS9001, TS16949,CE |
| Model Number: | JQ-BLP6208-24V |
| Minimum Order Quantity: | 5 sets |
|---|---|
| Price: | Negotialbe |
| Packaging Details: | suitable for export |
| Delivery Time: | base on order, |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000set/month |
| Model: | JQ-BLP6208-24V | Material: | PPS |
|---|---|---|---|
| Voltage: | 24VDC | Power: | 55W |
| Rated Flow Rate: | 35L/min, | Max Head: | 9M |
| Application: | Automotive Industry, Biofuel Industry, Temperature Control, Motorcycle | Medium: | Antifreeze |
| Rated Current: | 2.4A | Outlet Size: | 22mm |
| Structure: | Single-stage Pump | ||
| High Light: | 35LPM Brushless DC Water Pump,24V 55W Brushless DC Water Pump |
||
Water Pump Quick Techincal Parameters:
|
Rated Voltage V |
Voltage Range V |
Rated Current A |
Max Head m |
Max Flow L/min |
Rated Poweer W |
Max Noise dB(A) |
| 24 | 12-30 | 2.4 | 9 | 35 | 55 | ≤40 |
Water Pump Features:
1.Centrifugal Pump
2.Magnetic force transmission(shield pump structure)
3.Low Noise
4.High Efficiency DC Brushless Motor, Low power consumption,
high efficiency,Long Service life ( 15000 hours)
5.Single-stage structure
6.With wide range operating temperature
7.Dry-running protection (optional)
8.Locked-rotor protection(optional)
24V Water Pump technical parameters:
| Model | JQ-BLP6208-24V |
| Rated Voltage (V) | 24V |
| Voltage Range (V) | 12-30V |
| Rated Current(A) | 2.4A |
| Rated Head (m) | 9m |
| Rated Flow (L/min) | 35L/min |
| Rated Power (W) | 55W |
| Max Noise (dB) | ≤40dB |
| OD of inlet (mm) | ∅22mm |
| OD of outlet(mm) | ∅22mm |
| Protection Level | IP67 |
| Insulation Level | H |
| Ambient temperature(℃) | -25 to 125℃ |
| Medium Temperature(℃) | -25 to 120℃ |
| Medium | Antifreeze |
| Weight (kg) | 0.63kg |
Water Pump Performance Curve and Overall Dimensions:
Water Pumps applications:
1.Heating vertilation air conditioning
2. Auto turbocharger water cooling cycle
3. New energy vehicle cooling cycle
4. Motorcycle electronic water pump

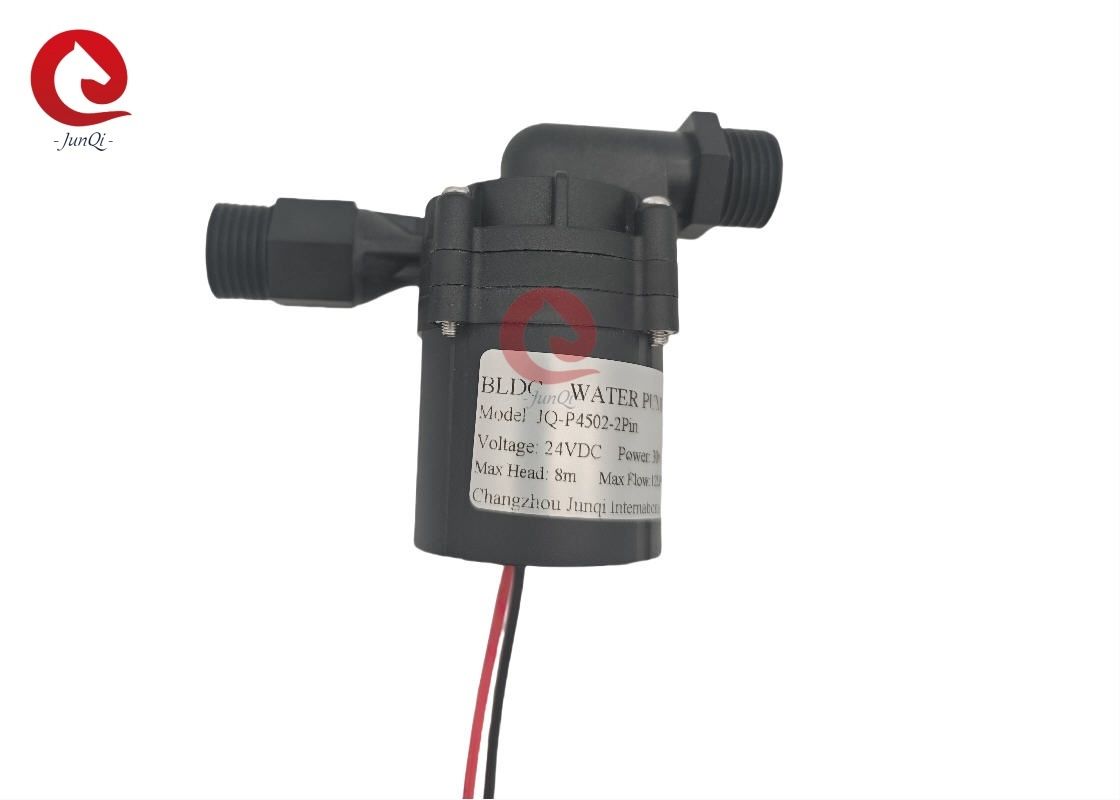

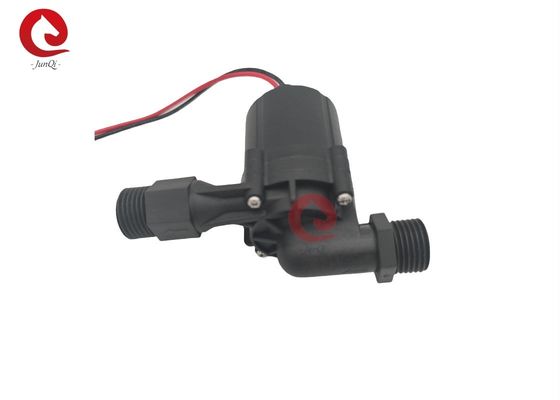

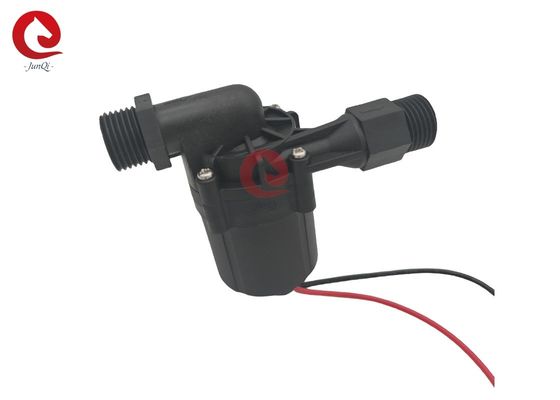

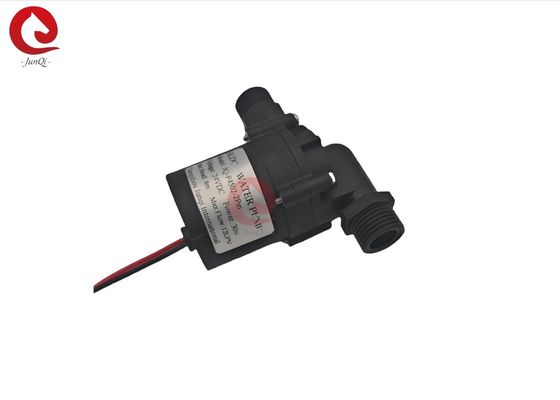

Water Pump View Pictures:
FAQ:
Q: How long is your delivery time?
A: Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
Q: How long is your warranty of pump?
A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.
Q: What’s the payment method?
A: Paypal,T/T,
Q: What certificates have your pumps passed?
A: All our products have passed CE, RoHS, Reach.
Parts of pumps met UL.
Q: What certificates have your company passed?
A: Our company has passed IATF16949, ISO9001, ISO14001&OHSAS18001
