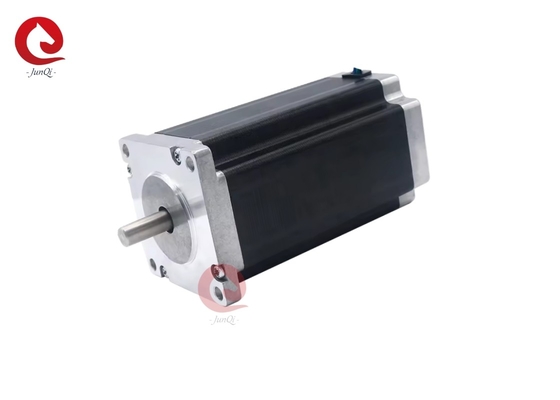

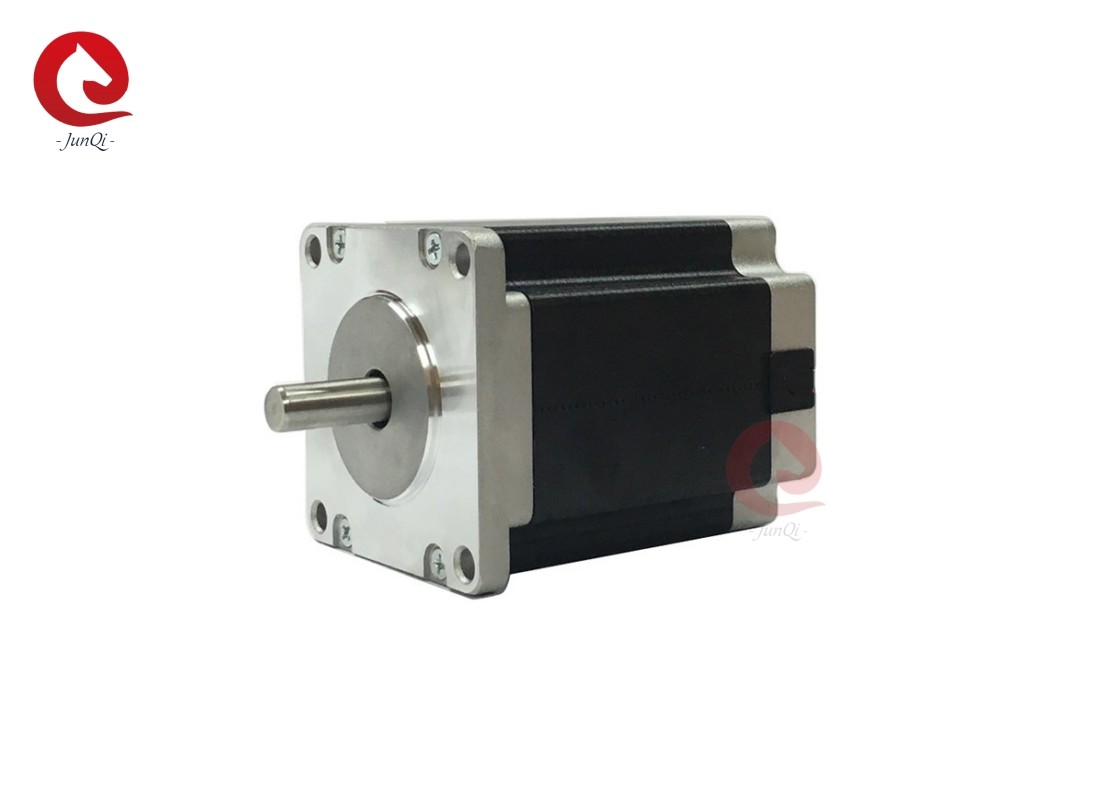

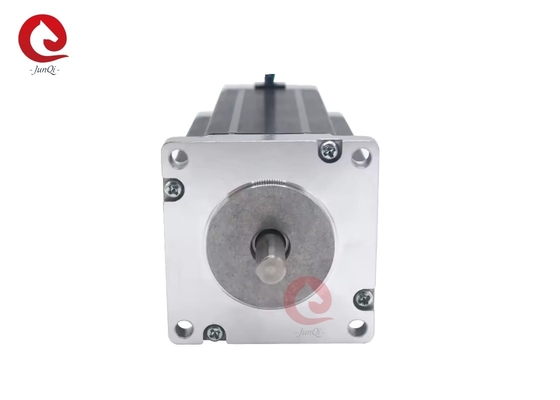

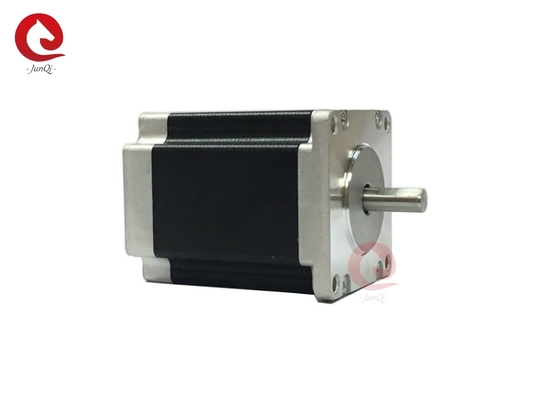

3 Phase 60mm Nema24 1.5A 1.1Nm Hybrid Stepper Motor For CNC Machine Moteur

3 Phase 60mm Nema24 1.5A 1.1Nm Hybrid Stepper Motor For CNC Machine Moteur

  • 3 Phase 60mm Nema24 1.5A 1.1Nm  Hybrid Stepper Motor For CNC Machine Moteur
  • 3 Phase 60mm Nema24 1.5A 1.1Nm  Hybrid Stepper Motor For CNC Machine Moteur
  • 3 Phase 60mm Nema24 1.5A 1.1Nm  Hybrid Stepper Motor For CNC Machine Moteur
  • 3 Phase 60mm Nema24 1.5A 1.1Nm  Hybrid Stepper Motor For CNC Machine Moteur
3 Phase 60mm Nema24 1.5A 1.1Nm  Hybrid Stepper Motor For CNC Machine Moteur
Product Details:
Place of Origin: China
Brand Name: JEUNKEI
Certification: CE, Rohs
Model Number: JQ603P1277-1503A
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs ( sample available)
Price: Negotiable
Packaging Details: Suite for export
Delivery Time: depend on the order quantity /Negotiable
Payment Terms: T/T, , Western Union, Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Model No.: JQ603P1277-1503A Type: 1.2Degree Nema24 Stepper Motor
Nema: 24 Size: 60mm
Current/Phase: 1.5A Holding Torque: 1.1N.m
Body Length: 77mm Weight: 1.3kg
Highlight:

3 Phase hybrid stepper motor

,

60mm hybrid stepper motor

,

Nema24 hybrid stepper motor

3-Phase 60mm Nema24 1.5A, 1.1Nm Hybrid Stepper Motor For CNC Machine Moteur

General Specification:

Item Specifications
Step Angle 1.2°
Step Angle Accuracy ±5%(full step, no load)
Radial Play 0.02mm@450g
Axial Play 0.08mm@450g
Max.Radial Force 75N (20mm from the flange)
Max.Axial Force 15N
Dielectric Strength 600VAC/1S
Insulation Resistance 100MΩ,500VDC
Ambient Temperature -20℃~+50℃
Insulation Class Class B



Electrical Specifications:



Model No. Current
/Phase
Resistance
/Phase
Inductance
/Phase
Holding Torque Detent Torque # of leads Rotor inertia Length Weight
Single shaft A Ω mH N.m N.m # g-cm2 mm kg
JQ603P1253-1503A 1.5 4.1 9.5 0.8 0.07 3 260 53.5 0.8
JQ603P1277-1503A 1.5 4.4 10 1.1 0.09 3 460 77.5 1.3



Mechanical Size:

3 Phase 60mm Nema24 1.5A 1.1Nm  Hybrid Stepper Motor For CNC Machine Moteur 0

Wiring Diagram:

3 Phase 60mm Nema24 1.5A 1.1Nm  Hybrid Stepper Motor For CNC Machine Moteur 1



Motor Pull out Torque Curve:



3 Phase 60mm Nema24 1.5A 1.1Nm  Hybrid Stepper Motor For CNC Machine Moteur 2
