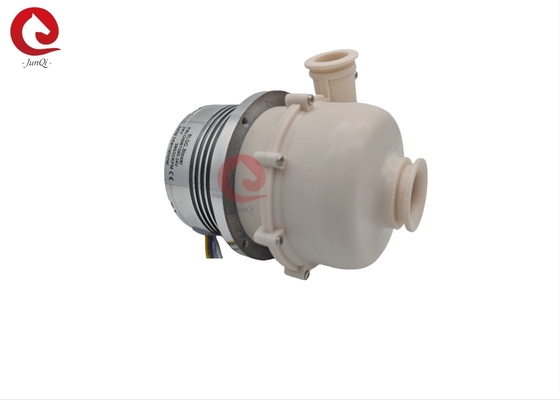

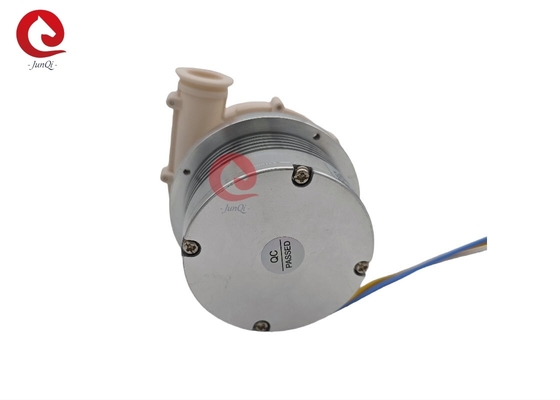

flowJUNQI 23kPa Air Pressure 24VDC Brushless DC Blower Fan For Hand Dryer
Techinical Parameters:
| Model |
OWB7095-24V |
| Max.continuous operationg state |
| Rated voltage |
24VDC |
| Rated current |
12A |
| Power consumption |
288W |
| Free blowing speed |
38500rpm |
| Max.air pressure(Flow=0) |
23 |
| Power@Max.pressure |
100W |
| Speed@Max.pressure |
45150rpm |
| Max.air flow(Pressure=0) |
680L/min |
| Power@Max.flow |
260W |
| Speed@Max.flow |
40830rpm |
| Min air flow |
35L/min |
Working Performance Curve:
Dimensions:
Air Blower Applications:
Air Purify System, Soiless Culture, Fuel Cell, Sprayer, Air Cushion Machine, Dust Catcher, Cooling System, Hand Dryer, Plastuc Bonding Machine, CPAP, BIPAP, Sputum Aspirator, Vacuum Cleaner, Seeding Machine, Industrial Sewing Machine, Intelligent Toilet, Soldering Device, Polishing Device, Car Vacuum, Truck Emission Improve System, Medical equipment, Beauty air cooler, Sampling instrument, Express air cushion machine, Expectorant vest....
FAQ:
Q: Can we connect this centrifugal air blower directly onto power source?
A: This blower fan is with BLDC motor inside and it needs a controller board to run.
Q: What kind of power source shall we use to drive this blower fan?
A: Generally, our customers use 24vdc switching power supply or Li-on battery.

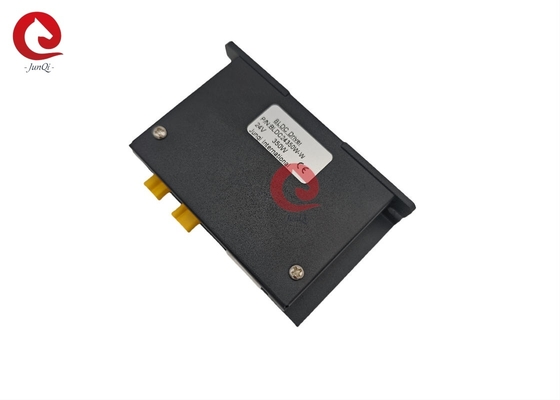

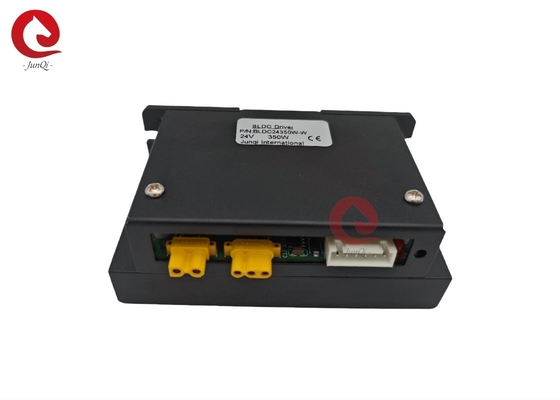

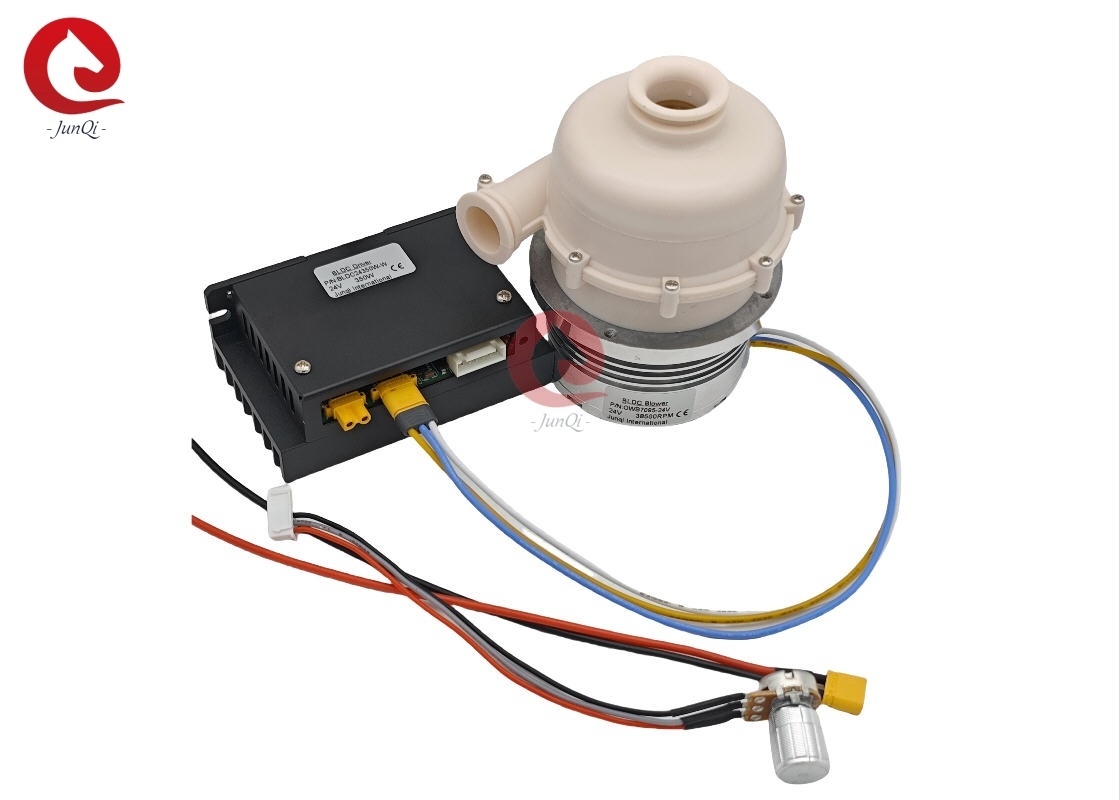

Q: Do you also sell controller board for this blower fan?
A: Yes, we can supply adapted controller board for this blower fan.
Q: How to change impeller speed if we use your controller board?
A: You can use 0~5v or PWM to change speed. Our standard controller board is also with a
potentiometer to change speed conveniently.
Q: What is the MTTF of this centrifugal air blower?
A: MTTF of this centrifugal air blower is 20,000+ hours under 25 C degree.
Q: Can we use this centrifugal air blower to suct water?
A: This blower fan can not be used to suck water. If you need to suck water, you can ask us to
choose proper item for this special working condition.
Q: Can we use this centrifugal air blower to suck dust directly?
A: This blower fan can not be used to suck dust directly.If you need to suck dust, you can ask
us to choose proper item for this special working condition.
Q: What can do if the working condition is dirty?
A: A filter is strongly recommended to assemble onto the the inlet of the blower fan
Q: How to decrease the noise of the blower?
A: Many of our customers use foam, silicone to fill between blower fan and machine to insulate
the blower noise.
For more informantion, please contact with us via email: ivanzhu@junqitrading.com
