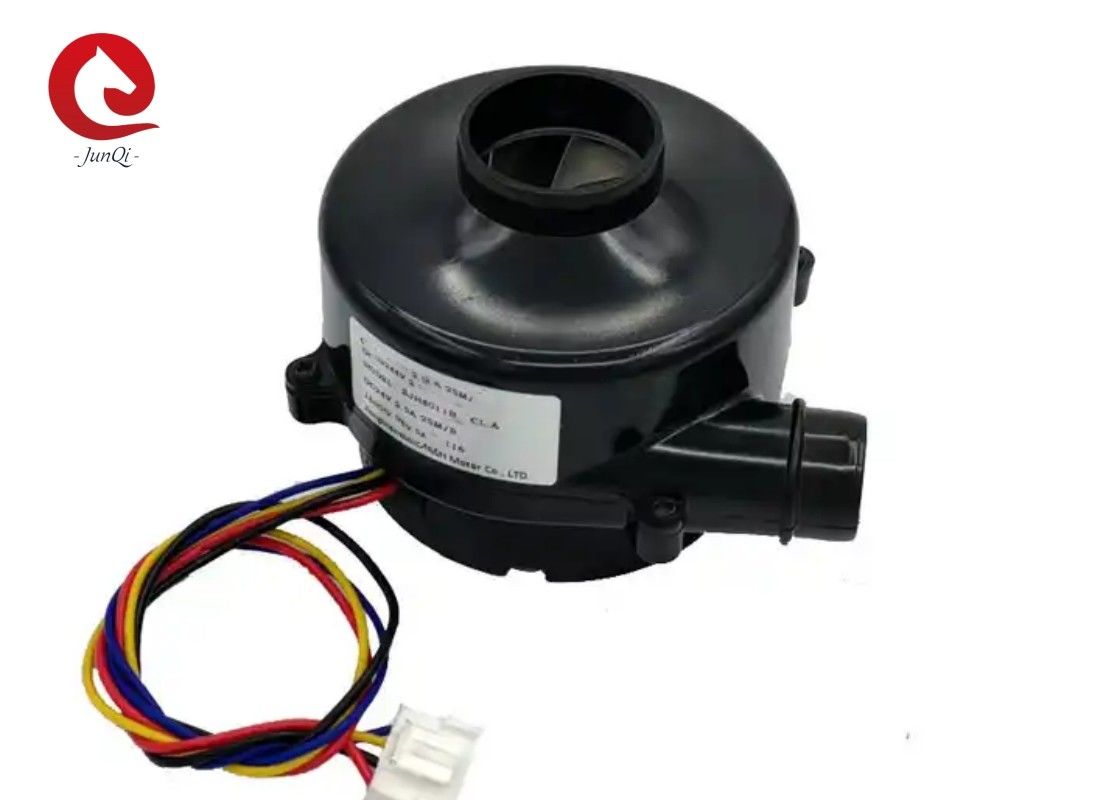

24v High Speed Brushless DC Blower

Product Details:

Place of Origin:	China
Brand Name:	junqi
Certification:	CE,Rosh
Model Number:	OWB-4011

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton+packing foams
Delivery Time:	5-30days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per day

Contact Now

Detailed Product Description

Product Name:	BLDC Brushless Motor	Rated Voltage:	24V DC
Rated Current:	2.5A	Motor Speed:	17000 RPM
Driving Motor:	3 Phase Brushless DC Motor	Bearing:	NMB Ball Bearing
Pressure:	2.8KPA	Net Weight:	360g
Service Life:	6000 Hours
Highlight:	18000RPM Brushless DC Blower , PWM High Speed DC Blower , 1.4A Brushless DC Blower

High speed 24VDC brushless air blower for hand dryer,cooling equipment,blower fan,with PWM control BLDC blower fan

OWB-4011 series DC brushless air blower

Brushless DC Air Blower Descriptions:
24v High Speed Brushless DC Blower 0

Overall dimensions
24v High Speed Brushless DC Blower 7

Wiring diagram

Pin 1	Blue	FG
Pin 2	Yellow	PWM
Pin 3	Black	GND
Pin 4	Red	24VDC

Attentions
1: Do not working under the max air pressure, the air flow is too small at max air pressure, and it's not safe for using.
2: Add a filter attach to the intake makes the blower bearing longer service life.
3: The correct rotation direction is CCW
4: Do not use the blower in High temperature ,high humidity, high magnetic fields
5: Please use suitable power supply for the blower.
