To Create Value For Customers. Integrity and Win-Win.
 |
| Place of Origin: | China |
| Brand Name: | JEUNKEI |
| Certification: | TS16949, ISO9001 |
| Model Number: | JP200-2 |
| Minimum Order Quantity: | 5PCS( samples available) |
|---|---|
| Price: | usd150-usd215 |
| Packaging Details: | suitable for export |
| Delivery Time: | base on order quantity , to be negotiated |
| Payment Terms: | T/T, paypal. |
| Supply Ability: | 3000pcs per month |
| Name: | Brushless DC Blower Fan | Rated Voltage: | 24VDC |
|---|---|---|---|
| Voltage Range: | 18~32VDC | Rated Current: | 12A |
| Model: | JP200-2 | Rated Flow: | 2800L/h |
| Head: | 16m | Power: | 290W |
| Weight: | 1.8kg | ||
| High Light: | 16m 24v dc brushless water pump,2800L/h brushless water pump 12v,290W 12 volt brushless water pump |
||

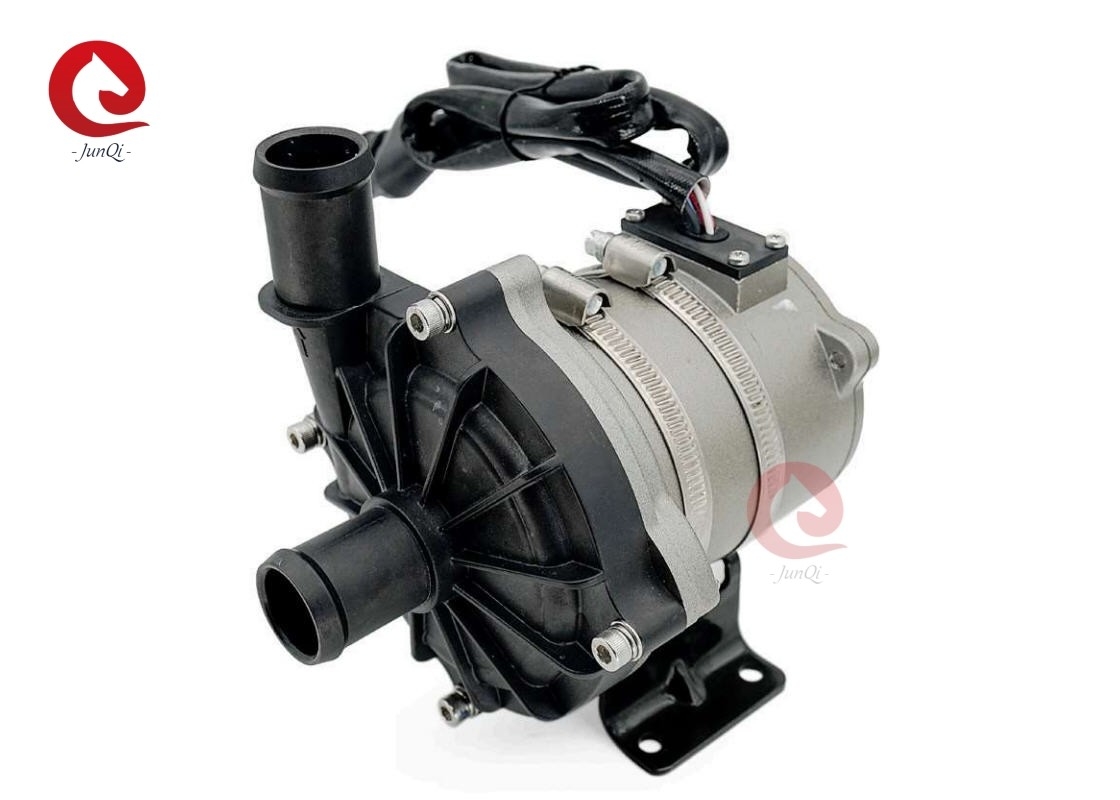

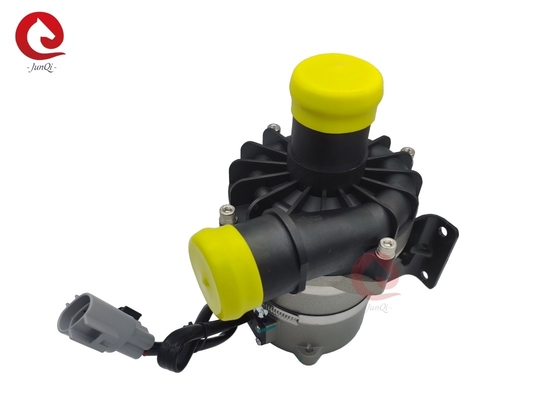

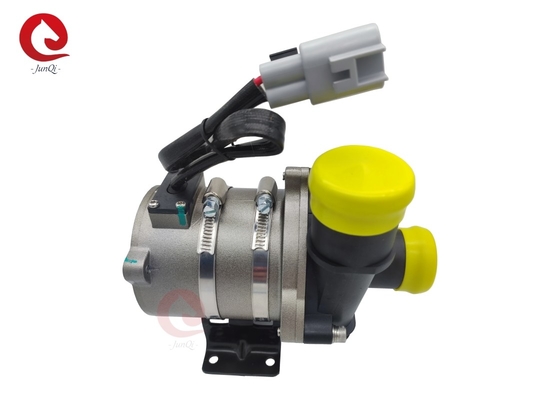

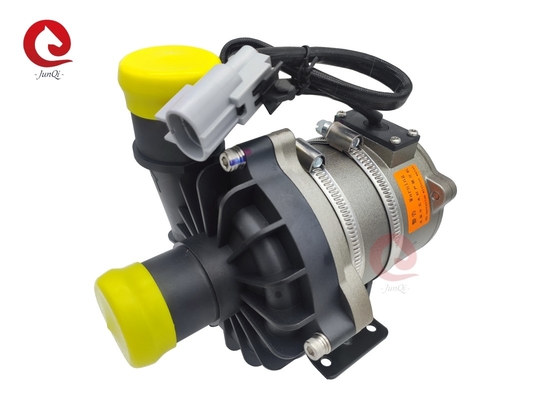

EWP of JP200-2
Widely used in hybrid bus, hybrid passenger car, electric vehicles, trains, ships and other heating and cooling circulation system.
Technical Parameters:
Rated Voltage: DC24V
Rated Current: 12A
Operating Voltage: DC18~32V
Working environment: -40℃~85℃
Special handling ambient temperature: -45℃~105℃
Working Medium: 50% glycol aqueous solution( preferably organic type, particle≯0.35, content≯0.1g/L)
Performance parameters: Q=2800L/h, H=16m, P=290W±10W
Protection level: IP68
Working Noise: ≤52dB
Working Life: ≥20000h
Weight: 1.8kg (including bracket)
Protection function: Blocking, reverse connection, Low/ over voltage, over current, idling, over temperature.
Pump Choice:
| Model |
Head Range |
Flow Range |
inlet/ outlet |
Voltage | Power |
Regulating/ Fixed Speed |
Communication mode |
PIN | Install |
| JP200-2 | 10~23m | 600~2500L/h |
38mm 25mm |
12V/24V | ＜300W | Optional | PWM/CAN | 2/3/4 | clamp/base |
Notes: please tell us your needing parameter request. we will recommend a suitable pump of this series pump for you.
P-Q Performance Curve:
Dimensions(mm):
Features:
1. Positive and negative pole wrong connection protection function
2. Soft start protection, low start-up current
3. Over current and low current protection
4. Blocking prtection
5. Brushless DC motor, efficiency up to 90%
6. Closed impeller structure, hydraulic efficiency of more than 60%
7. Low Noise.
