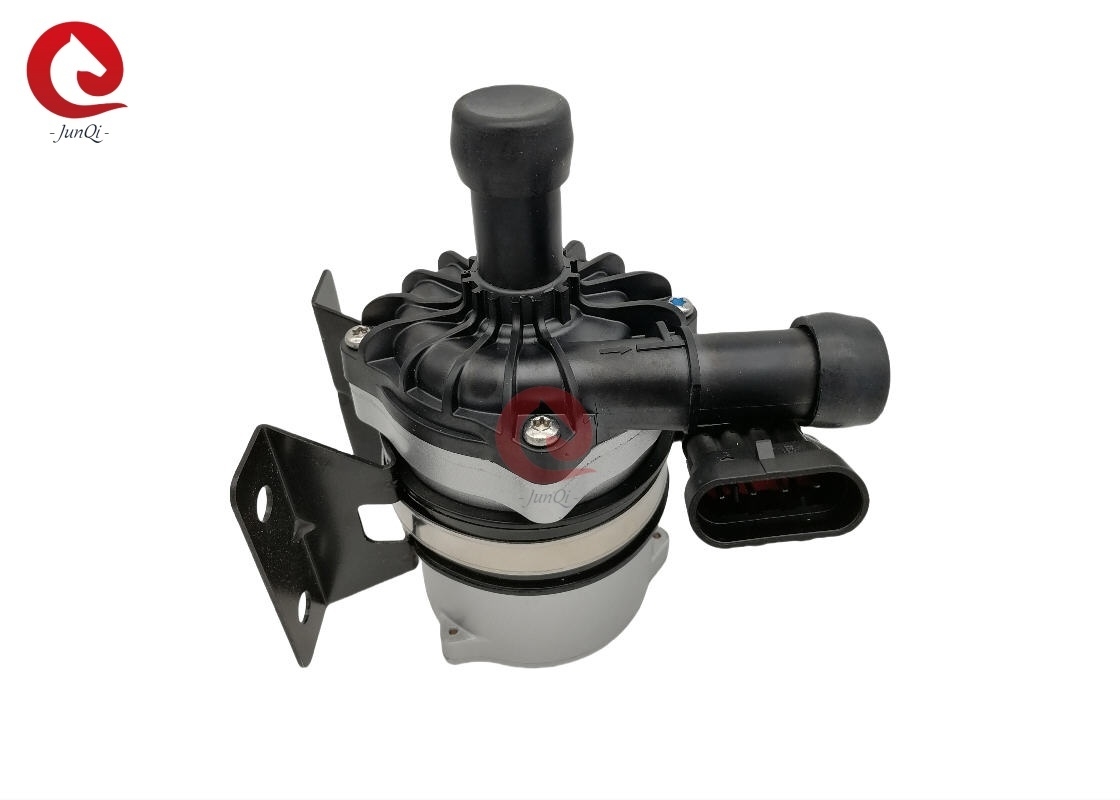

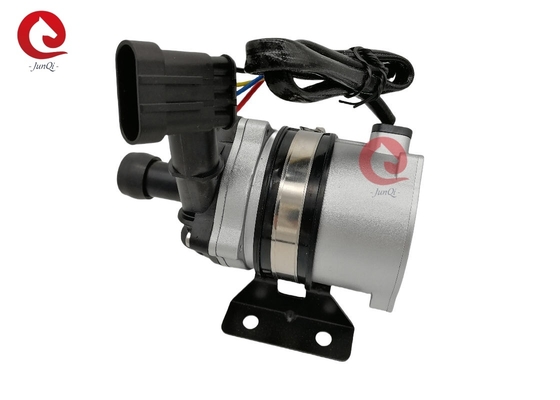

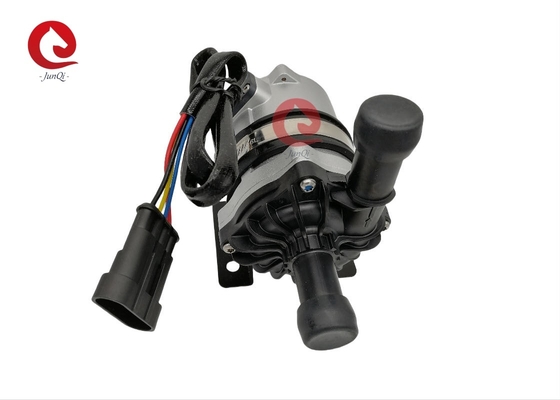

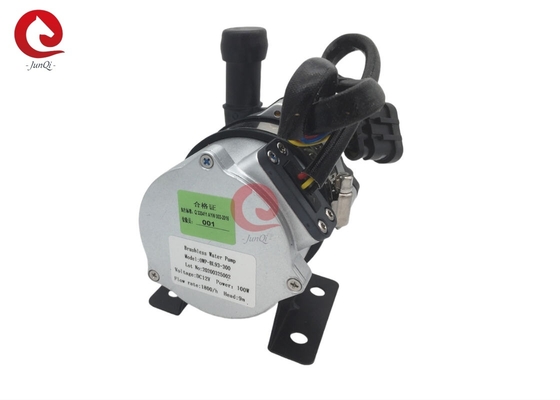

24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump

24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump

  • 24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump
  • 24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump
  • 24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump
  • 24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump
24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump
Product Details:
Place of Origin: China
Brand Name: junqi
Certification: IS9001, TS16949,CE
Model Number: OWP-BL93-301
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotialbe
Packaging Details: suitable for export
Delivery Time: base on order,
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000set/month
Contact Now
Detailed Product Description
Model: OWP-BL93-301 Material: Aluminium Alloy
Voltage: 24VDC Power: 100W
Rated Flow Rate: 1800L/H, Max Head: 9M
Application: Hybrid Bus, Electric Vehicles Usage: Coolant
High Light:

24VDC Brushless DC Motor Water Pump

,

100W BLDC Water Pump

,

100W Brushless DC Motor Water Pump

OWP-BL93-301 electric water pump 24V DC 1800L/M, H=9M, 100W BLDC water pump with PWM control

Boosting/circulation/Variable-frequency/Low-noise/shield pump/PWM control/ Fault feedback





OWP-BL93-301 100W BLDC Water Pump With PWM Control And Error Diagnostics colant pump,glycol pump,bldc water pump

■ Applications
Widely used in hybrid bus, hybrid passenger car, electric vehicles, trains, and ships and other heating and cooling circulation system.

■ Features
◆Magnetic force transmission (shield pump structure)Centrifugal pump
◆High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
◆With wide range operating temperature
◆PWM signal speed controlling
◆With constant flow controlling
◆Reverse polarity protection
◆Dry running protection
◆Over Voltage, over current protection
◆Overload, over temperature protection

■ Technical description (related parts in contact with the liquid)
Pump head housing: PPS+GF
Impeller: PPS+GF
Shield cavity: PPS+GF
Shaft sleeve: Carbon resin composite materials
Shaft: stainless steel shaft
Magnet housing: nylon plastic capsulation
Seal ring: EPDM

■ Driving device (Including motor)
Driving electromagnet: nylon plastic capsulated magnet
Screws and nuts: SUS 304 stainless steel
Driving Motor : brushless motor
Motor wire frame :PPA GF
Pump housing: Die-casting aluminum case with sandblasting and impregnation treatment

Bracket: Steel with powder coating
Bracket hoop: US 304 stainless steel+ Damping rubber ring
Waterproof based on IP68 rating (en60529)
Connector model: AMP282106-1(matched Plug AMP282088-1)
Nozzle diameter:22.4mm (inner diameter:16mm)

Model Specifications
OWP-BL93-301 (24VDC)
Mounting instruction
OWP-BL93-300 series pumps are centrifugal pumps which require pre-filled,
The pump installed in the lowest position of the system to ensure that the impeller is always immersed in the liquid, or pre-filled the pump before power on .
1: Pump should not be dry-running, even though it can dry-running for 30 seconds (after 30 seconds dry-running, it will automatically stop), Dry running will makes noise, also increasing abrasion to the shaft and shaft sleeve.

2:Use the recommended diameter pipe connecting the pump inlet, if you use a smaller diameter hose pump inlet, Due to the negative pressure in the pump, the outside air easier enter to the pump through the pipeline, it will make the pump performance degradation, and also the air bubbles make damage to the pump.

3: As viewed from the pump inlet direction, the impeller rotates clockwise (see the arrow on the outlet port).

4: The pump can be installed vertically or horizontally mounted (see figure 1 ) When installed vertically, the outlet port should be upward .

5:In order to avoid the dry- running (air get stuck in impeller),the water pump outlet port should be vertical or in the upper of the impeller. (see figure 1 )

6: The connected pipe should be vertically mounted (or no elbow in 20cm )to make the air discharged easily, the outlet pipe should not be used less than 90 degrees
Elbow (see figure 2).

7: Can't use the seawater or other heavy pollution with big grain impurity liquid as the liquid medium .
24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump 0
Temperature parameter
Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)
Working ambient temperature: -40℃ to +85℃ (-40°F to +185°F) Humidity ≤90%
Storage temperature: -40℃ to +70℃ (-40°F to +158°F) (up to 100 ℃, but it will shorten the service life)
System pressure
-0.2 to 2.5 bar ( 100℃ (212°F).
The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient temperature.
Voltage range
Rated 12V water pump, workable range 9V - 16V
Rated 24V water pump, workable range 18V - 30V
Although the motor can be used in a wide range of voltage and temperature, but excessive or too low voltage and temperature will affect the service life of the motor, the pump can not be exposed to thermal radiation ambient.

Medium liquid: pure water, liquid mixture (Water with below 60% glycol)


Electrical parameter

Working Voltage

(VDC)

Rated power

(W)

Rated flow

(L/H)

Dimensions

(mm)

Weight

(g)

18-30V(24V)

100W Q=1800L/H H=9M 148*90*132 1.12KG









Connector model and the corresponding electrical properties (see figure 3):

AMP282106-1 1 (Black) 2 (Yellow) 3 (Blue) 4 (Black)
(matched Plug
AMP282109-1)
GND Fault feedback PWM +24V







24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump 1
PWM character
24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump 2



Duty Cycle Description Remark:
1:PWM duty cycle metrical error 2%
2:PWM voltage:24VDC/12VDC(same as pump voltage)
frequency:50-1000KHz
3: Recommended PWM stop duty:10%
4: Recommended 0% duty as PWM disconnect
0%≤duty≤10% Stop state
11%≤duty≤55% Min speed running
56%≤duty≤90% PWM mode
(Linear speed control range)
91%≤duty≤100% Max speed running


24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump 3
Attentions
1. Working ambient temperature:-40℃--85℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.
2.The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.
4. Please use the pump far from the dusty environment, the dust is harmful to reduce the service life
5. Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump
Performance parameter
24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump 4

  • External dimension
  • 24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump 5
  • 24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump 6
  • 24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump 7



Product Tags:heavy duty electric water pump  electric engine water pump

24V 100W Brushless DC Motor Water Pump PWM Control Glycol Error Diagnostics Colant Pump 8
