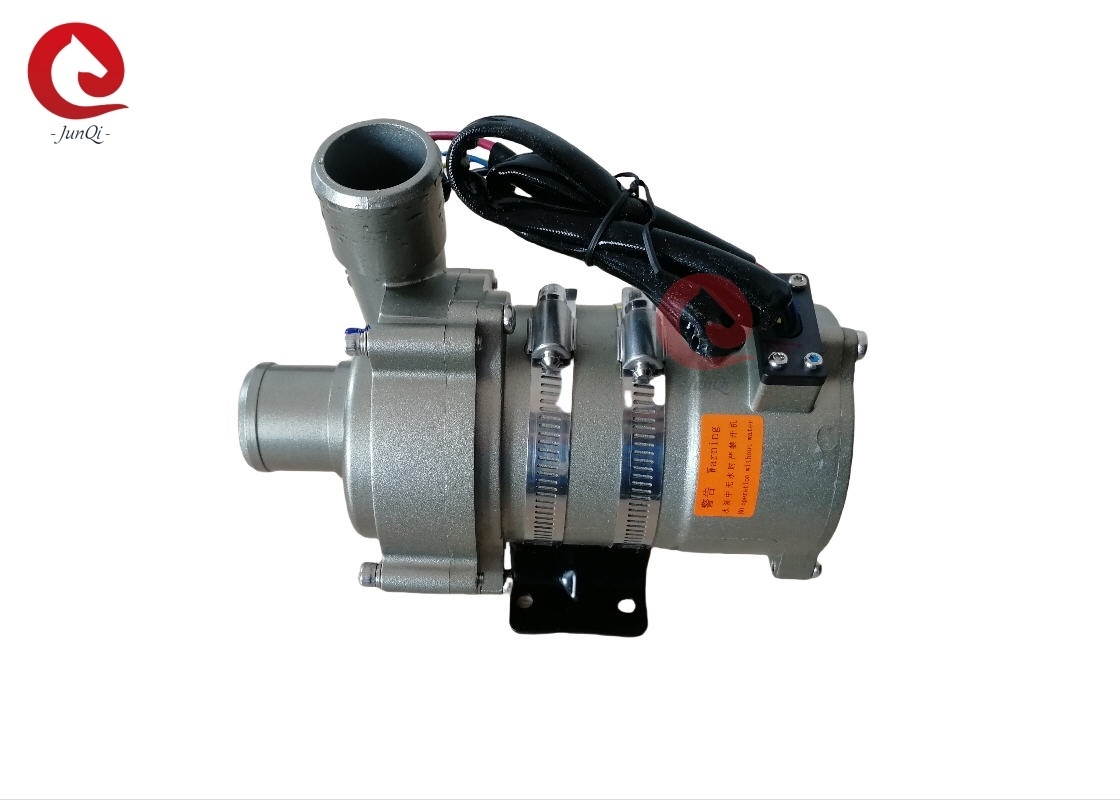

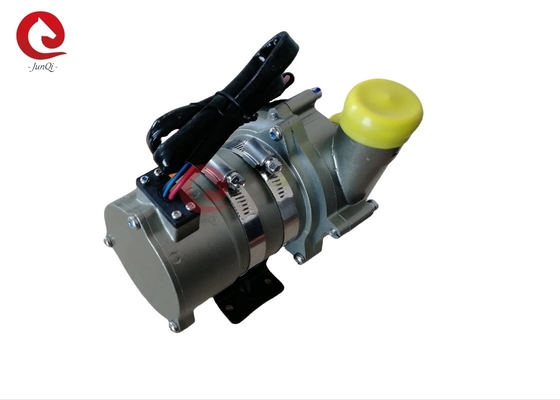

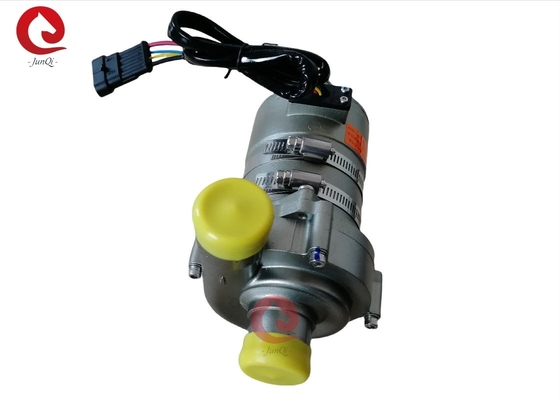

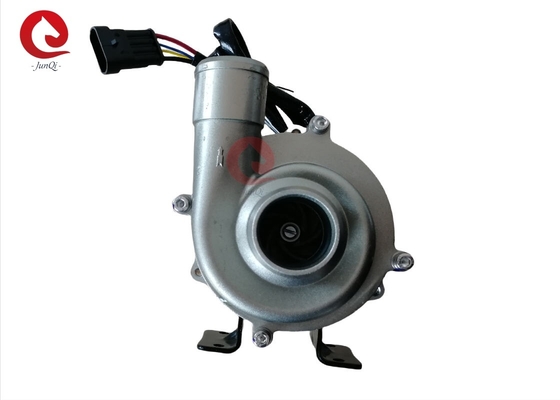

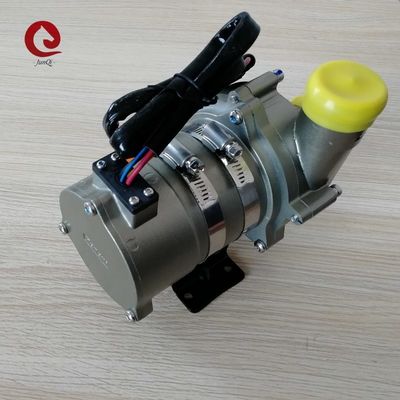

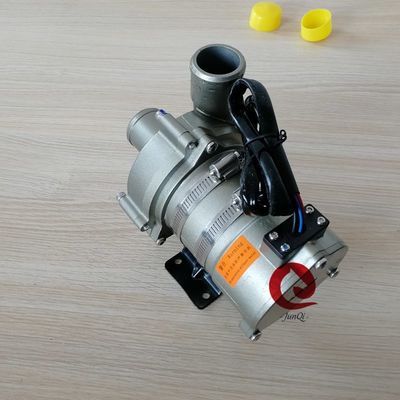

240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus

240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus

  • 240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus
  • 240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus
  • 240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus
  • 240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus
  • 240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus
240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus
Product Details:
Place of Origin: China
Brand Name: junqi
Certification: IS9001, TS16949,CE
Model Number: OWP-7000KL67
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotialbe
Packaging Details: suitable for export
Delivery Time: base on order,
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000set/month
Contact Now
Detailed Product Description
Model: OWP-7000KL67 Material: PPS+GF, Aluminum Alloys
Voltage: 24VDC ( 18V-32VDC) Power: 240W
Rated Flow Rate: 2800L/H Max Head: 16M
Application: Hybrid Bus, Electric Vehicles IP Grade: IP68
Life: ≥20000h Noise: ≤65dB
Highlight:

240W High Pressure Water Pump

,

2800L/H Electric Water Transfer Pump

,

16M High Pressure Water Pump

Brushless DC motor centrifugal pump DC 24V 300W heavy duty electric water pump for electric bus, truck battery and controller cooling with PWM

OWP-7000KL67 300W heavy duty electric water pump for electric bus/truck battery and controller cooling system







■ Applications

Widely used in hybrid bus, hybrid passenger car, electric vehicles, trains, ships and other heating and

cooling circulation system.

■ Features

◆Centrifugal pump

◆Magnetic force transmission

◆High efficiency brushless DC motor, low power consumption, high efficiency, long service life.

◆With wide range operating temperature

◆PWM signal speed controlling(optional)

◆Diagnostic signal output(optional)

◆With constant flow controlling

◆Reverse polarity protection

◆Dry running protection

◆Over Voltage, over current protection

◆Overload, over temperature protection

■ Technical description (related parts in contact with the liquid)

Pump head housing: Die casting aluminum alloys

Impeller: PPS+GF

Shield cavity: PPS+GF

Shaft sleeve: carborundum composite materials

Shaft: stainless steel(3CR14) shaft

Magnet housing: PPS plastic capsulation

Seal ring: EPDM

■ Driving device (Including motor)

Driving rotor: PPS plastic capsulated magnet

Screws and nuts: SUS 304 stainless steel

Driving Motor : brushless motor

Motor wire frame :PPA GF

Pump housing: Die-casting aluminum case with sandblasting and anodizing +PE powder coating..

Bracket: steel

Bracket hoop: US 304 stainless steel

Waterproof based on IP67 rating (en60529)

Connector model: AMP282104-1 (matched Plug AMP282109-1)

Nozzle diameter:40mm (1.5 inch)

■ Mounting instruction

OWP-7000KL67 series pumps are centrifugal pumps which require pre-filled,

The pump installed in the lowest position of the system to ensure that the impeller is always

immersed in the liquid, or pre-filled the pump before power on .

1: Pump should not be dry-running, even though it can dry-running for 15 minutes (after 15

minutes dry-running, it will automatically stop), Dry running will makes noise, also increasing

abrasion to the shaft and shaft sleeve.

2: Use the recommended diameter pipe connecting the pump inlet, if you use a smaller diameter

hose pump inlet, Due to the negative pressure in the pump, the outside air easier enter to the

pump through the pipeline, it will make the pump performance degradation, and also the air

bubbles make damage to the pump.

3: As viewed from the pump inlet direction, the impeller rotates clockwise (see the arrow on

the outlet port).

4: The pump can be installed vertically or horizontally mounted (see figure 1 ) When installed

vertically, the outlet port should be upward .

5: In order to avoid the dry- running (air get stuck in impeller),the water pump outlet port should

be vertical or in the upper of the impeller. (see figure 1 )

6: The connected pipe should be vertically mounted (or no elbow in 20cm )to make the air

discharged easily, the outlet pipe should not be used less than 90 degrees elbow (see figure 2).

7: Can't use the seawater or other heavy pollution with big grain impurity liquid as the liquid

medium .


240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus 0





Temperature parameter

Medium liquid temperature: -40℃ to +85℃ (-40°F to + 185°F)

Working ambient temperature: -40℃ to +120℃ (-40°F to +248°F)

Storage temperature: -40℃ to +70℃ (-40°F to +158°F)

(up to 100 ℃, but it will shorten the service life)

■ System pressure

-0.2 to 2.5 bar ( 100℃ (212°F).

The service life is more than 20,000 hours based on the rated voltage and 36℃(86°F) ambient

temperature.

■ Voltage range

Rated 24V water pump, workable range 18V - 32V

Although the motor can be used in a wide range of voltage and temperature, but excessive or too

low voltage and temperature will affect the service life of the motor, the pump can not be

exposed to thermal radiation ambient.

Medium liquid: liquid mixture (Water with below 60% glycol)

■ Electrical parameter

Working Voltage

(VDC)

Rated Power

(W)

Rated Flow

(L/H)

Dimensions

(mm)

Weight

(g)

24V(18V-32V)

240W

Q=2800L/H,

H≥16M

190*90*157

2200g



Connector model and the corresponding electrical properties (see figure 3):

AMP282104

(Matched Plug AMP282109-1)

1

2

+24V

GND

240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus 1

Wire thickness

The longest wire used *



24V

1.5 mm²

16m

2.5 mm²

25m

3 mm²

31m

4 mm²

40m




Recommended Wire size is (Based on 3% voltage drop)
* The length of the wire means the distance from pump to the battery

■ Attentions
1. Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature.
2. The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.
4. Please use the pump far from the dusty environment, the dust is harmful to reduce the service life
5. Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump

■ Performance parameter
240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus 2

  • External dimension

240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus 3240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus 4



Product Tags:24VDC OWP-7000KL67 High Pressure Auto Electric Water Pump Max Flow 5500L / H For BYD YUTONG BEV Bus

240W High Pressure Water Pump , Electric Water Transfer Pump For Electric Tractors Bus 5
