500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller

500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller

  • 500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller
  • 500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller
  • 500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller
  • 500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller
500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller
Product Details:
Place of Origin: China
Brand Name: JUYI
Certification: CE,ROHS, UL
Model Number: JYQD-V7.3E3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1000sets/day
Contact Now
Detailed Product Description
Product Name: Brushless Dc Motor Driver Board Working Voltage: 24VDC
Working Current: 15A PWM Speed Control: Duty Cycle 0-100%
Speed Pulse Signal Output: YES Hall Effect: Yes
Brushless: Yes Technical Support: Yes

12V,24V,36V,5A,10A,15A 500W brushless DC motor driver,Hall sensor,brushless DC motor speed controller JYQD-V7.3E3

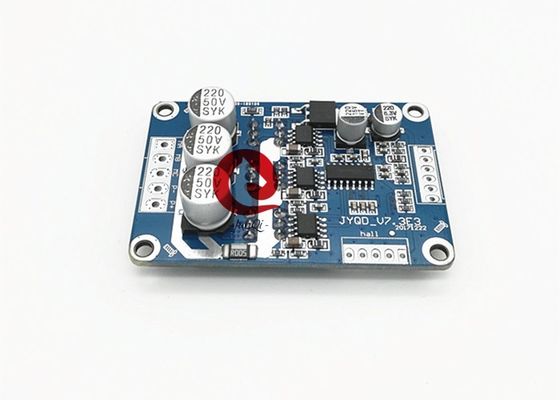

JYQD-V7.3E3 12V-36V brushless DC motor driver circuit board

500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller 0



MODEL OPERATING TEMPERATURE(℃) OPERATING VOLTAGE(V) MAX CURRENT (A)

· CONTINUOUS OPERATING CURRENT

(A)

PWM SPEED REGULATION

(1-20KHZ)

ANALOG VOLTAGE SPEED REGULATION (V) Speed pulse signal output
JYQD-V7.3E3 -20—85℃ 12V-36V 16A 15A

Duty cycle

0-100%

0-5V



ATTENTION:

1: This brushless DC motor driver board is widely apply to DC Brushless with Hall sensor (120°angle) three-wire motors
2: please make sure to add heat sink when the output power more than 60W.



When installing the heat sink, please add insulation layer for 6pcs MOS. It will damage the driver board permanently without insulation,and also apply Heat-Conducting Silicone Grease on the insulation for better cooling.

3: As the BLDC motor factory may use different Hall sequence,if the motor start abnormal, can't start or the current getting to high, please adjust the sequence of the Hall, or the driver will be damaged.



4: Please offer the right voltage to the driver, do not exceed the operating range. and the driver has built-in 5V for speed control, DO NOT connect extra power supply( 5V ) into the driver for speed controlling, it will damage the driver.







Specifications

Operating Voltage DC 12V-36V
Operating current ≤15A
Output power ≤500W
Speed control 0.1V-5V or PWM input
Operating temperature -40-85℃
Operating humidity ≤90%
Protection Overload protection, locked-rotor protection, over-current protection
Functions Speed pulse signal output, soft reversing (485,CAN port optional)
Overall dimension 63X42.5X17mm (L*W*H)
Net weight 55 g
Optional component

Speed regulating potentiometer

external 5 digit tachometer





Wiring instructions



500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller 1



1. Control port

5V Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation

Z/F Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

VR Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

EL Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.

Signal Speed pulse signal output

GNDUsed for Driver board internal control

2. Power port

MA ----motor phase A

MB ---- motor phase B

MC---- motor phase C

P- ----DC-

P+----DC +

3:Hall sensor port

Ha--- Hall a

Hb---Hall b

Hc---Hall c

GND---GND

5V---5V output

4.  Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.

5.  Control port distance:2.54mm. Power port distance:3.96mm

6.Pay Attention to the insulation between the driver MOSFET and the heatsink or the installation plate.



Mounting dimension



500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller 2

500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller 3

We can also supply the driver board with heatsink. wire connectors, welcome inquiry.



500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller 4500W Brushless DC Motor Driver , Hall Effect 24 Volt DC Motor Speed Controller 5
