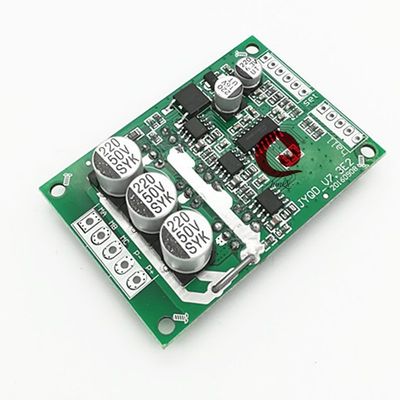

Arduino Brushless DC Motor Driver Max Power 500W Hall Effect With Hall At 120°

Arduino Brushless DC Motor Driver Max Power 500W Hall Effect With Hall At 120°

  • Arduino Brushless DC Motor Driver Max Power 500W Hall Effect With Hall At 120°
  • Arduino Brushless DC Motor Driver Max Power 500W Hall Effect With Hall At 120°
  • Arduino Brushless DC Motor Driver Max Power 500W Hall Effect With Hall At 120°
  • Arduino Brushless DC Motor Driver Max Power 500W Hall Effect With Hall At 120°
Arduino Brushless DC Motor Driver Max Power 500W Hall Effect With Hall At 120°
Product Details:
Place of Origin: China
Brand Name: JUYI
Certification: CE,
Model Number: JYQD-V7.3E2
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1000sets/day
Contact Now
Detailed Product Description
Product Name: Brushless Dc Motor Driver Board Working Voltage: 12VDC-36VDC
Working Current: 15A Speed Control: 0-5V Or PWM
Brushless: For Hall Sensor Motor Technical Support: Yes
Color: Green



12V-36VDC 15A 500W Brushless DC Motor Driver With JY01 IC , Bldc Motor Driver Board





Arduino Brushless DC Motor Driver Max Power 500W Hall Effect With Hall At 120° 0

Specifications

Operating Voltage DC 12V-36V
Operating current ≤15A
Output power ≤500W
Speed control 0.1V-5V or PWM input
Operating temperature -40-85℃
Operating humidity ≤90%
Protection Overload protection, locked-rotor protection, over-current protection
Functions Speed pulse signal output, soft reversing (485,CAN port optional)
Overall dimension 63X42.5X17mm (L*W*H)
Net weight 30g
Optional component

Speed regulating potentiometer

external 5 digit tachometer

Arduino Brushless DC Motor Driver Max Power 500W Hall Effect With Hall At 120° 1


ATTENTION:

1: This brushless DC motor driver board is widely apply to DC Brushless with Hall sensor (120°angle) three-phase brushless DC motors


2:please make sure to add heat sink when the output power more than 60W.JYQD-V7.3E2 Three Phase Brushless DC Motor Driver 15A 12-36V For 42mm 57mm 0


When installing the heat sink, please add insulation layer for 6pcs MOSFETs. It will damage the driver board permanently without insulation,and also apply Heat-Conducting Silicone Grease on the insulation for better cooling.

3: As the BLDC motor factory may use different Hall sequence,if the motor start abnormal, can't start or the current getting to high, please adjust the sequence of the Hall, or the driver will be damaged.



4:Please offer the right voltage to the driver, do not exceed the operating range. and the driver has built-in 5V for speed control, DO NOT connect extra power supply( 5V ) into the driver for speed controlling, it will damage the driver.



Wiring instructions:

Arduino Brushless DC Motor Driver Max Power 500W Hall Effect With Hall At 120° 3



1. Control port

5V —Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation

Z/F —Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

VR —Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

EL —Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.

Signal— Speed pulse signal output

GND—Used for Driver board internal control

2. Power port

MA ----motor phase A

MB ---- motor phase B

MC---- motor phase C

P- ----DC-

P+----DC +

3:Hall sensor port

Ha--- Hall a

Hb---Hall b

Hc---Hall c

GND---GND

5V---5V output

4. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.

5. Control port distance: 2.54mm,Power port distance:3.96 mm

6. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.



Dimensional Drawing:

Arduino Brushless DC Motor Driver Max Power 500W Hall Effect With Hall At 120° 4

Arduino Brushless DC Motor Driver Max Power 500W Hall Effect With Hall At 120° 5

We can add the wire connectors and heatsink.Arduino Brushless DC Motor Driver Max Power 500W Hall Effect With Hall At 120° 6
