||0.1V-5V or PWM input
||Overload protection, locked-rotor protection, over-current protection
||Speed pulse signal output, soft reversing (485,CAN port optional)
Speed regulating potentiometer
external 5 digit tachometer

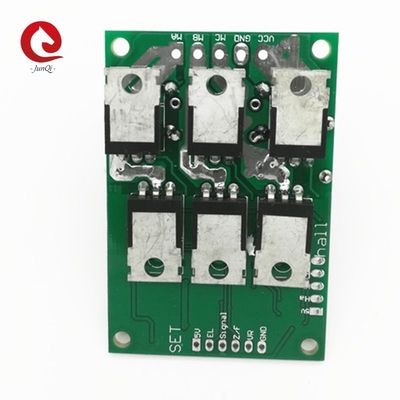

1: This brushless DC motor driver board is widely apply to DC Brushless with Hall sensor (120°angle) three-wire motors
2:please make sure to add heat sink when the output power more than 60W.
When installing the heat sink, please add insulation layer for 6pcs MOS. It will damage the driver board permanently without insulation,and also apply Heat-Conducting Silicone Grease on the insulation for better cooling.
3: As the BLDC motor factory may use different Hall sequence,if the motor start abnormal, can't start or the current getting to high, please adjust the sequence of the Hall, or the driver will be damaged.
4:Please offer the right voltage to the driver, do not exceed the operating range. and the driver has built-in 5V for speed control, DO NOT connect extra power supply( 5V ) into the driver for speed controlling, it will damage the driver.
1. Control port
5V —Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation
Z/F —Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.
VR —Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%
EL —Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.
Signal— Speed pulse signal output
GND—Used for Drive board internal control
2. Power port
MA ----motor phase A
MB ---- motor phase B
MC---- motor phase C
3:Hall sensor port
Ha--- Hall a
4. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.
5. Control port distance: 2.54mm,Power port distance:3.96 mm
6. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.
