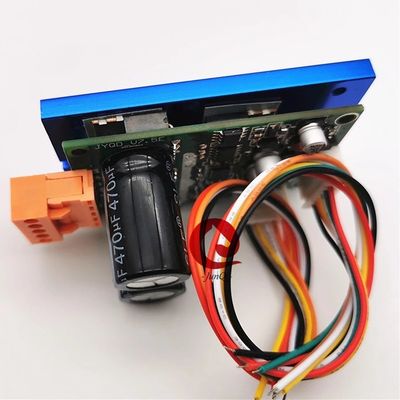

36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor

36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor

  • 36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor
  • 36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor
  • 36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor
  • 36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor
36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor
Product Details:
Place of Origin: China
Brand Name: JUYI
Certification: CE,
Model Number: JYQD-V7.5E
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 10000sets/Month
Contact Now
Detailed Product Description
Product Name: Brushless Dc Motor Driver Board Working Voltage: 36V-72VDC
Max Current: 16A Working Current: 15A
PWM Speed Control: Duty Cycle 0-100% Analog Voltage Speed Regulation: 0-5v
Brushless: For Hall Sensor Brushless Dc Motor Technical Support: Yes
Color: Green Speed Pulse Signal Output: Yes

JYQD_V7.5E 36-72VDC 15A Working Current 3-Phase BLDC motor driver board for Hall effect BLDC Motor



36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor 0



Specifications

Operating Voltage DC 36V
Operating current ≤20A
Output power ≤700W
Speed control 0.1V-5V or PWM input
Operating temperature -40-85℃
Operating humidity ≤90%
Protection Overload protection, locked-rotor protection, over-current protection
Functions Speed pulse signal output, soft reversing (485,CAN port optional)
Overall dimension 63X42.5X33mm (L*W*H)
Net weight 38g
Optional component

Speed regulating potentiometer

external 5 digit tachometer






















36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor 1

ATTENTION:

1: This brushless DC motor driver board is widely apply to DC Brushless with Hall sensor (120°angle) three-wire motors


2:please make sure to add heat sink when the output power more than 60W.


When installing the heat sink, please add insulation layer for 6pcs MOS. It will damage the driver board permanently without insulation,and also apply Heat-Conducting Silicone Grease on the insulation for better cooling.

3: As the BLDC motor factory may use different Hall sequence,if the motor start abnormal, can't start or the current getting to high, please adjust the sequence of the Hall, or the driver will be damaged.



4:Please offer the right voltage to the driver, do not exceed the operating range. and the driver has built-in 5V for speed control, DO NOT connect extra power supply( 5V ) into the driver for speed controlling, it will damage the driver.



Wiring instructions

36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor 2

1. Control port

5V Driver board internal output voltage, external potentiometer or switch for speed adjustment and reversing operation

Z/F Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

VR Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

EL Enable port control. Connect 5V or no connect to allow operation, connect GND to forbid operation.

Signal Speed pulse signal output

GNDUsed for Drive board internal control

2. Power port

MA ----motor phase A

MB ---- motor phase B

MC---- motor phase C

GND ----DC-

VCC----DC +

3:Hall sensor port

Ha--- Hall a

Hb---Hall b

Hc---Hall c

GND---GND

5V---5V output

4. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.

5. Control port distance: 2.54mm,Power port distance:3.96 mm

6. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.





36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor 3

36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor 4



Mounting dimension

36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor 5



36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor 6

36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor 736~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor 8

We can supply extra assy for this driver board connector wires, heatsink.

36~72VDC Original JYQD_V7.5E Motor Drive Board High Power Control Board with heatsink connector wries for Hall Motor 9
