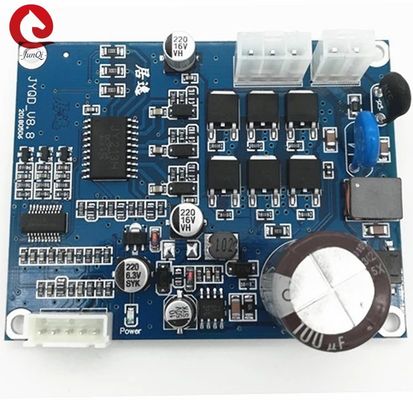

AC110V 220V 3PH Sensorless Brushless DC Motor Driver Board

AC110V 220V 3PH Sensorless Brushless DC Motor Driver Board

  • AC110V 220V 3PH Sensorless Brushless DC Motor Driver Board
  • AC110V 220V 3PH Sensorless Brushless DC Motor Driver Board
  • AC110V 220V 3PH Sensorless Brushless DC Motor Driver Board
  • AC110V 220V 3PH Sensorless Brushless DC Motor Driver Board
AC110V 220V 3PH Sensorless Brushless DC Motor Driver Board
Product Details:
Place of Origin: China
Brand Name: JUYI
Certification: CE,
Model Number: JYQD-V8.8
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 10000sets/Month
Contact Now
Detailed Product Description
Product Name: Brushless Dc Motor Driver Board Working Voltage: 90-265VAC(110VAC/220VAC)
Max Current: 1A Working Current: 0.5A
PWM Speed Control: PWM Frequency:1-20KHz,Duty Cycle 0-100% Analog Voltage Speed Regulation: 0-5v
Brushless: For Sensorless Brushless Dc Motor Technical Support: Yes
Color: Blue Speed Pulse Signal Output: Yes
High Light:

Sensorless Brushless DC Motor Driver

,

Sensorless Motor Driver board

,

3PH Brushless DC Motor Driver

Original JUYI Tech JYQD_V8.8 DC Brushless Motor Drive Board High Voltage Drive Board Control Board Motor Drive



The 5V output port on the driver board prohibits connect external device. It is only applicable to the external potentiometer and switch of the board for speed regulation and reversal.

The “M” terminal on the JYQD-V8.8 driver board is the motor speed pulse output signal (push-pull output), and the maximum output current is less than 5mA.



Model number JYQD-V8.8 / JYQD-V8.8D
Operating temp. -20—85℃
Operating voltage 90-265V AC
Max current 1A
Cont.working current 0.5A
· PWM speed control PWM frequency:1-20KHZ; Duty cycle 0-100%
Analog voltage speed regulation 0-5V
O.V / L.V protection YES
Speed pulse signal output YES





AC110V 220V 3PH Sensorless Brushless DC Motor Driver Board 0

Wiring Diagram:

AC110V 220V 3PH Sensorless Brushless DC Motor Driver Board 1AC110V 220V 3PH Sensorless Brushless DC Motor Driver Board 2

5V -----Driver board internal output voltage

M ---- Motor speed pulse signal output port, 5V pulse signal.

1. Control port

Z/F---- Rotating direction control ports. Connect “5V” high level or no connect is Forward direction, connect 0 V low level or connect to GND is reverse direction.

VR ----Speed control port. Analog voltage linear speed regulation 0.1v -5V, The input resistance is 20K Ohm ,connect with GND when input PWM speed regulation, PWM frequency:1-20KHZ; Duty cycle 0-100%

GND—Used for Drive board internal control



2. Power port

U/MA ----motor phase A

V/MB ---- motor phase B

W/MC---- motor phase C

AC----L

AC----N

3. Use shielded wires if the drivers board has more than 50 cm distance from the motor, otherwise it may lead to abnormal driving, affecting the normal use.



4.This AC input driver board can be the built-in driver in application



5. Pay attention to the insulation between the driver MOSFET and the heatsink or the installation plate.



Dimensional Drawing:



AC110V 220V 3PH Sensorless Brushless DC Motor Driver Board 3

AC110V 220V 3PH Sensorless Brushless DC Motor Driver Board 4AC110V 220V 3PH Sensorless Brushless DC Motor Driver Board 5
