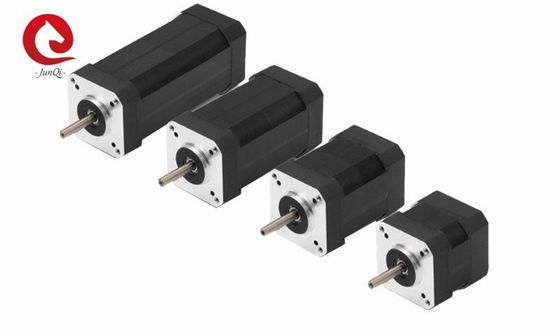

NEMA17 42mm BLDC Motor, JQ42BLA Series 24VDC, 3000RPM Max torque360mN.m brushless dc motor
Quick Details:
| Model |
Frame Size |
Rated Power W) |
Body Length (mm) |
Rated Voltage (VDC) |
Rated Torque (Nm) |
Rated Current (A) |
Rated Speed (RPM) |
| JQ42BLA01 | 42mm | 22 | 40.3 | 24 | 0.07 |
1.3 |
3000 |
| JQ42BLA02 | 42mm | 50 | 60.3 | 24 | 0.16 | 2.65 | 3000 |
| JQ42BLA03 | 42mm | 81 | 80.3 | 24 | 0.3 | 4.3 | 3000 |
| JQ42BLA04 | 42mm | 113 | 100.3 | 24 | 0.36 | 5.8 | 3000 |
Features:
1. Wide speed range, Flat torque
2. Excellent Speed Stability
3. Compact and High Power
4. High Efficiency and Energy-Saving.
General Specification:
| Item | Specification |
| Winding Type | Star Connection |
| Hall Effect Angle | Electrical Angle of 120 degree |
| Radial Play | 0.02mm@450g |
| Axial Play | 0.08mm@450g |
| Max.Radial Force | 28N( 10mm from the flange) |
| Max.Axial Force | 10N |
| Dielectric Strength | 600VAC/1S |
| Insulation Resistance | 100MΩ,500VDC |
| Ambient Temperature | -20℃~+50℃ |
| Insulation Class | Class B |
Electric Connection:
| Type | Color | Functions |
|
UL1061 AWG28 |
Red | Vcc |
| Blue | U(Hu) | |
| Green | V(Hv) | |
| White | W(Hw) | |
| Black | GND | |
|
UL1061 AWG24 |
Yellow | Phase U |
| Red | Phase V | |
| Black | Phase W |
Electricl Specification:
| Item | Unit | JQ42BLA01 | JQ42BLA02 | JQ42BLA03 | JQ42BLA04 |
| Number of poles | 10 | 10 | 10 | 10 | |
| Number of Phase | 3 | 3 | 3 | 3 | |
| Rated Voltage | VDC | 24 | 24 | 24 | 24 |
| Rated Torque | mN.m | 70 | 160 | 260 | 360 |
|
Continuous stall torque |
mN.m | 81 | 190 | 300 | 410 |
| Rated Speed | RPM | 3000 | 3000 | 3000 | 3000 |
| Rated Power | W | 22 | 50 | 81 | 113 |
| Peak Torque | mN.m | 210 | 480 | 780 | 1080 |
| Peak Current | A | 3.9 | 8 | 13 | 17.5 |
| Line to Line resistance | ohms@20℃ | 2.6 | 1.1 | 0.7 | 0.5 |
| Line to Line Inductance | mH | 1.83 | 0.96 | 0.58 | 0.44 |
| Torque Constant | N.m/A | 0.054 | 0.06 | 0.06 | 0.062 |
| Back EMF | Vrms/KRPM | 4.06 | 4.5 | 4.5 | 4.6 |
| Rotor Inertia | g.cm2 | 48 | 101 | 154 | 207 |
| Motor Length | mm | 40.3 | 60.3 | 80.3 | 100.3 |
| Weight | kg | 0.26 | 0.46 | 0.65 | 0.85 |
**Notes: The motor can be designed &manufactured with customized request!!
Mechanical Size:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: gearbox, connector
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
