Type: | Planetary Gearbox Brushless DC Motor | Model Number: | JQ33RBL/ 32JXE30K |
---|---|---|---|
Frame Size: | 33mm | Winding Type: | Star |
Rated Torque: | 0.3N.m~3N.m | Number Of Poles: | 4 |
Number Of Phase: | 3 | Rated Voltage: | 24VDC |
Rated Speed: | 8.1~2102rpm | Usage: | BOAT, Car, Electric Bicycle, FAN, Home Appliance, Industric Automatic |
Shape: | Round | ||
High Light: | 33mm bldc planetary gear motor,24V brushless planetary gear motor,3.0NM bldc planetary gear motor |

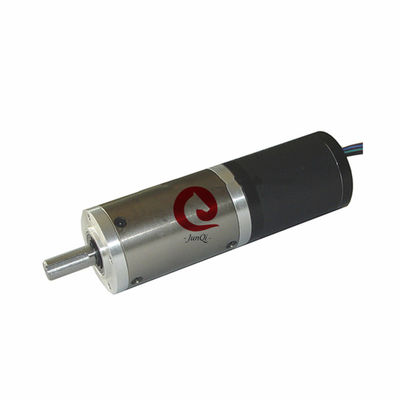

JQ33RBL/ 32JXE30K Dia33mm OD Planetary Gearbox BLDC Motor,24V Voltage Permissible Load Range 0.3N.m~3.0N.m
Junqi supply gearbox service:
The JUNQI range of gearboxes includes Spur gearboxes , ideal for low torque applications; and high efficiency planetary gearboxes best suited for precision and high torque use. Our portfolio offers extensive options of small gearboxes from 8 to 80mm in diameter
Brushless DC Gear Motor Technical Data:
JQ33RBL38-2445 Gear Motor data
Reduction Ratio | 3.7 | 5.2 | 14 | 19 | 27 | 35 | 51 | 71 | 100 | 139 | 189 | 264 | 369 | |
Number of Gear Trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | |
Gearbox Length(L) | mm | 25.7 | 25.7 | 32.8 | 32.8 | 32.8 | 32.8 | 39.7 | 39.7 | 39.7 | 39.7 | 46.6 | 46.6 | 46.6 |
No-Load Speed | rpm | 1213 | 869 | 321 | 237 | 167 | 129 | 88 | 63 | 45 | 32 | 24 | 17 | 12 |
Rated Speed | rpm | 809 | 579 | 214 | 158 | 111 | 86 | 59 | 42 | 30 | 22 | 16 | 11 | 8.1 |
Rated Torque | N.m | 0.073 | 0.10 | 0.25 | 0.34 | 0.48 | 0.62 | 0.82 | 1.1 | 1.6 | 2.2 | 2.7 | 3 | 3 |
Max.Permissible load in a short time |
N.m | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 | 9.0 | 9.0 | 9.0 |
JQ33RBL80-2490 Gear Motor data
Reduction Ratio | 3.7 | 5.2 | 14 | 19 | 27 | 35 | 51 | 71 | 100 | 139 | |
Number of Gear Trains | 1 | 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | |
Gearbox Length(L) | mm | 25.7 | 25.7 | 32.8 | 32.8 | 32.8 | 32.8 | 39.7 | 39.7 | 39.7 | 39.7 |
No-Load Speed | rpm | 2425 | 1737 | 643 | 474 | 333 | 257 | 176 | 127 | 90 | 65 |
Rated Speed | rpm | 2102 | 1506 | 557 | 411 | 289 | 223 | 153 | 110 | 78 | 56 |
Rated Torque | N.m | 0.17 | 0.23 | 0.57 | 0.77 | 1.1 | 1.4 | 1.9 | 2.5 | 3 | 3 |
Max.Permissible load in a short time |
N.m | 1.0 | 1.0 | 3.5 | 3.5 | 3.5 | 3.5 | 7.5 | 7.5 | 7.5 | 7.5 |
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: Brake, connector , Encoder
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
Features:
1. Wide Speed Range, Flat Torque
2. Compact And High Power
3. Excellent Speed Stability
4. High Efficiency And Energy-Saving
Wire Diagram:
Type | Color | Functions |
UL1007 AWG26 |
Yellow | Vcc |
Blue | Ha | |
Orange | Hb | |
Brown | Hc | |
White | GND | |
UL1007 AWG26 |
Green | Phase U |
Red | Phase V | |
Black | Phase W |
Driving Motor Specification:
Item | Unit | JQ33RBL38-2445 | JQ33BL80-2490 |
Number of poles | 4 | 4 | |
Number of Phase | 3 | 3 | |
Rated Voltage | VDC | 24 | 24 |
No-Load Speed | rpm | 4500 | 9000 |
Rated Speed | rpm | 3000 | 7800 |
Rated Torque | mN.m | 22 | 50 |
Rated Power | W | 7 | 40 |
Peak Torque | mN.m | 66 | 350 |
Peak Current | A | 0.64 | 11 |
Line to Line resistance | ohms@20℃ | 12.8 | 0.86 |
Line to Line Inductance | mH | 7 | 0.55 |
**Notes: Above is standard motor, we can be designed &manufactured with customized request!!
