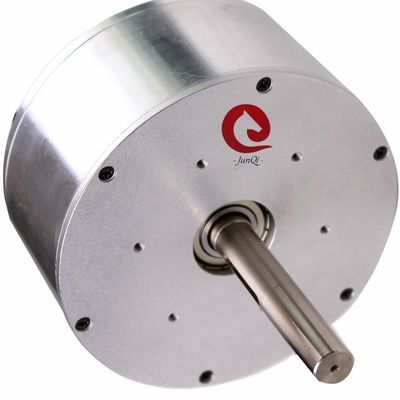

125mm Diameter Brushless DC Motor 480W 60VDC 480RPM BLDC motor
Quick Details:
| Model |
Frame
Size
|
Rated
Power
W)
|
Body
Length
(mm)
|
Rated
Voltage
(VDC)
|
Rated
Torque
(Nm)
|
Rated
Current
(A)
|
Rated
Speed
(RPM)
|
| JQ125RBL60 |
125mm |
340 |
64 |
60 |
6.8 |
7.7
|
480 |
Features:
1. Wide speed range, Smooth torque output.
2. Excellent Speed Stability.
3. Small and High Power.
4. High Efficiency and Energy conservation.
General Specification:
| Item |
Specification |
| Winding Type |
Star Connection |
| Hall Effect Angle |
Electrical Angle of 120 degree |
| Radial Play |
0.025mm@450g |
| Axial Play |
0.08mm@450g |
| Max.Radial Force |
220N( 20mm from the flange) |
| Max.Axial Force |
60N |
| Dielectric Strength |
600VAC/1S |
| Insulation Resistance |
100MΩ,500VDC |
| Ambient Temperature |
-20℃~+50℃ |
| Insulation Class |
Class B |
Electric Connection:
| Type |
Color |
Functions |
|
UL1322
AWG22
|
Red |
Vcc |
| Blue |
U(Hu) |
| Green |
V(Hv) |
| White |
W(Hw) |
| Black |
GND |
|
UL3135
AWG14
|
Yellow |
Phase U |
| Red |
Phase V |
| Black |
Phase W |
Electricl Specification:
| Item |
Unit |
JQ125RBL60 |
| Number of poles |
|
28 |
| Number of Phase |
|
3 |
| Rated Voltage |
VDC |
60 |
| Rated Torque |
N.m |
6.8 |
|
Continuous
stall torque
|
N.m |
8.16 |
| Rated Speed |
RPM |
480 |
| Rated Power |
W |
340 |
| Peak Torque |
N.m |
40 |
| Peak Current |
A |
46 |
| Line to Line resistance |
ohms@20℃ |
1.1 |
| Line to Line Inductance |
mH |
2.4 |
| Torque Constant |
N.m/A |
0.88 |
| Back EMF |
Vrms/KRPM |
65 |
| Rotor Inertia |
g.cm2 |
2100 |
| Motor Length |
mm |
64 |
| Weight |
kg |
2.9 |
**Notes: Above is standard motor, we can be designed &manufactured with customized request!!
Mechanical Size:
We can supply Extra service:
If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.
Accessories service: Brake, connector , Encoder
Customized Design: Customized Winding, Customized Flange, Customized Shaft....
