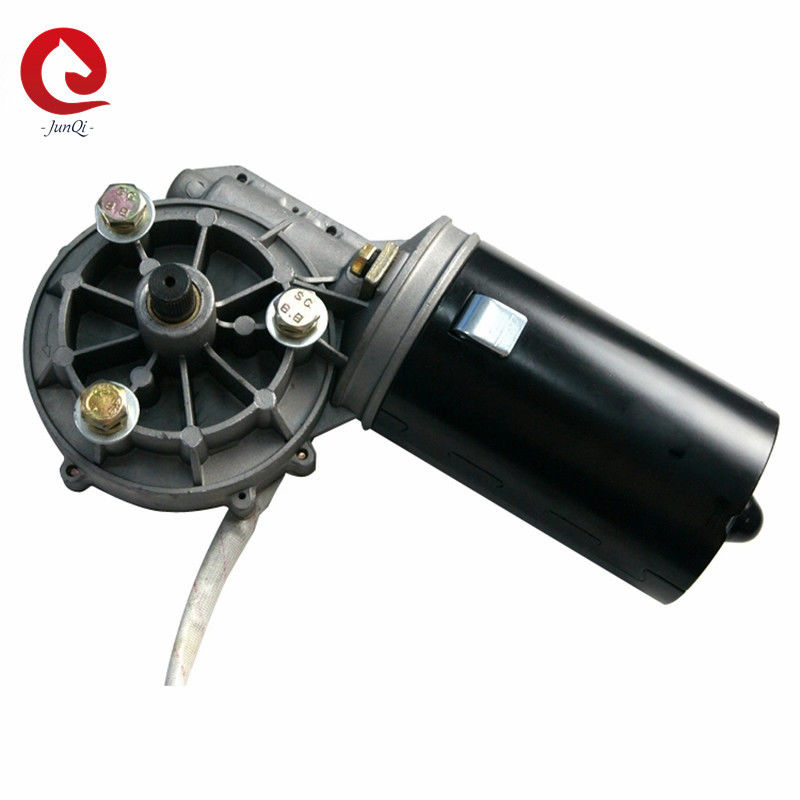

180W 24VDC Rear Windscreen Wiper Motor

180W 24VDC Rear Windscreen Wiper Motor

  • 180W 24VDC Rear Windscreen Wiper Motor
  • 180W 24VDC Rear Windscreen Wiper Motor
  • 180W 24VDC Rear Windscreen Wiper Motor
  • 180W 24VDC Rear Windscreen Wiper Motor
  • 180W 24VDC Rear Windscreen Wiper Motor
180W 24VDC Rear Windscreen Wiper Motor
Product Details:
Place of Origin: CHINA
Brand Name: NO BRAND
Certification: IS9001
Model Number: ZD2735
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton+packing foams
Delivery Time: 5-30days
Payment Terms: T/T, L/C
Supply Ability: 5000PCS/Month
Contact Now
Detailed Product Description
Product Name: IRZAR Bus Wiper Motor Model: ZD2735 180W
Motor: Brush Voltage: 24VDC/12V
High Speed: 35±5rpm Low Speed: 25±5rpm
Power: 180w Stall Torque: 100N.m
Certification: ISO9001 Weight: 4950g
Highlight:

100N.M Rear Windscreen Wiper Motor

,

180W compact windshield wiper motor

,

180W Rear Windscreen Wiper Motor

12/24V 100N.m 180W Windshield Front Wipper motor ZD2735 For Transit Bus, , BENZ, SCANIA Bus Coach Special Vehicles

180W 24VDC Rear Windscreen Wiper Motor 0





Motor Parameters:



Item ZD2735 wiper motor ZD1735 wiper motor
Voltage dc motor 24V dc motor 12V
No-load speed high speed 35 ±5 rpm
low speed 25 ± 5 rpm
No-load current high speed 4.5A Max 3.0A Max
low speed 2.5A Max 2.0A Max
Brake stall torque 100N.m Min
current 65A Max 35A Max
Temperature rise -40°c~+65°c
Weight 4950g



Customer choice:

Shaft type and size
Wire connector type
Terminal arrangement
EMC
Thermoswitch
Positive or negative pole
connects with switch



Motor Drawing:

Professional IRZAR  Bus Wiper Motor ZD2735/1735 24V / 12V ISO9001 0

Performance Curve:

Professional IRZAR  Bus Wiper Motor ZD2735/1735 24V / 12V ISO9001 1



Motor Details Showing:

180W 24VDC Rear Windscreen Wiper Motor 3



Application Models:



180W 24VDC Rear Windscreen Wiper Motor 4

Certificate:

180W 24VDC Rear Windscreen Wiper Motor 5



Transportation:

At present, our company supports a variety of modes of transport, or according to customer's needs to choose the mode of transportation.

180W 24VDC Rear Windscreen Wiper Motor 6

FAQ:



Q1. Where is your company?
A: We are located Changzhou City Jiangsu Province, Our cooperation Factory in Wenzhou City, Zhejiang Province, China(Mainland)


Q2. What is your terms of packing?
A: Generally, we pack our goods in neutral boxes and pallet.



Q3. What is your terms of payment?
A: T/T 100% or 70%  in advance  and 30% before delivery. We’ll show you the photos of the products and packages before you pay the balance.


Q4. What is your terms of delivery?
A: EXW, FOB, CFR, CIF, .


Q5. How about your delivery time?
A: Generally, it will take 10 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.


Q6. can you design the wiper systems according to our glass size?
A: Yes, our cooperation Factory  engineer is major in windshield wiper systems for more than 20years.

We can design the wiper detail size according to your glass size.


Q7. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.


Q8. Do you test all your goods before delivery?
A: Yes, we have 100% inspection before delivery


Q9. How do you make our business long-term and good relationship?
A: 1. We keep good quality and competitive price to ensure our customers’ benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
