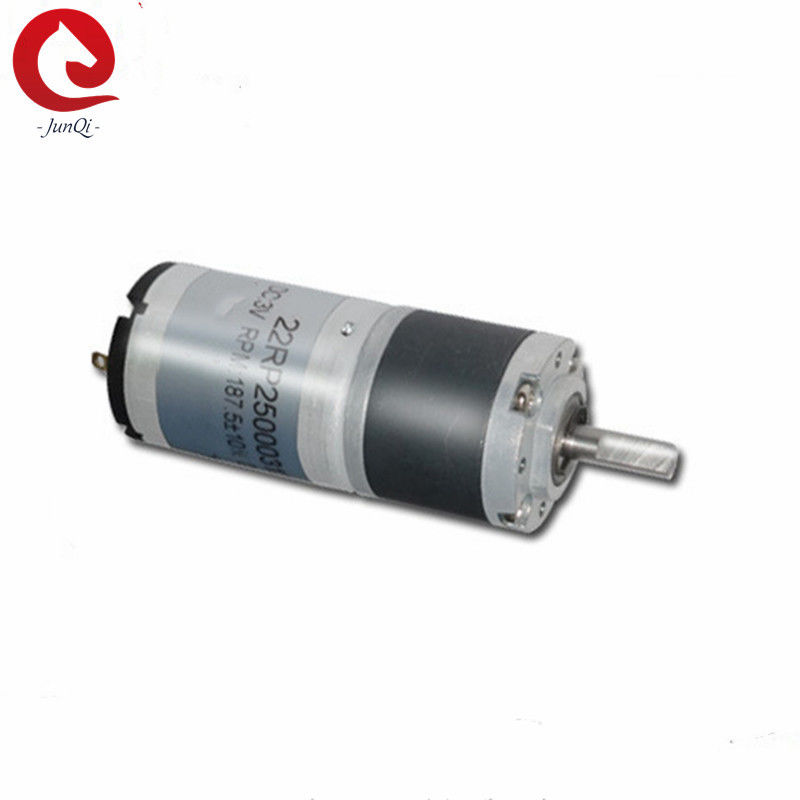

12v/24v 2~6W 22mm Planetary gear DC motor JQM-22RP250 For Video Tape Recorder

12v/24v 2~6W 22mm Planetary gear DC motor JQM-22RP250 For Video Tape Recorder

  • 12v/24v 2~6W  22mm Planetary gear DC motor JQM-22RP250 For Video Tape Recorder
  • 12v/24v 2~6W  22mm Planetary gear DC motor JQM-22RP250 For Video Tape Recorder
  • 12v/24v 2~6W  22mm Planetary gear DC motor JQM-22RP250 For Video Tape Recorder
  • 12v/24v 2~6W  22mm Planetary gear DC motor JQM-22RP250 For Video Tape Recorder
12v/24v 2~6W  22mm Planetary gear DC motor JQM-22RP250 For Video Tape Recorder
Product Details:
Place of Origin: China
Brand Name: Junqi
Certification: CE,ROHS, UL
Model Number: JQM-22RP250
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD10-usd16/pc (Negotiable)
Packaging Details: suite for export
Delivery Time: as confirmed
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Product Name: DC Gear Motor Model: JQM-22RP250
Voltage: 3~24V Speed: 2~1200RPM
Torque: 5kgf.cm Shaft Diameter: 4mm
Power: 2~6W Application: Home Appliance, Robotic, Electric Bicycle

12v/24v 2~6W 22mm Planetary gear DC motor JQM-22RP250 For Video Tape Recorder

12v/24v 2~6W  22mm Planetary gear DC motor JQM-22RP250 For Video Tape Recorder 0

1.Main voltage : 6VDC,12VDC, 24VDC
2.Typical applications: Smart Instrument, Digital product, Automatic door-lock, Medical equipment, Security monitoring, Smart home applicances, Robots…
3. Round Gearbox size: 22mmφ*L
4. Torque: 5kgf.cm
5. Direction: CW, CCW
6. Voltage, speed, and shaft can be customized based



Driving Motor Data:

Motor model Rated Volt. No load Load Stall
Current Speed Current Speed Torque power Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
JQM-250-12-8000 12 ≤120 8000 ≤400 6800 40 2.8 260 2060
JQM-250-12-10500 12 ≤150 10500 ≤620 8953 49.4 4.54 315 3250
JQM-250-24-15000 24 ≤90 15000 ≤380 11521 39.8 4.71 192 1380



Technical Data of Gearbox:

Reduction Stage 1 2 3 4 5
Reduction Ratio 4K, 4.75K 16K, 19K, 22.5K 64K, 76K, 90K, 107K 256K, 304K, 361K, 428K, 509K 1024K, 1216K, 1444K, 1714K, 2036K, 2418K
Gearbox Length “L” mm 13.5 16.9 20.5 24.1 27.6
Gearbox Efficiency 90% 81% 73% 65% 59%


Gear Motor Mechanical Size:

12v/24v 2~6W  22mm Planetary gear DC motor JQM-22RP250 For Video Tape Recorder 1

What a Model Number Tells You?

We follow some rules to create each model number. A model number would tell you a lot of useful messages. Here is a sample.



12v/24v 2~6W  22mm Planetary gear DC motor JQM-22RP250 For Video Tape Recorder 2

So here we can learn that it is a 37mm Round Spur gear motor, 12V driving motor #555, no load input speed 6000rpm and reduction ratio 100:1. Hey, what about output speed? You need to do a little calculation. Input speed 6000rpm ÷ reduction ratio 100 = 60rpm



Gear Motor Electric Data:



Model Number Rated Volt. No Load At Max Efficiency Stall
Speed Current Speed Current Torque Power Current Torque
rpm mA rpm mA Kgf.cm W mA Kgf.cm
JQM-22RP25000312000-64K 3V 188 1165 110 3700 2.6 2.94 6200 5.3
JQM-22RP2500128000-4.75K 12V 1684 150 1361 520 0.2 2.79 1800 1
JQM-22RP2500126000-19K 12V 315 190 230 650 0.8 1.89 1100 2.9
JQM-22RP25002416000-42K 24V 380 170 327 1000 1.8 6.04 2900 10
JQM-22RP25002416000-64K 24V 250 210 215 1000 3 6.62 2800 16
Remark: 1 Kgf.cm0.098 N.m14 oz.in 1 mm0.039 in

Professional Factory:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 2





Certificate Photos :

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 3

Packing:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 4

Transportation:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 5

Motor Application Fields:


12v/24v 2~6W  22mm Planetary gear DC motor JQM-22RP250 For Video Tape Recorder 7


FAQ:



Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit



Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.



Q: What’s Moq?

A: 5PCS. Small Order Welcome.



Q:Do You Make Customized Product?

A:Yes,We Accpet IT.



Q:About After Sale Serive?

A: After Sales Services 24/7.



Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.



Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details



Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.





Our motor products contain range:

12v/24v 2~6W  22mm Planetary gear DC motor JQM-22RP250 For Video Tape Recorder 8
