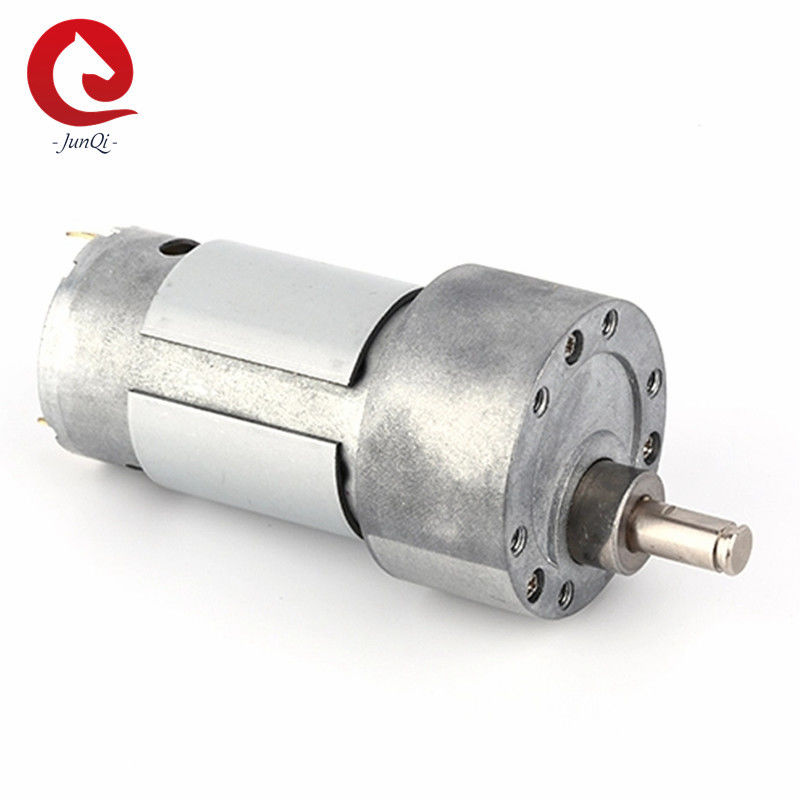

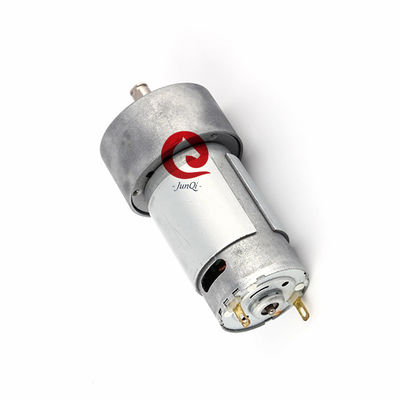

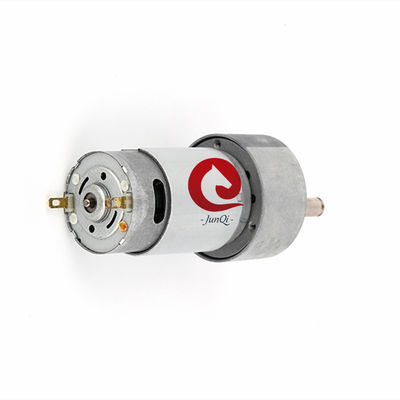

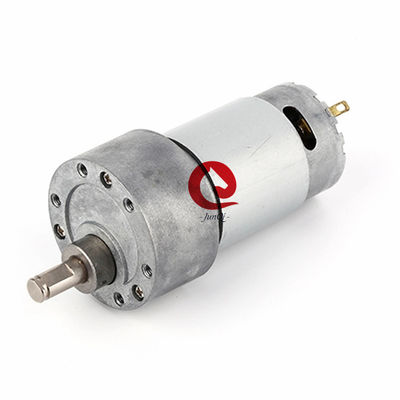

395DC Motor Metal gear reducer Motor 37mm Spur 12V 24V Gearbox Motor 1.5~5W

395DC Motor Metal gear reducer Motor 37mm Spur 12V 24V Gearbox Motor 1.5~5W

  • 395DC Motor Metal gear reducer Motor 37mm Spur  12V 24V Gearbox Motor 1.5~5W
  • 395DC Motor Metal gear reducer Motor 37mm Spur  12V 24V Gearbox Motor 1.5~5W
  • 395DC Motor Metal gear reducer Motor 37mm Spur  12V 24V Gearbox Motor 1.5~5W
  • 395DC Motor Metal gear reducer Motor 37mm Spur  12V 24V Gearbox Motor 1.5~5W
395DC Motor Metal gear reducer Motor 37mm Spur  12V 24V Gearbox Motor 1.5~5W
Product Details:
Place of Origin: China
Brand Name: Junqi
Certification: CE,ROHS, UL
Model Number: JQM-37RS395
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD3-usd7/pc (Negotiable)
Packaging Details: suite for export
Delivery Time: as confirmed
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Product Name: DC Gear Motor Model: JQM-37RS395
Commutation: Brush Speed: 1~882RPM
Torque: 0.7~15kgf.cm Construction: Permanent Magnet
Diameter: 37mm Application: BOAT, Car, Electric Bicycle, FAN, Home Appliance

395DC Motor Metal gear reducer Motor 37mm Spur 12V 24V Gearbox Motor 1.5~5W

395DC Motor Metal gear reducer Motor 37mm Spur  12V 24V Gearbox Motor 1.5~5W 0





Technical Data of Gearbox:

Reduction Stage 2 3 4 5 6 7
Reduction Ratio 6.8K, 10K 20K, 30K 61K, 90K 107K, 122K, 184K, 270K 311K, 552K, 414K, 810K 1243K, 1657K, 2430K
Length of Gearbox "L" mm 18 21.5 24 26.5 29 31.5
Gearbox Efficiency 81% 73% 65% 59% 53% 47%



Driving Motor Data:

Motor model Rated Volt. No load Load Stall
Current Speed Current Speed Torque power Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
JQM-3950123000 12 ≤80 3000 ≤450 2100 100 2.2 ≥330 ≥1020
JQM-3950124500 12 ≤120 4500 ≤690 3600 100 3.77 ≥510 ≤2400
JQM-3950126000 12 ≤160 6000 ≤930 5200 100 5.45 ≥720 ≥4500
JQM-3950243000 24 ≤50 3000 ≤200 2100 90 1.98 ≥248 ≥420
JQM-3950244500 24 ≤60 4500 ≤200 3480 90 3.28 ≥440 ≥980
JQM-3950246000 24 ≤70 6000 ≤430 5000 100 5.24 ≥660 ≥1730



Gear Motor Mechanical Size:

395DC Motor Metal gear reducer Motor 37mm Spur  12V 24V Gearbox Motor 1.5~5W 1

What a Model Number Tells You?

We follow some rules to create each model number. A model number would tell you a lot of useful messages. Here is a sample.



395DC Motor Metal gear reducer Motor 37mm Spur  12V 24V Gearbox Motor 1.5~5W 2

So here we can learn that it is a 37mm Round Spur gear motor, 12V driving motor #555, no load input speed 6000rpm and reduction ratio 100:1. Hey, what about output speed? You need to do a little calculation. Input speed 6000rpm ÷ reduction ratio 100 = 60rpm

Gear Motor Electric Data:

Model Number Rated Volt. No Load At Max Efficiency Stall
Speed Current Speed Current Torque Power Current Torque
rpm mA rpm mA Kgf.cm W mA Kgf.cm
JQM-37RS39501210000-10K 12V 1000 300 871 2000 0.9 8.05 5300 5
JQM-37RS3950127400-10K 12V 740 180 632 1000 0.7 4.54 3500 4
JQM-37RS3950126000-60K 12V 100 310 78 1200 4.7 3.76 2470 18
JQM-37RS3950246000-60K 24V 100 110 83 4600 4.4 3.75 1630 22.5
JQM-37RS3950244500-60K 24V 75 80 63 270 3.3 2.13 850 15
JQM-37RS3950243000-60K 24V 50 60 37 150 2.5 0.95 350 9.6
JQM-37RS3950246000-90 24V 66 100 56 450 6.8 3.91 1500 33.5
JQM-37RS3950244500-90K 24V 50 80 41 260 5.1 2.15 790 23.4
JQM-37RS3950243000-90K 24V 33 50 26 130 3.3 0.88 350 13..8
JQM-37RS3950246000-120K 24V 50 100 40 500 10.2 4.19 1700 50
JQM-37RS3950244500-120K 24V 37 85 30 330 9 2.77 995 39.2
JQM-37RS3950243000-120K 24V 25 50 19 150 4.9 0.96 460 22.2
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in

Notes: Above is our standard models for your reference, we can make as customer request.



Professional Factory:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 2





Certificate Photos :

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 3

Packing:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 4

Transportation:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 5

Motor Application Fields:


395DC Motor Metal gear reducer Motor 37mm Spur  12V 24V Gearbox Motor 1.5~5W 7395DC Motor Metal gear reducer Motor 37mm Spur  12V 24V Gearbox Motor 1.5~5W 8


FAQ:



Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit



Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.



Q: What’s Moq?

A: 5PCS. Small Order Welcome.



Q:Do You Make Customized Product?

A:Yes,We Accpet IT.



Q:About After Sale Serive?

A: After Sales Services 24/7.



Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.



Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details



Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.
