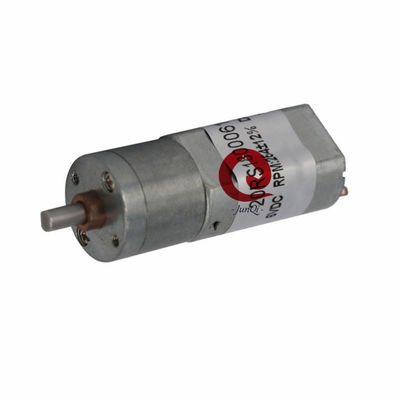

JQM-20RS180 Custom 3V 6V Brush Spur Gear DC Motor For Slot Machine, Cash Counter Safe Box

JQM-20RS180 Custom 3V 6V Brush Spur Gear DC Motor For Slot Machine, Cash Counter Safe Box

  • JQM-20RS180 Custom 3V 6V Brush Spur Gear DC Motor For Slot Machine, Cash Counter Safe Box
  • JQM-20RS180 Custom 3V 6V Brush Spur Gear DC Motor For Slot Machine, Cash Counter Safe Box
  • JQM-20RS180 Custom 3V 6V Brush Spur Gear DC Motor For Slot Machine, Cash Counter Safe Box
  • JQM-20RS180 Custom 3V 6V Brush Spur Gear DC Motor For Slot Machine, Cash Counter Safe Box
JQM-20RS180 Custom 3V 6V Brush Spur Gear DC Motor For Slot Machine, Cash Counter Safe Box
Product Details:
Place of Origin: China
Brand Name: Junqi
Certification: CE,ROHS, UL
Model Number: JQM-20RS180
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD3-usd6/pc (Negotiable)
Packaging Details: suite for export
Delivery Time: as confirmed
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Product Name: DC Gear Motor Commutation: Brush
Model: JQM-20RS180 Voltage: 3~24VDC
Speed: 6.5~500RPM Power: 0.1~2W
Torque: 0.2~3kgf.cm Construction: Permanent Magnet
Diameter: 20mm Application: BOAT, Car, Electric Bicycle, FAN, Home Appliance

JQM-20RS180 Custom 3V 6V Brush Spur Gear DC Motor For Slot Machine, Cash Counter Safe Box

JQM-20RS180 Custom 3V 6V Brush Spur Gear DC Motor For Slot Machine, Cash Counter Safe Box 0

1.Main voltage : 6VDC,12VDC,24VDC
2.Typical applications :Smart Instrument, Digital product, Automatic door-lock, Medical equipment, Security monitoring,Smart home applicances,Robots…
3. Round Gearbox size: φ20mm*L
4. Torque: 0.2-3kgf.cm
5. Direction: CW, CCW
6. Voltage, speed, and shaft can be customized based




Driving Motor Data:

Motor model
Rated
Volt.
No load
Load
Stall
Current
Speed
Current
Speed
Torque
Output power
Torque
Current
V
mA
r/min
mA
r/min
gf.cm
W
gf.cm
mA
JQM-180-006-6000
6
≤65



6000
≤260
5100
15
0.8
≥55
≥1150
JQM-180-012-6000
12
≤27
6000
≤150
5100
15
0.8
≥55
≥430
JQM-180-012-9000
12
≤80
9000
≤260
7000
20
1.4
≥80
≥1000
JQM-180-024-9000
24
≤50
9000
≤150
7800
20
1.6
≥80
≥550

Technical Data of Gearbox:

Number of stages
4
5
6
7
8
Reduction ratio
18,23
35,44,55
67,84
105,132
161,202
252,316
386,484
606,758
Gearbox length “L”mm
16.2
17.7
19.2
20.7
22.2
Breaking torque(kgf.cm)
2
4
6
8
8
Gearbox efficiency
65%
59%
53%
48%
43%

Gear Motor Mechanical Size:

JQM-20RS180 Custom 3V 6V Brush Spur Gear DC Motor For Slot Machine, Cash Counter Safe Box 1
Gear Motor Electric Data:



Motor model
Rated
Volt.
No load
Load
Stall
Current
Speed
Current
Speed
Torque
Output power
Torque
Current
V
A
r/min
A
r/min
kgf.cm
W
kgf.cm
A
JQM-20RS1800039500-67K
3.0
0.21
139.9
0.91
115.5
0.68
0.81
3.9
4.21
JQM-20RS1800039500-84K
3.0
0.24
109.9
1.09
86.5
1.09
0.97
5.1
4.20
JQM-20RS1800069000-55K
6.0
0.08
162.4
0.39
133.9
0.57
0.79
3.3
1.81
JQM-20RS18000614000-202K
6.0
0.21
68.5
0.97
56.5
2.71
1.57
15.4
4.51
JQM-20RS18001211000-55K
12.0
0.09
196.1
0.33
159.2
0.85
1.38
4.5
1.35
JQM-20RS1800123000-316K
12.0
0.02
8.1
0.05
5.5
1.86
0.11
5.8
0.10
JQM-20RS1800123500-758K
12.0
0.02
4.1
0.06
2.9
2.48
0.08
8.4
0.15
JQM-20RS1800128000-484K
12.0
0.06
16.9
0.20
12.9
3.36
0.45
14.2
0.65
JQM-20RS1800128000-758K
12.0
0.05
10.8
0.22
8.6
6.12
0.54
29.9
0.90
JQM-20RS18001816500-132K
18.0
0.16
123.1
0.66
97.1
3.94
3.93
18.6
2.56
JQM-20RS18002412500-23K
24.0
0.04
525.9
0.18
444.1
0.40
1.83
2.6
0.98
JQM-20RS1800249000-105K
24.0
0.03
84.3
0.14
66.6
1.45
0.99
6.8
0.55
JQM-20RS1800247000-252K
24.0
0.02
27.5
0.08
20.9
1.70
0.36
7.0
0.26

Notes: Above is our standard models for your reference, we can make as customer request.



Professional Factory:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM Max 4.5N.m TorqueBLDC DC motor 2





Certificate Photos :

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM Max 4.5N.m TorqueBLDC DC motor 3

Packing:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM Max 4.5N.m TorqueBLDC DC motor 4

Transportation:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM Max 4.5N.m TorqueBLDC DC motor 5

Motor Application Fields:


JQM-20RS180 Custom 3V 6V Brush Spur Gear DC Motor For Slot Machine, Cash Counter Safe Box 6


FAQ:



Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit



Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.



Q: What’s Moq?

A: 5PCS. Small Order Welcome.



Q:Do You Make Customized Product?

A:Yes,We Accpet IT.



Q:About After Sale Serive?

A: After Sales Services 24/7.



Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.



Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details



Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.





Our motor products contain range:

JQM-20RS180 Custom 3V 6V Brush Spur Gear DC Motor For Slot Machine, Cash Counter Safe Box 7
