| Place of Origin: | China |
| Brand Name: | Junqi |
| Certification: | CE,ROHS, UL |
| Model Number: | JQM-25RS310 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | USD5-usd8/pc (Negotiable) |
| Packaging Details: | suite for export |
| Delivery Time: | as confirmed |
| Payment Terms: | L/C, T/T, Western Union,PAYPAL |
| Supply Ability: | 10000PCS/Month |

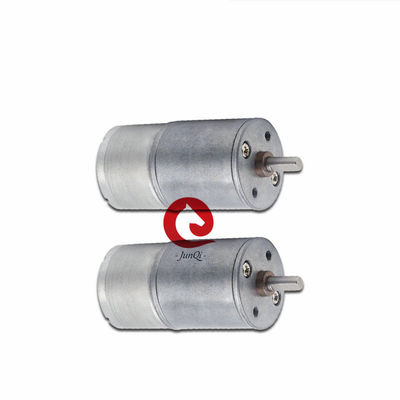

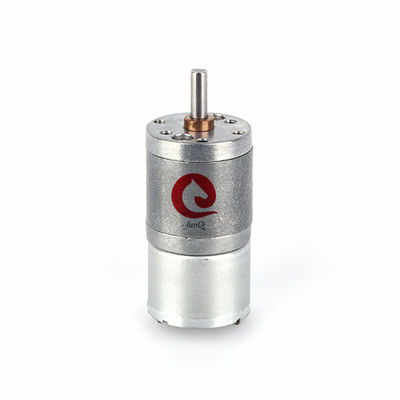

| Product Name: | DC Gear Motor | Commutation: | Brush |
|---|---|---|---|
| Model: | JQM-25RS310 | Voltage: | 6~24VDC |
| Speed: | 6.7~920RPM | Power: | 0.1~0.89W |
| Torque: | 0.1~2kg.cm | Construction: | Permanent Magnet |
| Diameter: | 25mm | Application: | BOAT, Car, Electric Bicycle, FAN, Home Appliance |
1. Main voltage: 3V, 6V, 12VDC, 24VDC
2. Typical applications: Automatic door-lock, projector, hairdressing equipment
3. ound Gearbox size: 25mmφ*L
4. Torque: 0.1-5kgf.cm
5. Direction: CW, CCW
6. Voltage, speed, and shaft can be customized based
Driving Motor Data:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | power | Torque | Current | ||
| V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
| JQM-3100066000 | 6 | ≤33 | 6000 | ≤160 | 4800 | 10 | 0.5 | ≥45 | ≥550 |
| JQM-3100129200 | 12 | ≤33 | 9200 | ≤100 | 8400 | 5 | 0.44 | ≥51 | ≥510 |
| JQM-3100248000 | 24 | ≤20 | 8000 | ≤70 | 6400 | 10 | 0.67 | ≥45 | ≥190 |
Technical Data of Gearbox:
| Reduction Stage | 4 | 5 | 6 | 7 | 8 |
| Reduction Ratio | 20.4K | 35.8K, 45K, 50K | 78K, 99K, 110K, 122K, 127K | 217K, 241K, 268K, 298K, 331K | 478K, 531K, 590K, 656K, 729K |
| Length of Gearbox "L" mm | 20.8 | 23.2 | 25.6 | 28 | 29 |
| Gearbox Efficiency | 65% | 59% | 53% | 48% | 43% |
Gear Motor Mechanical Size:
Gear Motor Electric Data:
| Model Number | Rated Volt. | No Load | At Max Efficiency | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA | rpm | mA | Kgf.cm | W | mA | Kgf.cm | ||
| JQM-25RS31000310500-35K | 3V | 280 | ≤180 | 220 | ≤550 | 0.13 | 0.29 | ≥1350 | 0.5 |
| JQM-25RS3100037500-50K | 3V | 150 | ≤180 | 85 | ≤550 | 0.3 | 0.26 | ≥850 | 0.64 |
| JQM-25RS3100035000-78K | 3V | 63 | ≤95 | 47 | ≤235 | 0.15 | 0.07 | ≥635 | 0.59 |
| JQM-25RS3100032300-217K | 3V | 10 | ≤30 | 7 | ≤65 | 0.45 | 0.03 | ≥135 | 1.5 |
| JQM-25RS3104.58200-78K | 4.5V | 106 | ≤125 | 71 | ≤480 | 0.5 | 0.36 | ≥980 | 1.8 |
| JQM-25RS3104.59000-478K | 4.5V | 18 | ≤180 | 13 | ≤450 | 2.5 | 0.33 | ≥830 | 8 |
| JQM-25RS3100066000-20.4K | 6V | 236 | ≤150 | 170 | ≤300 | 0.23 | 0.40 | ≥500 | 0.7 |
| JQM-25RS3100066000-35.8K | 6V | 171 | ≤100 | 130 | ≤200 | 0.15 | 0.20 | ≥500 | 0.8 |
| JQM-25RS3100066000-217K | 6V | 27.6 | ≤75 | 20.3 | ≤275 | 1 | 0.21 | ≥500 | 3.4 |
| JQM-25RS3100064500-217K | 6V | 18 | ≤75 | 12.8 | ≤160 | 0.9 | 0.12 | ≥250 | 0.7 |
| JQM-25RS3100064500-355K | 6V | 12 | ≤50 | 8.7 | ≤105 | 1.1 | 0.10 | ≥240 | 4 |
| JQM-25RS3100129200-20.4K | 12V | 450 | ≤70 | 336 | ≤250 | 0.16 | 0.55 | ≥500 | 0.6 |
| JQM-25RS3100129200-45K | 12V | 204 | ≤110 | 137 | ≤340 | 0.5 | 0.70 | ≥540 | 1.5 |
| JQM-25RS3100129200-50K | 12V | 184 | ≤50 | 142 | ≤230 | 0.39 | 0.57 | ≥470 | 1.5 |
| JQM-25RS3100129200-122K | 12V | 75 | ≤100 | 56 | ≤270 | 0.85 | 0.49 | ≥500 | 3 |
| JQM-25RS3100129200-217K | 12V | 42 | ≤80 | 30 | ≤240 | 1.5 | 0.46 | ≥500 | 5.4 |
| JQM-25RS3100129200-531K | 12V | 17 | ≤75 | 13 | ≤240 | 2.5 | 0.33 | ≥400 | 8 |
| JQM-25RS3100124500-45K | 12V | 100 | ≤15 | 80 | ≤55 | 0.14 | 0.11 | ≥152 | 0.62 |
| JQM-25RS3100124500-99K | 12V | 45 | ≤35 | 28 | ≤60 | 0.45 | 0.13 | ≥100 | 1.3 |
| JQM-25RS3100126000-122K | 12V | 49 | ≤50 | 35 | ≤140 | 0.75 | 0.27 | ≥250 | 2.4 |
| JQM-25RS3100126000-478K | 12V | 12 | ≤80 | 6.7 | ≤180 | 3.3 | 0.23 | ≥220 | 8 |
| JQM-25RS31002412000-45K | 24V | 250 | ≤55 | 202 | ≤185 | 0.43 | 0.89 | ≥550 | 1.75 |
| JQM-25RS3100247300-122K | 24V | 60 | ≤40 | 42 | ≤80 | 0.76 | 0.33 | ≥145 | 2.3 |
| JQM-25RS3100248000-331K | 24V | 24 | ≤60 | 15 | ≤150 | 2 | 0.31 | ≥180 | 5 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
Notes: Above is our standard models for your reference, we can make as customer request.
Professional Factory:
Certificate Photos :
Packing:
Transportation:
Motor Application Fields:
Our motor products contain range:
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
