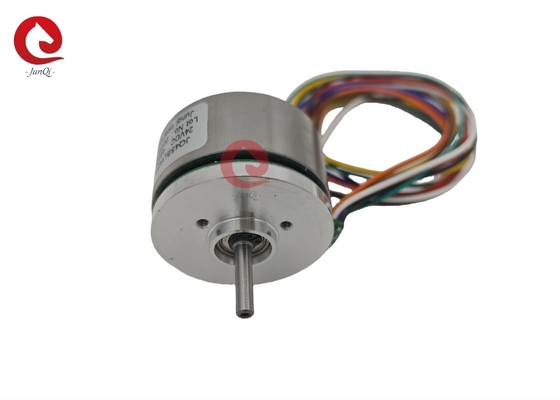

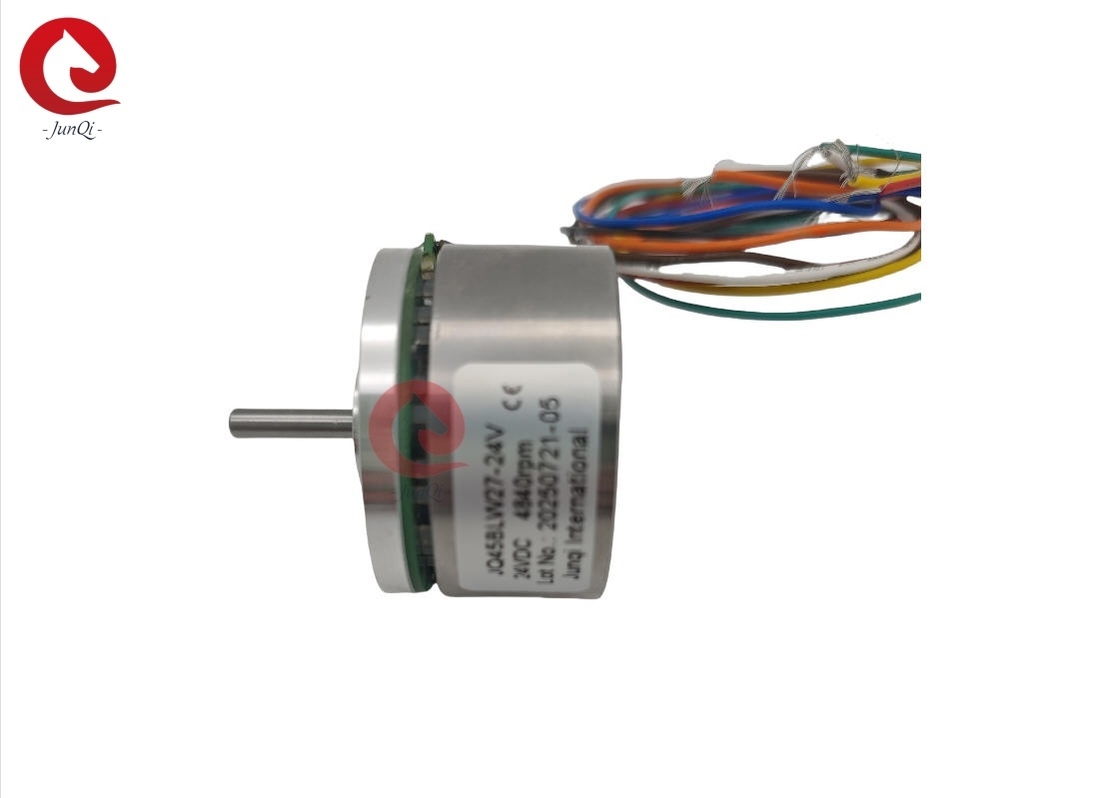

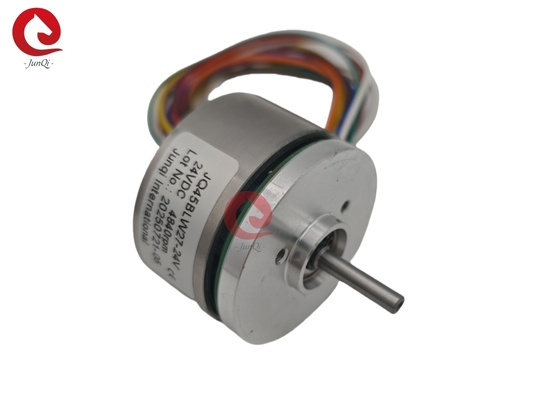

JUNQI JQ45BLW27 24V 4840rpm 130mN.m Torque Flat Out Rotor BLDC Motor

JUNQI JQ45BLW27 24V 4840rpm 130mN.m Torque Flat Out Rotor BLDC Motor

  • JUNQI JQ45BLW27 24V 4840rpm 130mN.m Torque Flat Out Rotor BLDC Motor
  • JUNQI JQ45BLW27 24V 4840rpm 130mN.m Torque Flat Out Rotor BLDC Motor
  • JUNQI JQ45BLW27 24V 4840rpm 130mN.m Torque Flat Out Rotor BLDC Motor
  • JUNQI JQ45BLW27 24V 4840rpm 130mN.m Torque Flat Out Rotor BLDC Motor
JUNQI JQ45BLW27 24V 4840rpm 130mN.m Torque Flat Out Rotor BLDC Motor
Product Details:
Place of Origin: China
Brand Name: Junqi
Certification: CE,ROHS, UL
Model Number: JQ45BLW27-24V
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: USD58-usd73.5 /pc (Negotiable)
Packaging Details: suite for export
Delivery Time: as confirmed
Payment Terms: T/T,PAYPAL
Supply Ability: 1000PCS/Month
Contact Now
Detailed Product Description
Product Name: Brushless DC Motor Commutation: Brushless
Model: JQ45BLW27-24V Rated Voltage: 24VDC
Rated Speed: 4840rpm Rated Current: 3.26A
Rated Torque: 130mN.m Weight: 150g
Highlight:

12V DC Electric Small gear Motor

,

80kg.cm DC Electric Small gear Motor

,

Sliding Gate Electric Small gear Motor

JUNQI  JQ45BLW27 24V 4840rpm 130mN.m Torque Flat Out Rotor BLDC Motor


Feature Summary:


1. Wide range of speed control and smooth torque output.

2. Excellent speed stability.

3. Small size, high power.

4. High efficiency, low temperature rise.


Technical Parameters:


Item JQ45BLW27-24V
Rated voltage 24VDC
Rated Torque 130mN.m
No load speed 6100±10% rpm
No load current ＜0.5A
Rated Speed 4840rpm
Rated Current 3.26A
Peak Current 9.5A
Peak Torque 390mN.m
Back EMF 2.75Vrms/kRPM
Number of Phase 3
Number of Poles 16
Line to Line Resistance 0.56±10% ohms@20℃
Line to Line Inductance 0.27±20% mH@1kHz
Totor Inertia 181g.cm²
Weight 150g



We can supply Extra service:

If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....

JUNQI JQ45BLW27 24V 4840rpm 130mN.m Torque Flat Out Rotor BLDC Motor 0

Certificate Photos :

JUNQI JQ45BLW27 24V 4840rpm 130mN.m Torque Flat Out Rotor BLDC Motor 1



Transportation:

JUNQI JQ45BLW27 24V 4840rpm 130mN.m Torque Flat Out Rotor BLDC Motor 2

FAQ:


Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit


Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.


Q: What’s Moq?

A: 5PCS. Small Order Welcome.


Q:Do You Make Customized Product?

A:Yes,We Accpet IT.


Q:About After Sale Serive?

A: After Sales Services 24/7.


Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.


Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details


Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.


For more information, please contact with us via email: ivanzhu@junqitrading.com

Tag:

57mm Brushless DC Electric Motor,

3000RPM Brushless DC Electric Motor,

42mm Brushless DC Electric Motor
