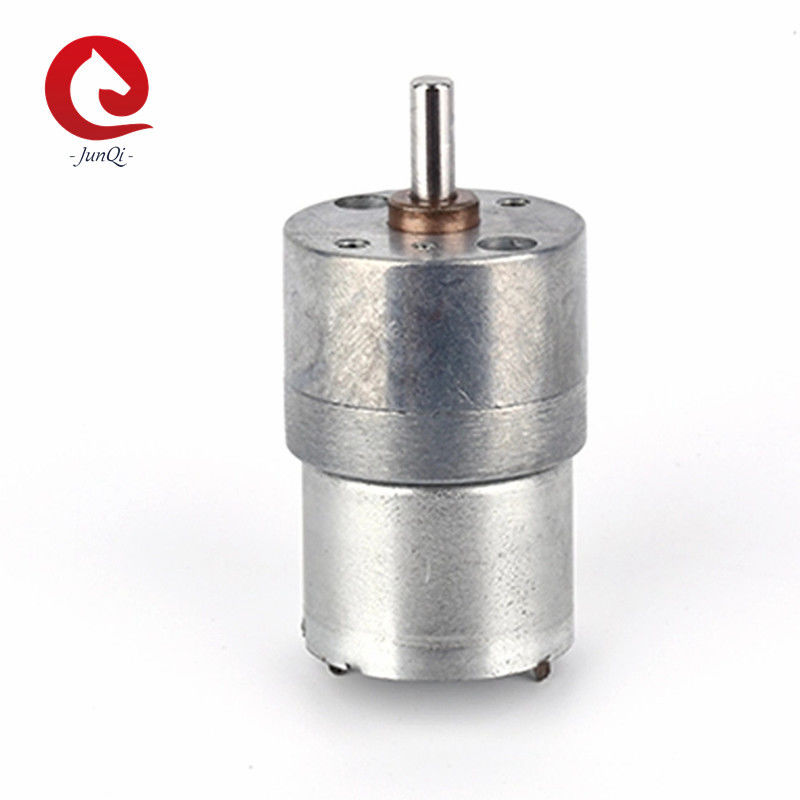

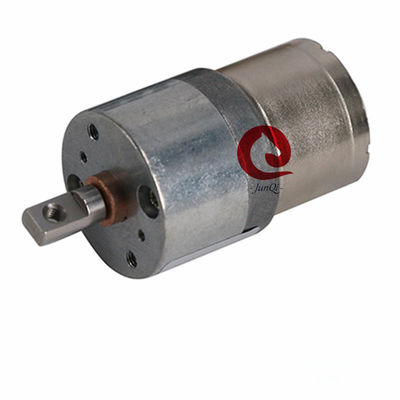

JQM-27RS 310 27mm Spur Gear DC Motor 6V/ 12V For Electric Toy

JQM-27RS 310 27mm Spur Gear DC Motor 6V/ 12V For Electric Toy

  • JQM-27RS 310   27mm Spur Gear DC Motor  6V/ 12V  For Electric Toy
  • JQM-27RS 310   27mm Spur Gear DC Motor  6V/ 12V  For Electric Toy
  • JQM-27RS 310   27mm Spur Gear DC Motor  6V/ 12V  For Electric Toy
  • JQM-27RS 310   27mm Spur Gear DC Motor  6V/ 12V  For Electric Toy
JQM-27RS 310   27mm Spur Gear DC Motor  6V/ 12V  For Electric Toy
Product Details:
Place of Origin: China
Brand Name: Junqi
Certification: CE,ROHS, UL
Model Number: JQM-27RS310
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD4-usd7/pc (Negotiable)
Packaging Details: suite for export
Delivery Time: as confirmed
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Product Name: DC Gear Motor Commutation: Brush
Model: JQM-27RS310 Voltage: 6~24VDC
Speed: 3.7~484RPM Power: 0.5W
Torque: 0.2~3kg.cm Construction: Permanent Magnet
Diameter: 27mm Application: BOAT, Car, Electric Bicycle, FAN, Home Appliance

JQM-27RS 310 27mm Spur Gear DC Motor 6V/ 12V For Electric Toy

JQM-27RS 310   27mm Spur Gear DC Motor  6V/ 12V  For Electric Toy 0





1. Main voltage: 3V, 6V, 12VDC, 24VDC
2. Typical applications: Automatic door-lock, projector, hairdressing equipment
3. Round Gearbox size: φ27mm*L
4. Torque: 0.1-3kgf.cm
5. Direction: CW, CCW
6. Voltage, speed, and shaft can be customized based



Driving Motor Data:



Motor model Rated Volt. No load Load Stall
Current Speed Current Speed Torque power Torque Current
V mA rpm mA rpm gf.cm W gf.cm mA
JQM-3100066000 6 ≤33 6000 ≤160 4800 10 0.5 ≥45 ≥550
JQM-3100129200 12 ≤33 9200 ≤100 8400 5 0.44 ≥51 ≥510
JQM-3100248000 24 ≤20 8000 ≤70 6400 10 0.67 ≥45 ≥190



Technical Data of Gearbox:

Reduction Stage 4 5 6 7 8
Reduction Ratio 19K, 27K 36K, 52K, 76K, 94K 100K, 145K, 210K 278K, 402K, 583K 771K, 1119K, 1621K
Length of Gearbox "L" mm 18 20 22 24 26
Gearbox Efficiency 65% 59% 53% 48% 43%



Gear Motor Mechanical Size:

JQM-27RS 310   27mm Spur Gear DC Motor  6V/ 12V  For Electric Toy 1



Gear Motor Electric Data:

Model Number Rated Volt. No Load At Max Efficiency Stall
Speed Current Speed Current Torque Power Current Torque
rpm mA rpm mA Kgf.cm W mA Kgf.cm
JQM-27RS3100096200-100K 9V 62 ≤80 47 ≤230 0.66 0.32 ≥480 2.1
JQM-27RS3100128000-52K 12V 153 ≤50 108 ≤200 0.35 0.39 ≥360 1.2
JQM-27RS3100129200-210K 12V 43 ≤110 30 ≤320 1.5 0.46 ≥490 4.7
JQM-27RS3700126000-210K 12V 28 ≤80 21 ≤300 2.9 0.63 ≥650 12
JQM-27RS3100129200-771K 12V 12 ≤45 10 ≤184 3.2 0.33 ≥490 16
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in

Notes: Above is our standard models for your reference, we can make as customer request.





Professional Factory:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 2





Certificate Photos :

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 3

Packing:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 4

Transportation:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 5

Motor Application Fields:


JQM-27RS 310   27mm Spur Gear DC Motor  6V/ 12V  For Electric Toy 6



Our motor products contain range:

JQM-27RS 310   27mm Spur Gear DC Motor  6V/ 12V  For Electric Toy 7



FAQ:



Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit



Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.



Q: What’s Moq?

A: 5PCS. Small Order Welcome.



Q:Do You Make Customized Product?

A:Yes,We Accpet IT.



Q:About After Sale Serive?

A: After Sales Services 24/7.



Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.



Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details



Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.
