Place of Origin: | China |
Brand Name: | Junqi |
Certification: | CE,ROHS, UL |
Model Number: | JQM-37RS520 |
Minimum Order Quantity: | 50pcs |
---|---|
Price: | USD5-usd8/pc (Negotiable) |
Packaging Details: | suite for export |
Delivery Time: | as confirmed |
Payment Terms: | L/C, T/T, Western Union,PAYPAL |
Supply Ability: | 10000PCS/Month |

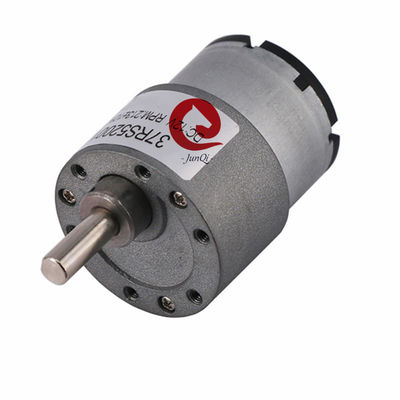

Product Name: | DC Gear Motor | Commutation: | Brush |
---|---|---|---|
Model: | JQM-37RS520 | Voltage: | 6~24VDC |
Speed: | 1.2~1675RPM | Power: | 0.1~3W |
Torque: | 0.3~15kg.cm | Construction: | Permanent Magnet |
Diameter: | 37mm | Application: | BOAT, Car, Electric Bicycle, FAN, Home Appliance |
Driving Motor Data:
Motor model | Rated Volt. | No load | Load | Stall | |||||
Current | Speed | Current | Speed | Torque | power | Torque | Current | ||
V | mA | rpm | mA | rpm | gf.cm | W | gf.cm | mA | |
JQM-5200063000 | 6 | ≤27 | 3000 | ≤130 | 2600 | 15 | 0.41 | ≥100 | ≥630 |
JQM-5200123000 | 12 | ≤16 | 3000 | ≤70 | 2400 | 20 | 0.5 | ≥90 | ≥330 |
JQM-5200126000 | 12 | ≤54 | 6000 | ≤150 | 5500 | 15 | 0.86 | ≥162 | ≥1220 |
JQM-52001212000 | 12 | ≤40 | 12000 | ≤135 | 9600 | 45 | 4.5 | ≥202 | ≥3780 |
JQM-5200244500 | 24 | ≤25 | 4500 | ≤90 | 3400 | 33 | 1.4 | ≥122 | ≥350 |
JQM-5200246000 | 24 | ≤30 | 6000 | ≤200 | 4800 | 38 | 2.3 | ≥171 | ≥660 |
JQM-5200249000 | 24 | ≤54 | 9000 | ≤200 | 7200 | 47 | 3.5 | ≥211 | ≥1670 |
Technical Data of Gearbox:
Reduction Stage | 2 | 3 | 4 | 5 | 6 | 7 |
Reduction Ratio | 6.8K, 10K | 20K, 30K | 61K, 90K | 107K, 122K, 184K, 270K | 311K, 552K, 414K, 810K | 1243K, 1657K, 2430K |
Length of Gearbox "L" mm | 18 | 21.5 | 24 | 26.5 | 29 | 31.5 |
Gearbox Efficiency | 81% | 73% | 65% | 59% | 53% | 47% |
Gear Motor Mechanical Size:
Gear Motor Electric Data:
Model Number | Rated Volt. | No Load | At Max Efficiency | Stall | |||||
Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
rpm | mA | rpm | mA | Kgf.cm | W | mA | Kgf.cm | ||
JQM-37RS5200036000-61K | 3V | 98 | ≤300 | 65 | ≤700 | 0.82 | 0.5 | ≥2000 | ≥3 |
JQM-37RS5200033000-552K | 3V | 5.4 | ≤100 | 4.5 | ≤180 | 2 | 0.1 | ≥650 | ≥17 |
JQM-37RS5204.55300-30K | 4.5V | 176 | ≤300 | 116 | ≤700 | 0.59 | 0.7 | ≥1400 | ≥1.9 |
JQM-37RS5200053000-61K | 5V | 50 | ≤80 | 37.5 | ≤190 | 0.8 | 0.3 | ≥800 | ≥3 |
JQM-37RS5200056000-90K | 5V | 66 | ≤150 | 45 | ≤560 | 1.7 | 0.8 | ≥1230 | ≥5.5 |
JQM-37RS5200063000-121K | 6V | 24 | ≤100 | 18 | ≤350 | 2 | 0.4 | ≥640 | ≥7 |
JQM-37RS5200063000-810K | 6V | 3.7 | ≤40 | 3.3 | ≤130 | 6.7 | 0.2 | ≥430 | ≥28 |
JQM-37RS5200126000-21K | 12V | 285 | ≤90 | 220 | ≤360 | 0.6 | 1.4 | ≥1050 | ≥2.5 |
JQM-37RS5200126000-61K | 12V | 100 | ≤180 | 68 | ≤600 | 2.3 | 1.6 | ≥1000 | ≥8 |
JQM-37RS5200126000-90K | 12V | 67 | ≤70 | 56.5 | ≤330 | 2 | 1.2 | ≥1700 | ≥11 |
JQM-37RS5200126000-270K | 12V | 22 | ≤180 | 15 | ≤500 | 8.9 | 1.4 | ≥1200 | ≥32 |
JQM-37RS5200126000-552K | 12V | 11 | ≤100 | 9 | ≤350 | 15.3 | 1.4 | ≥1100 | ≥72 |
JQM-37RS5200126000-810K | 12V | 7.4 | ≤75 | 6 | ≤450 | 16 | 1.0 | ≥1700 | ≥77 |
JQM-37RS5200126000-2430K | 12V | 2.5 | ≤80 | 2 | ≤200 | 18 | 0.4 | ≥1800 | ≥88 |
JQM-37RS5200124500-184K | 12V | 24 | ≤60 | 21 | ≤250 | 3.8 | 0.8 | ≥780 | ≥21 |
JQM-37RS5200123000-6.8K | 12V | 441 | ≤40 | 360 | ≤110 | 0.13 | 0.5 | ≥330 | ≥0.7 |
JQM-37RS5200123000-184K | 12V | 16 | ≤60 | 10 | ≤200 | 2.8 | 0.3 | ≥290 | ≥9 |
JQM-37RS5200123000-270K | 12V | 12 | ≤60 | 10 | ≤100 | 2 | 0.2 | ≥380 | ≥20 |
JQM-37RS5200123000-311K | 12V | 10 | ≤40 | 8 | ≤150 | 5 | 0.4 | ≥330 | ≥20 |
JQM-37RS5200123000-552K | 12V | 5.5 | ≤40 | 4 | ≤120 | 4 | 0.2 | ≥350 | ≥16 |
JQM-37RS5200123000-1656K | 12V | 2 | ≤30 | 1.6 | ≤90 | 9 | 0.1 | ≥145 | ≥30 |
JQM-37RS5200121500-810K | 12V | 1.7 | ≤8 | 1 | ≤23 | 4 | 0.04 | ≥55 | ≥15 |
JQM-37RS5200123000-1656K | 12V | 2 | ≤5 | 1.2 | ≤70 | 18 | 0.2 | ≥130 | ≥54 |
JQM-37RS5200186500-90K | 18V | 72 | ≤70 | 59 | ≤200 | 2.6 | 1.6 | ≥850 | ≥12 |
JQM-37RS5200249000-10K | 24V | 900 | ≤170 | 672 | ≤760 | 0.6 | 4.1 | ≥1600 | ≥2.4 |
JQM-37RS5200246000-10K | 24V | 600 | ≤60 | 455 | ≤250 | 0.38 | 1.8 | ≥660 | ≥1.8 |
JQM-37RS5200246000-21K | 24V | 286 | ≤70 | 224 | ≤240 | 0.7 | 1.6 | ≥500 | ≥2.5 |
JQM-37RS5200246000-30K | 24V | 200 | ≤40 | 158 | ≤180 | 1 | 1.6 | ≥620 | ≥5 |
JQM-37RS5200246000-184K | 24V | 32 | ≤80 | 23 | ≤280 | 5.9 | 1.4 | ≥520 | ≥21 |
JQM-37RS5200244500-61K | 24V | 75 | ≤35 | 58 | ≤110 | 1.3 | 0.8 | ≥340 | ≥6.8 |
JQM-37RS5200244500-270K | 24V | 16 | ≤40 | 13 | ≤85 | 5 | 0.7 | ≥280 | ≥20 |
JQM-37RS52002411000-552K | 24V | 20 | ≤120 | 13 | ≤700 | 20 | 2.7 | ≥1400 | ≥47 |
JQM-37RS5200243000-810K | 24V | 3.5 | ≤10 | 3 | ≤38 | 7.6 | 0.2 | ≥105 | ≥32 |
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in |
Notes: Above is our standard models for your reference, we can make as customer request.
1. Main voltage: 3-24V DC
2. Typical applications: Automatic door-lock, projector, hairdressing equipment
3. ound Gearbox size: 37φ*L
4. Torque: 0.2-15 kgf.cm
5. Direction:CW, CCW
6. Voltage, speed, and shaft can be customized based
Professional Factory:
Certificate Photos :
Packing:
Transportation:
Motor Application Fields:
Our motor products contain range:
FAQ:
Q:How long is the lead time of orders?
A:Lead time : 4 weeks after receive the deposit
Q:What is your trade Assurance?
A:100% product quality protection.
100% product on time shipment protection.
100% payment protection for your covered amount.
Q: What’s Moq?
A: 5PCS. Small Order Welcome.
Q:Do You Make Customized Product?
A:Yes,We Accpet IT.
Q:About After Sale Serive?
A: After Sales Services 24/7.
Q: What should I do if I'm not satisfied with your product?
A: If there are defects in its quality, we can exchange a good one for you.
Generally, this problem is rare.
Q:What is the payment term?
A:T/T and Paypal is used more,please contact us for details
Q:What is the quality level of your product?
A:We produce good quality, refuse to produce low quality.
