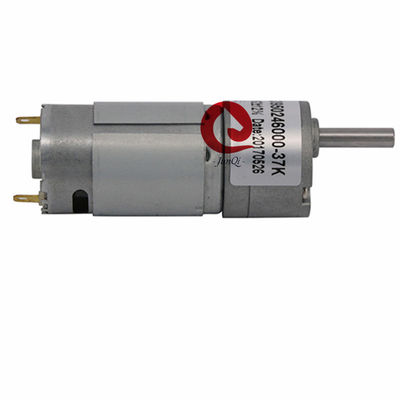

30mm 12V 24VDC Brush Motor

30mm 12V 24VDC Brush Motor

  • 30mm 12V 24VDC Brush Motor
  • 30mm 12V 24VDC Brush Motor
  • 30mm 12V 24VDC Brush Motor
  • 30mm 12V 24VDC Brush Motor
30mm 12V 24VDC Brush Motor
Product Details:
Place of Origin: China
Brand Name: Junqi
Certification: CE,ROHS, UL
Model Number: JQM-30RS395
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD4-usd7/pc (Negotiable)
Packaging Details: suite for export
Delivery Time: as confirmed
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Product Name: DC Gear Motor Commutation: Brush
Model: JQM-30RS395 Speed: 3~362rpm
Torque: 0.5~5kg.cm Construction: Permanent Magnet
Diameter: 30mm Protect Feature: Totally Enclosed
Efficiency: IE2 Application: BOAT, Car, Electric Bicycle, FAN, Home Appliance
Highlight:

30mm Voice Coil Motor

,

362rpm DC Brush Motor

,

395 Voice Coil Motor

JQM-30RS 395 30mm 12V 24V High Speed Gearbox Reducer DC Brush Motor Voice Coil Motor







Driving Motor Data:

Motor model

Rated

Volt.

No load Load Stall
Current Speed Current Speed Torque

Output

power

Torque Current
V mA r/min mA r/min gf.cm W gf.cm mA
JQM-395-012-3000 12 ≤60 3000 ≤250 2200 65 1.5 ≥208 ≥740
JQM-395-012-4500 12 ≤90 4500 ≤430 3300 80 2.7 ≥410 ≥1700
JQM-395-012-6000 12 ≤130 6000 ≤750 4800 100 4.9 ≥510 ≥2800
JQM-395-024-3000 24 ≤40 3000 ≤120 2200 65 1.5 ≥220 ≥380
JQM-395-024-4500 24 ≤60 4500 ≤220 3300 80 2.7 ≥360 ≥820
JQM-395-024-6000 24 ≤80 6000 ≤380 4800 100 4.9 ≥580 ≥1700



Technical Data of Gearbox:

Number of stages 4 5 6 7 8
Reduction ratio 37 88,114,131

206,265,305

341,392,450

619,711,796 914,1049,1548

1857,2132

2387,2447

Gearbox length "L"mm 22.2 24.8 27.4 30 32.6
Breaking torque(kgf.cm) 10 12 16 20 20
Gearbox efficiency 65% 59% 53% 48% 43%



Gear Motor Mechanical Size:

30mm 12V 24VDC Brush Motor 0

Gear Motor Electric Data:

Motor model

Rated

Volt.

No load Load Stall
Current Speed Current Speed Torque Output power Torque Current
V A r/min A r/min kgf.cm W kgf.cm A
JQM-30RS3950123000-88K 12.0 0.05 34.3 0.20 27.5 2.8 0.78 13.9 0.83
JQM-30RS3950126500-36.7K 12.0 0.23 172.2 0.87 133.7 3.3 4.47 14.5 3.10
JQM-30RS39501212000-20K 12.0 0.34 595.8 1.56 494.9 1.7 8.53 9.9 7.54
JQM-30RS3950246000-88K 24.0 0.11 68.4 0.41 54.3 6.4 3.54 30.8 1.59
JQM-30RS39502411000-36.7K 24.0 0.18 303.8 0.95 245.4 3.8 9.63 19.9 4.16

Remark:
Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...
Welcome OEM or ODM projects



Notes: Above is our standard models for your reference, we can make as customer request.





Professional Factory:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 2





Certificate Photos :

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 3

Packing:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 4

Transportation:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 5

Motor Application Fields:


30mm 12V 24VDC Brush Motor 5



Our motor products contain range:

30mm 12V 24VDC Brush Motor 6



FAQ:



Q: How long is the lead time of orders?

A: Lead time : 4 weeks after receive the deposit



Q: What is your trade Assurance?

A: 100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.



Q: What’s Moq?

A: 5PCS. Small Order Welcome.



Q: Do You Make Customized Product?

A: Yes,We Accpet IT.



Q: About After Sale Serive?

A: After Sales Services 24/7.



Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.



Q: What is the payment term?

A: T/T and Paypal is used more,please contact us for details



Q: What is the quality level of your product?

A : We produce good quality, refuse to produce low quality.
