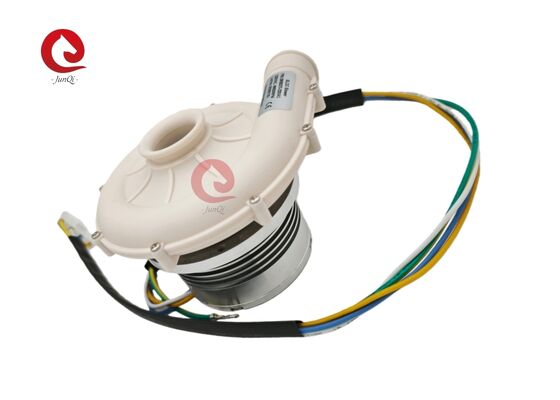

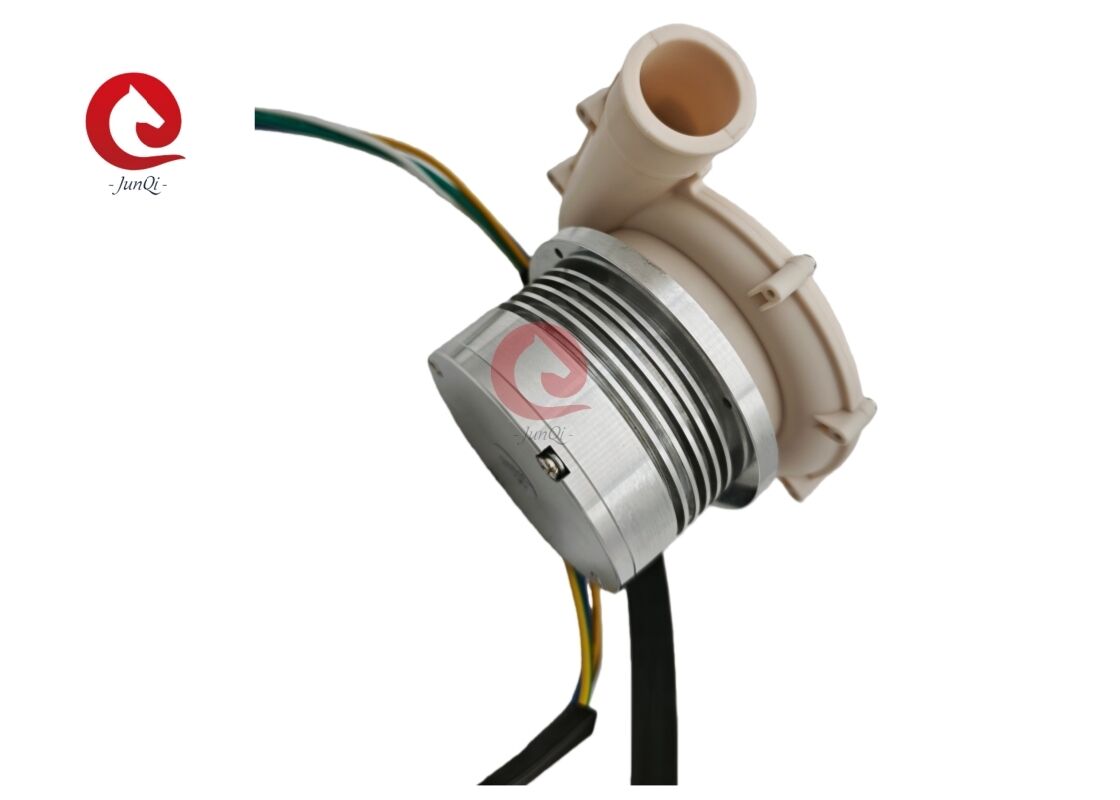

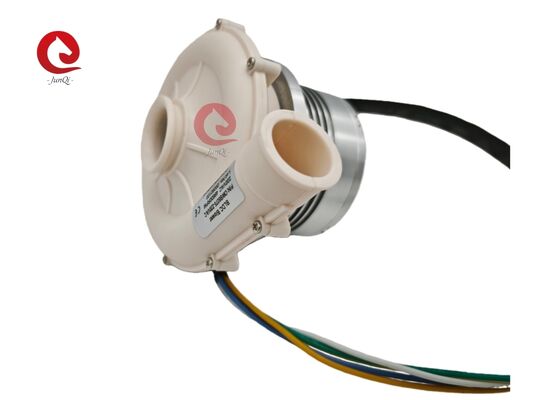

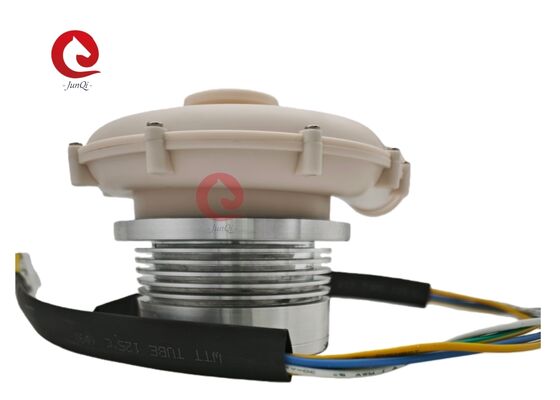

JUNQI 24V 25Kpa 52000rpm Brushless DC Blower Fan OWB9275-24V For Sampling Instrument

Product Details:

Place of Origin:	China
Brand Name:	Junqi
Certification:	CE,ROHS,
Model Number:	OWB9275-24V

Payment & Shipping Terms:

Minimum Order Quantity:	5pcs
Price:	Negotiable
Packaging Details:	suite for export
Delivery Time:	as confirmed
Payment Terms:	T/T,PAYPAL
Supply Ability:	1000PCS/Month

Contact Now

Detailed Product Description

Product Name:	BLDC Blower	Model:	OWB9275-24V
Voltage:	24V	Power:	528W
Speed:	52000rpm	Air Pressure:	25kpa
Air Volume:	1500L/min	Size:	969380
Highlight:	5kg.cm DC Geared Motors , 362rpm Speed Reduction Motor , IE2 DC Geared Motors

JUNQI 24V 25Kpa 52000rpm Brushless DC Blower Fan OWB9275-24V For Sampling Instrument

Technical Parameters:

Model	OWB9275-24V
Max.continuous operating state	Unit	Data
Rated Voltage	VAC	24
Rated Current	A	22
Power consumption	W	528
Free blowing speed	rpm	52000
Max.air pressure(Flow=0)	Kpa	25
Power@Max.pressure	W	218
Speed@Max.pressure	rpm	65000
Max air Flow (Pressure=0)	L/min	1500
Power@Max. flow	W	496.8
Speed @ Max.flow	rpm	56000
Min Air flow	L/min	50

Performance Curve:

JUNQI 24V 25Kpa 52000rpm Brushless DC Blower Fan OWB9275-24V For Sampling Instrument 0

JUNQI 24V 25Kpa 52000rpm Brushless DC Blower Fan OWB9275-24V For Sampling Instrument 1

Dimensions:

JUNQI 24V 25Kpa 52000rpm Brushless DC Blower Fan OWB9275-24V For Sampling Instrument 2

Applications:

Clinical ventilator; Home ventilator; Breathing machine;Fuel cell;Express air cushion machine;Beauty air cooler;Sampling instrument;Expectorant vest.

JUNQI 24V 25Kpa 52000rpm Brushless DC Blower Fan OWB9275-24V For Sampling Instrument 3
