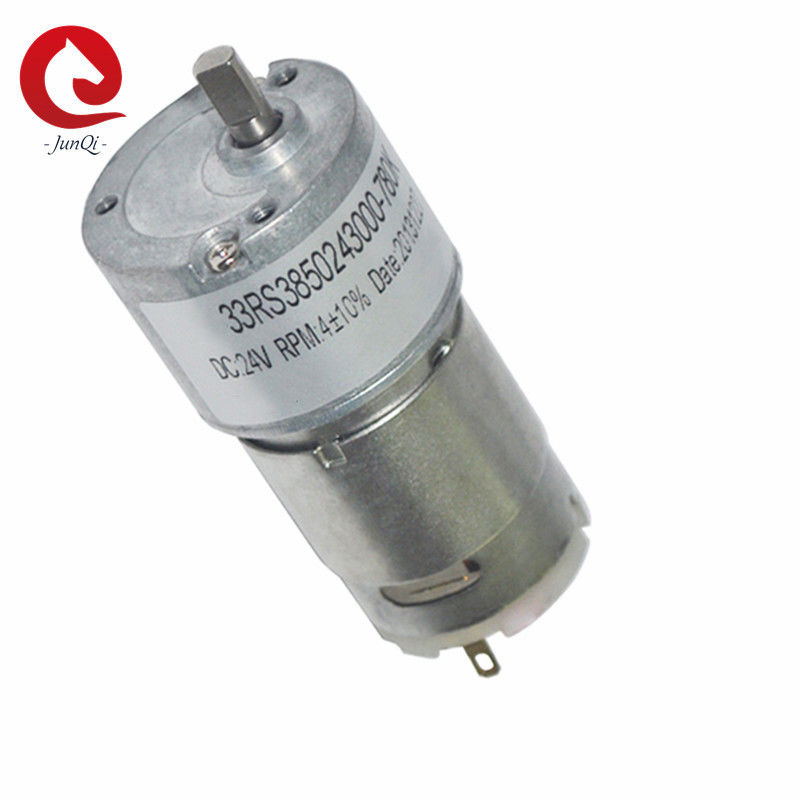

370rpm 12V 24V IE4 Spur DC Geared Motors For Auto Shutter

370rpm 12V 24V IE4 Spur DC Geared Motors For Auto Shutter

  • 370rpm 12V 24V IE4 Spur DC Geared Motors For Auto Shutter
  • 370rpm 12V 24V IE4 Spur DC Geared Motors For Auto Shutter
  • 370rpm 12V 24V IE4 Spur DC Geared Motors For Auto Shutter
  • 370rpm 12V 24V IE4 Spur DC Geared Motors For Auto Shutter
370rpm 12V 24V IE4 Spur DC Geared Motors For Auto Shutter
Product Details:
Place of Origin: China
Brand Name: Junqi
Certification: CE,ROHS, UL
Model Number: JQM-33RS385
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD4-usd8/pc (Negotiable)
Packaging Details: suite for export
Delivery Time: as confirmed
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Product Name: DC Gear Motor Commutation: Brush
Model: JQM-33RS385 Speed: 3.8~370rpm
Torque: 0.9~20kg.cm Construction: Permanent Magnet
Diameter: 33mm Protect Feature: Explosion-proof
Efficiency: IE4 Application: BOAT, Car, Electric Bicycle, FAN, Home Appliance
High Light:

370rpm Spur PMDC Geared Motors

,

IE4 Spur Gear Motor

,

33mm DC Geared Motors

12V 24V Spur PMDC Geared Motor Reversible For Auto Shutter JQM-33RS385







Driving Motor Data:

Motor model Rated Volt. No load Load Stall
Current Speed Current Speed Torque power Torque Current
V mA rpm mA rpm gf.cm W gf.cm mA
JQM-3850123000 12 ≤70 3000 ≤260 1950 50 1.02 ≥128 ≥520
JQM-3850124500 12 ≤90 4500 ≤460 3500 50 1.83 ≥202 ≥1300
JQM-3850129000 12 ≤200 9000 ≤670 7800 50 4.00 ≥340 ≥2900
JQM-3850243300 24 ≤80 3300 ≤250 2750 74 2.13 ≥400 ≥440
JQM-3850247400 24 ≤120 7400 ≤370 6400 60 4.02 ≥400 ≥1580



Technical Data of Gearbox:

Reduction Stage 3 4 5 6 7
Reduction Ratio 20K 50K 125K 312.5K 781K
Length of Gearbox "L" mm 17.7 19.9 22.2 24.4 26.75
Gearbox Efficiency 73% 65% 59% 53% 47%



Gear Motor Mechanical Size:

370rpm 12V 24V IE4 Spur DC Geared Motors For Auto Shutter 0

Gear Motor Electric Data:



Model Number Rated Volt. No Load At Max Efficiency Stall
Speed Current Speed Current Torque Power Current Torque
rpm mA rpm mA Kgf.cm W mA Kgf.cm
JQM-33RS3850125000-20K 12V 250 ≤200 176 ≤460 0.9 1.63 ≥910 2.9
JQM-33RS3850246000-312.5K 24V 19 ≤100 16 ≤400 12.6 2.07 ≥900 48
JQM-33RS3850243000-312.5K 24V 10 ≤50 9 ≤100 3 0.28 ≥300 25
JQMD-33RS3850243000-781K 24V 3.8 ≤60 2.8 ≤130 20 0.57 ≥300 80
C

Remark:
Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...
Welcome OEM or ODM projects



Notes: Above is our standard models for your reference, we can make as customer request.





Professional Factory:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 2





Certificate Photos :

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 3

Packing:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 4

Transportation:

NEMA43 110*110m Brushless DC Motor1.4KW 60VDC(115VAC) 3000RPM  Max 4.5N.m TorqueBLDC DC motor 5

Motor Application Fields:


370rpm 12V 24V IE4 Spur DC Geared Motors For Auto Shutter 5







FAQ:



Q: How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit



Q: What is your trade Assurance?

A: 100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.



Q: What’s Moq?

A: 5PCS. Small Order Welcome.



Q: Do You Make Customized Product?

A: Yes,We Accpet IT.



Q: About After Sale Serive?

A: After Sales Services 24/7.



Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.



Q: What is the payment term?

A: T/T and Paypal is used more,please contact us for details



Q: What is the quality level of your product?

A: We produce good quality, refuse to produce low quality.
