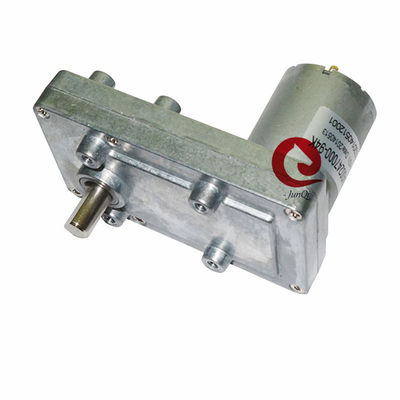

95mm 12v Dc Motor High Torque Low Rpm Right Angle Gear Motor

95mm 12v Dc Motor High Torque Low Rpm Right Angle Gear Motor

  • 95mm 12v Dc Motor High Torque Low Rpm Right Angle Gear Motor
  • 95mm 12v Dc Motor High Torque Low Rpm Right Angle Gear Motor
  • 95mm 12v Dc Motor High Torque Low Rpm Right Angle Gear Motor
95mm 12v Dc Motor High Torque Low Rpm Right Angle Gear Motor
Product Details:
Place of Origin: China
Brand Name: Junqi
Certification: CE,ROHS, UL
Model Number: JQM-95SS3540
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: USD9-usd14/pc (Negotiable)
Packaging Details: suite for export
Delivery Time: as confirmed
Payment Terms: L/C, T/T, Western Union,PAYPAL
Supply Ability: 10000PCS/Month
Contact Now
Detailed Product Description
Product Name: DC Gear Motor Commutation: Brush
Model: JQM-95SS3540 Speed: 2.5~64rpm
Torque: 5~50kg.cm Construction: Permanent Magnet
Diameter: 95mm Protect Feature: Explosion-proof
Efficiency: IE1 Application: BOAT, Car, Electric Bicycle, FAN, Home Appliance
Highlight:

95mm right angle gear motor

,

95mm low speed gear motor

,

12V right angle gear motor

JQM-95SS3540 95mm Gearbox 12V/24V High Torque Low Speed DC Right Angle Gear Head Motor







Driving Motor Data:

Motor model Rated Volt. No load Load Stall
Current Speed Current Speed Torque power Torque Current
V mA rpm mA rpm gf.cm W gf.cm mA
JQM-35400124500 12 ≤50 4500 ≤420 3600 96 3.62 ≥430 ≥1790
JQM-35400126000 12 ≤59 6000 ≤513 5100 100 5.34 ≥600 ≥2180
JQM-35400244500 24 ≤45 4500 ≤215 3600 97 3.66 ≥436 ≥910
JQM-35400247000 24 ≤38 7000 ≤411 5100 115 6.14 ≥380 ≥1750



Technical Data of Gearbox:

Reduction Stage 3 4 5
Reduction Ratio 94K 394K 1166K
Length of Gearbox "L" mm 16 16 16
Gearbox Efficiency 73% 65% 59%



Gear Motor Mechanical Size:

95mm 12v Dc Motor High Torque Low Rpm Right Angle Gear Motor 0

Gear Motor Electric Data:

Model Number Rated Volt. No Load At Max Efficiency Stall
Speed Current Speed Current Torque Power Current Torque
rpm mA rpm mA Kgf.cm W mA Kgf.cm
JQM-95SS35400124500-94K 12V 48 ≤150 35 ≤800 9 3.23 / /
JQM-95SS35400128000-196K 12V 40 ≤240 30 ≤1400 16 4.93 / /
JQM-95SS35400247000-94K 24V 74 ≤350 44 ≤1000 10 4.52 ≥1500 ≥32
JQM-95SS35400247000-394K 24V 17 ≤150 13 ≤550 30 4.00 ≥2400 ≥100
JQM-95SS35400246000-1166K 24V 5.1 ≤80 4.1 ≤500 70 2.95 ≥1150 ≥300
Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in

Remark:

Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...
Welcome OEM or ODM projects



Notes: Above is our standard models for your reference, we can make as customer request.





Professional Factory:

95mm 12v Dc Motor High Torque Low Rpm Right Angle Gear Motor 1





Certificate Photos :

95mm 12v Dc Motor High Torque Low Rpm Right Angle Gear Motor 2

Packing:

95mm 12v Dc Motor High Torque Low Rpm Right Angle Gear Motor 3

Transportation:

95mm 12v Dc Motor High Torque Low Rpm Right Angle Gear Motor 4

Motor Application Fields:


95mm 12v Dc Motor High Torque Low Rpm Right Angle Gear Motor 5







FAQ:



Q: How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit



Q: What is your trade Assurance?

A: 100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.



Q: What’s Moq?

A: 5PCS. Small Order Welcome.



Q: Do You Make Customized Product?

A: Yes,We Accpet IT.



Q: About After Sale Serive?

A: After Sales Services 24/7.



Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.



Q: What is the payment term?

A: T/T and Paypal is used more,please contact us for details



Q: What is the quality level of your product?

A: We produce good quality, refuse to produce low quality.
