| Place of Origin: | China |
| Brand Name: | Junqi |
| Certification: | CE,ROHS, UL |
| Model Number: | JQM-37RS545 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | USD5-usd8/pc (Negotiable) |
| Packaging Details: | suite for export |
| Delivery Time: | as confirmed |
| Payment Terms: | L/C, T/T, Western Union,PAYPAL |
| Supply Ability: | 10000PCS/Month |

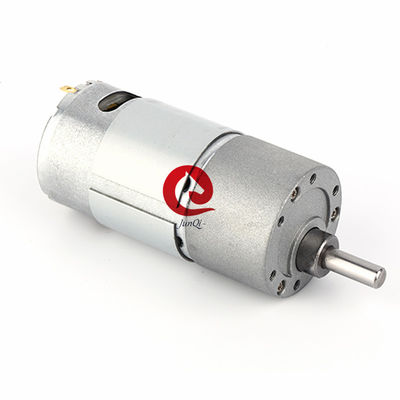

| Product Name: | DC Gear Motor | Commutation: | Brush |
|---|---|---|---|
| Model: | JQM-37RS545 | Speed: | 1.2~882rpm |
| Voltage: | 6~24V | Torque: | 1~30kg.cm |
| Power: | 2~7.3W | Construction: | Permanent Magnet |
| Diameter: | 37mm | Protect Feature: | Totally Enclosed |
| Efficiency: | IE4 | Application: | BOAT, Car, Electric Bicycle, FAN, Home Appliance |
| High Light: | 6VDC Brushed Motor,37mm brushed dc electric motor,Spur Gear DC Brushed Motor |
||
Driving Motor Data:
| Motor model | Rated Volt. | No load | Load | Stall | |||||
| Current | Speed | Current | Speed | Torque | power | Torque | Current | ||
| V | mA | r/min | mA | r/min | gf.cm | W | gf.cm | mA | |
| JQM-545-012-3000 | 12 | ≤120 | 3000 | ≤282 | 2400 | 112 | 2.81 | ≥480 | ≥1200 |
| JQM-545-024-3000 | 24 | ≤92 | 3000 | ≤229 | 2400 | 86 | 2.16 | ≥430 | ≥970 |
| JQM-545-024-6000 | 24 | ≤192 | 6000 | ≤765 | 4800 | 172 | 8.65 | ≥730 | ≥3250 |
Technical Data of Gearbox:
| Reduction Stage | 2 | 3 | 4 | 5 | 6 | 7 |
| Reduction Ratio | 6.8K, 10K | 20K, 30K | 61K, 90K | 107K, 122K, 184K, 270K | 311K, 552K, 414K, 810K | 1243K, 1657K, 2430K |
| Length of Gearbox "L" mm | 18 | 21.5 | 24 | 26.5 | 29 | 31.5 |
| Gearbox Efficiency | 81% | 73% | 65% | 59% | 53% | 47% |
Gear Motor Mechanical Size:
Gear Motor Electric Data:
| Model Number | Rated Volt. | No Load | At Max Efficiency | Stall | |||||
| Speed | Current | Speed | Current | Torque | Power | Current | Torque | ||
| rpm | mA | rpm | mA | Kgf.cm | W | mA | Kgf.cm | ||
| JQM-37RS5450125000-21K | 12V | 238 | 280 | 198 | 1100 | 2.4 | 4.9 | 3400 | 10.7 |
| JQM-37RS5450123000-30K | 12V | 100 | 180 | 78 | 550 | 2.5 | 2.0 | 1200 | 8.5 |
| JQM-37RS5450126000-60K | 12V | 100 | 600 | 77 | 1950 | 9.3 | 7.3 | 5350 | 38 |
| JQM-37RS5450123400-90K | 12V | 37 | 270 | 28 | 950 | 11.9 | 3.4 | 2540 | 46.8 |
| JQM-37RS5450124500-121 | 12V | 37 | 350 | 28 | 1150 | 16.5 | 4.7 | 2900 | 61 |
| JQM-37RS5450244500-90K | 24V | 50 | 160 | 42 | 570 | 10 | 4.3 | 2100 | 50 |
| JQM-37RS5450244500-121K | 24V | 37 | 150 | 31 | 600 | 11 | 3.5 | 2000 | 58 |
| JQM-37RS5450243000-184K | 24V | 16 | 90 | 13 | 300 | 14 | 1.9 | 950 | 68 |
| JQM-37RS5450246000-310K | 24V | 19 | 350 | 16 | 3500 | 26 | 4.3 | 15000 | 48 |
| JQM-37RS5450246000-534K | 24V | 11 | 220 | 9 | 860 | 60 | 5.5 | 2700 | 260 |
| Remark: 1 Kgf.cm≈0.098 N.m≈14 oz.in 1 mm≈0.039 in | |||||||||
Remark:
Gear Motor Torque=Driving motor torque*Reduction ratio*Gearbox efficiency;
Gear Motor Speed=Driving motor speed/Reduction ratio
Motor detailed config can be customized according to customer's requests,
like voltage,speed,as well as shaft length and shape...
Welcome OEM or ODM projects
Notes: Above is our standard models for your reference, we can make as customer request.
