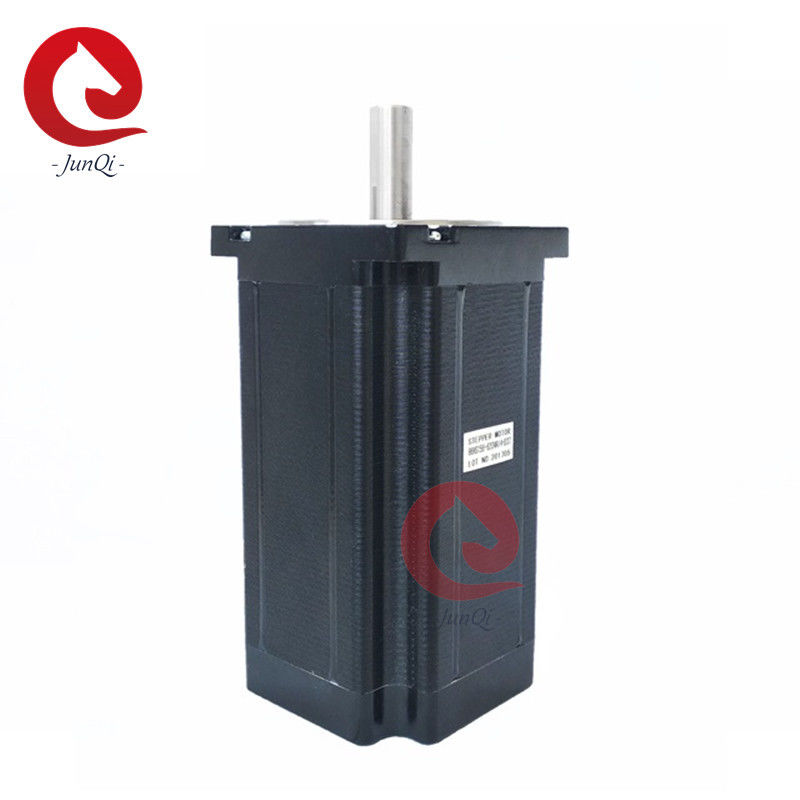

High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine

High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine

  • High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine
  • High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine
  • High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine
  • High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine
High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine
Product Details:
Place of Origin: Changzhou,China
Brand Name: Junqi
Certification: CE, RoHs, REACH
Model Number: JQ86HS156 Series
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: Negotiable
Packaging Details: CTN
Delivery Time: 4weeks after get payment (base on order),
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 10000set/month
Contact Now
Detailed Product Description
Type: STEPPER MOTOR Model Number: JQ86HS156-5504 / JQ86HS156-6204
Frame Size: 86mm Rated Torque: 120kg.cm / 122kg.cm
Number Of Phase: 2 Phase Body Length: 156mm
Usage: Automotive, Packing Machine Shape: Square
Step Angle: 1.8 Degree Rated Current: 5.5A/6.2A
Weight: 5.5kg
High Light:

5.5A Hybrid Stepper Motor

,

Nema34 Hybrid Stepper Motor

,

High Torque 12N.m Electric Stepper Motors

High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepping Motor JQ86HS156 For Packing Machine



Quick Details:

Item Specifications
Step Angle Accuracy ±5%
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Temperature Rise 80℃ Max
Ambient Temperature -20℃~+50℃
Dielectric Strength 100MΩMin.500VDC
Dielectric Strength 500VAC for one minute
Shaft Radial Play 0.02Max.(450g-load)
Shaft Axial Play 0.08Max.(450g-load)





Mechanical Size and Electric Connection:

High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine 0

Warm Tips: L1 and L2 canbe customized according to customers' requirements.

High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine 1



Electricl Specification:





Model No Step
Angle
(°)
Rated
Voltage
(V)
Rated
Current
(A)
Phase
Resistance
(Ω)
Phase
Inductance
(mH)
Holding
Torque
(Kg.cm)
Rotor
Inertia
(g.cm²)
Motor
Length
(mm)
Leads No. Motor
Weight
(Kg)
JQ86HS65-3004 1.8 3.3 3 1.1 6.5 28 1000 65 4 1.7
JQ86HS68-4004 1.8 1.3 4 0.33 1.6 35 1200 68 4 1.7
JQ86HS78-4004 1.8 1.5 4 0.38 2.5 35 1400 78 4 2.3
JQ86HS78-4204 1.8 1.9 4.2 0.45 4 45 1400 78 4 2.3
JQ86HS78-6008 1.8 3.0 6 0.5 4 45 1400 78 8 2.3
JQ86HS82-4504 1.8 1.4 4.5 0.32 2.8 45 1500 82 4 2.5
JQ86HS82-5608 1.8 2.0 5.6 0.35 3 50 1500 82 8 2.5
JQ86HS100-5004 1.8 2.5 5 0.5 4 68 2100 100 4 3.2
JQ86HS100-5008 1.8 2.5 5 0.5 4 65 2100 100 8 3.2
JQ86HS118-6004 1.8 3.6 6 0.6 6 85 2700 118 4 3.7
JQ86HS118-5608 1.8 3.4 5.6 0.6 6 85 2700 156 8 3.7
JQ86HS156-5504 1.8 3.9 5.5 0.7 9 120 4000 156 4 5.5
JQ86HS156-6204 1.8 3.6 6.2 0.75 9 122 4000 156 8 5.5
Above only for representative products, products of special request can be made according to the customer request.



**Notes: Above is standard motor, we can be designed &manufactured with customized request!!



Motor details:

High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine 2High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine 3



We can supply Extra service:



If this motor do not match with your request. Please feel free to contact with us,We can make customized shaft / winding / mounting flange / cable / connector.We will works side-by-side with you and your team to design a motor that will fit the precise needs of your application. All Engineering and Support is done in-house.

Accessories service: gearbox, connector

Customized Design: Customized Winding, Customized Flange, Customized Shaft....





Professional Factory:

High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine 4





Certificate Photos :

High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine 5

Packing:

High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine 6

Transportation:

High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine 7

Motor Application Fields:

High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine 8High Torque 12N.m Nema34 6.2/5.5A Hybrid Stepper Motor For Packing Machine 9



FAQ:



Q:How long is the lead time of orders?

A:Lead time : 4 weeks after receive the deposit



Q:What is your trade Assurance?

A:100% product quality protection.

100% product on time shipment protection.

100% payment protection for your covered amount.



Q: What’s Moq?

A: 5PCS. Small Order Welcome.



Q:Do You Make Customized Product?

A:Yes,We Accpet IT.



Q:About After Sale Serive?

A: After Sales Services 24/7.



Q: What should I do if I'm not satisfied with your product?

A: If there are defects in its quality, we can exchange a good one for you.

Generally, this problem is rare.



Q:What is the payment term?

A:T/T and Paypal is used more,please contact us for details



Q:What is the quality level of your product?

A:We produce good quality, refuse to produce low quality.
