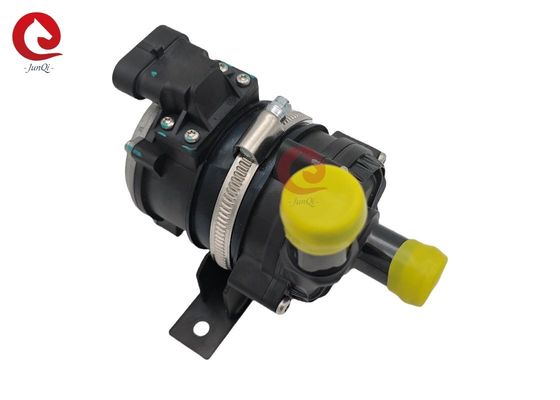

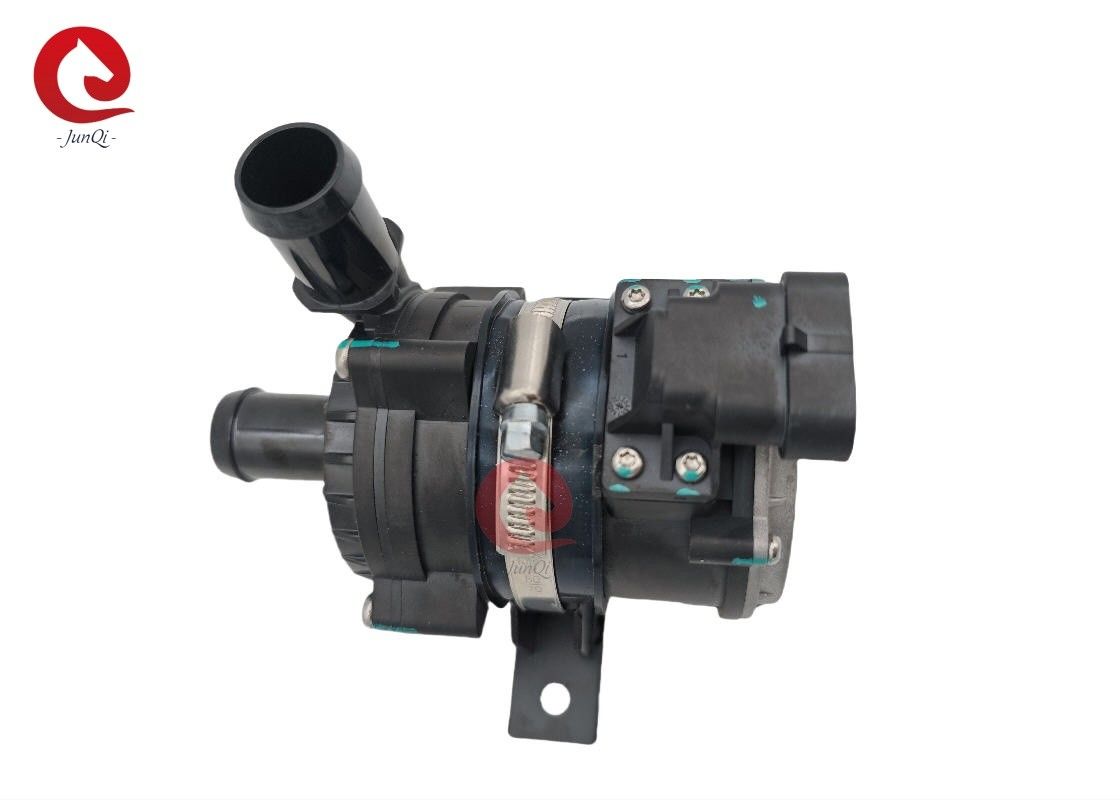

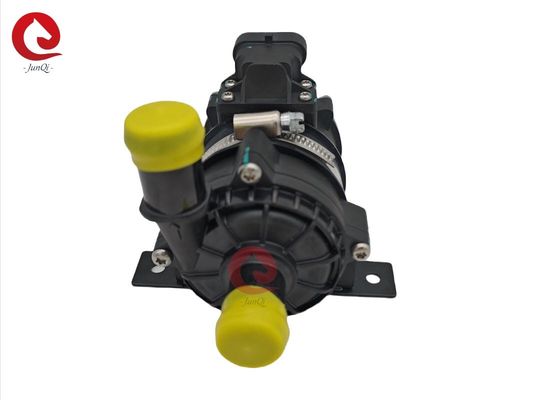

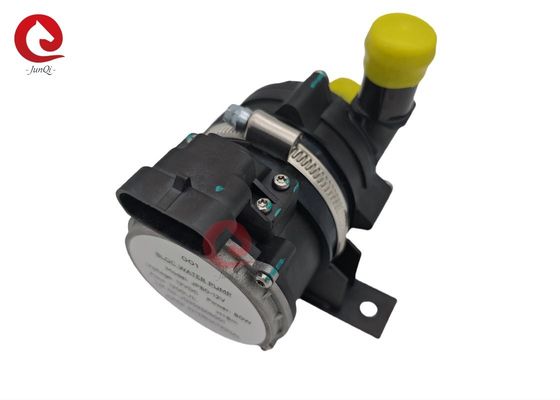

JUNQI JP80 Hybrid Vehicle Water Pump 12V Commerical Vehicle EV Truck Water Pump

Product Details:

Place of Origin:	China
Brand Name:	Junqi
Certification:	TS16949,ISO9001, ISO14001,CE, ISO14001
Model Number:	JP80-12V

Payment & Shipping Terms:

Minimum Order Quantity:	12pcs ( sample available)
Price:	negotiation
Packaging Details:	Suite for export
Delivery Time:	depend on the order quantity /Negotiable
Payment Terms:	T/T, , Western Union, Paypal
Supply Ability:	10000pcs per month

Contact Now

Detailed Product Description

Model No.:	JP80-12V	Rated Voltage:	12VDC
Input Power:	80W	Voltage Range:	DC9~16V
Medium Temperatue:	≤90℃	Waterproofing Grade:	IP67
Ambient Temperarture:	-40℃~+100℃	Warranty:	1 Year
Highlight:	24V Steel Window Lifter Motor , MAN TGA Window Lifter Motor , OEM Electric Window Lifter

JUNQI JP80 Hybrid Vehicle Water Pump 12V Commerical Vehicle EV Truck Water Pump

Description:

1. Rated voltage :DC 12V
2. Rated current :6.7A
3. Operating voltage:DC 9~16V
4. Rated power:80W
5. Working environment:-40°C~105°C
6. Working medium:50% glycol aqueous solution
7. Protection level:IP67
8. Working noise:≤45dB(Distance 1m)
9. Working life:≥20000h
10. Weight:0.8kg
11. Protection function:Blocked rotation, reverse connection, under voltage, over voltage, over current, over temperature, idling.

P-Q Performance Curve:

Pin port Description:

JUNQI JP80 Hybrid Vehicle Water Pump 12V Commerical Vehicle EV Truck Water Pump 1

PWM Control Chart:

JUNQI JP80 Hybrid Vehicle Water Pump 12V Commerical Vehicle EV Truck Water Pump 2

Workshop:

JUNQI JP80 Hybrid Vehicle Water Pump 12V Commerical Vehicle EV Truck Water Pump 3

Dimensions(mm):

Tag:
