To Create Value For Customers. Integrity and Win-Win.
 |
| Place of Origin: | China |
| Brand Name: | junqi |
| Certification: | IS9001, TS16949,CE |
| Model Number: | DKB80 Series |
| Minimum Order Quantity: | 5 sets |
|---|---|
| Price: | Negotialbe |
| Packaging Details: | suitable for export |
| Delivery Time: | base on order, |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000set/month |
| Model: | DKB80-24A/DKB80-12A | Material: | Aluminium Alloy |
|---|---|---|---|
| Voltage: | 24VDC/12V | Power: | 80W |
| Rated Flow Rate: | 1800L/H | Max Head: | 10M |
| Application: | Hybrid Bus, Electric Vehicles | Theory: | Centrifugal Pump |
| Usage: | Coolant | ||
| High Light: | Auto Cooling Cycle Brushless Motor Pump,Max Head 10M Brushless Motor Pump,Brushless DC Motor Water Pump 12V |
||

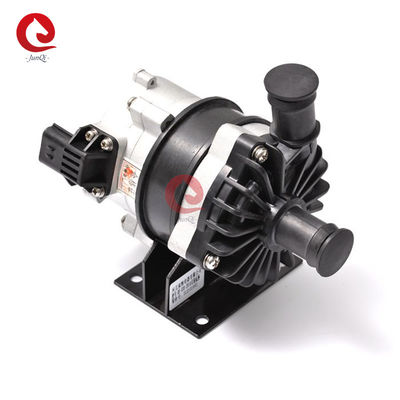

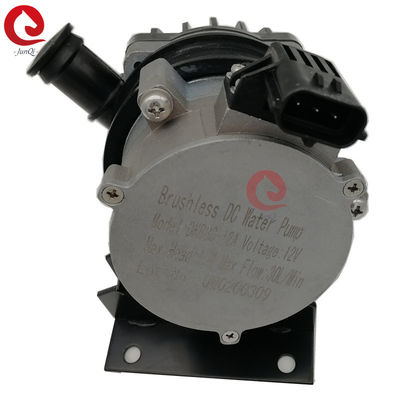

Junqi The New Energy Automotive cooling cycle pumps, 12V/24V 30LPM Max head 10M Brushless DC Water Pump
♣ Features:
1. Constant power, the voltage is 18v - 28 v/ 9-16V change, pump power constant;
2. Overtemperature protection: when the environment temperature over 100 ℃ (limit temperature), water pump stop, in order to guarantee the life of the pump, suggest installation position in low temperature or air flow better;
3. Overload protection: when the pipeline has impurities, cause the pump current increases suddenly, the pump stop running;
4. Soft start;
5. PWM signal control functions
♣ Products Details:
| Item | Small Water Pump for Cooling System | ||
| Model | DKB80-24A/DKB80-12A | ||
| Voltage Rage |
DC18V~DC28V DC9V-DC16V |
Rated Voltage | 24V/12V |
| Ambient Temp | -40~+100℃ | Medium Temp | ≤90℃ |
| dB | 50 | Service Life | ≥6000hours |
| Waterproofing Grade | IP67 | OEM | Accepted |
| Motor Type | Brushless Motor | Warranty | 2 Year |
| Flux | Q=1500L/H(5m) | Load Power | 85W(5m) |
| Application | For cooling system in car or bus or truck | ||
♣ Curve chart
♣Overall dimensions:
♣ Pump structure:
♣ Packing and shipping:
