High Flow Rate Brushless Dc Motor Water Pump 120L/M 12V With PWM Control

Name: High Flow Rate Brushless Dc Motor Water Pump 120L/M 12V With PWM Control
Brand: junqi
SKU: JP200-1
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (160 reviews)

Product Details:

Place of Origin:	China
Brand Name:	junqi
Certification:	IS9001, TS16949,CE
Model Number:	JP200-1

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotialbe
Packaging Details:	suitable for export
Delivery Time:	base on order,
Payment Terms:	T/T, Western Union, Paypal
Supply Ability:	1000set/month

Contact Now

Detailed Product Description

Model:	JP200-1	Material:	PPS+GF, Stainless
Voltage:	12V/24VDC	Power:	Less 300W
Rated Flow Rate:	50L/min~120L/min	Head:	2m~12m(21kPa~115kPa)
Application:	Hybrid Bus, Electric Vehicles, E Bus, BCI
High Light:	120L/M Brushless Dc Motor Water Pump , 12V Brushless Dc Motor Water Pump , PWM Control Brushless Water Pump

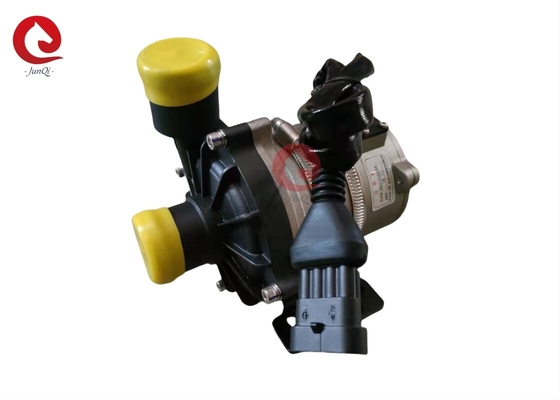

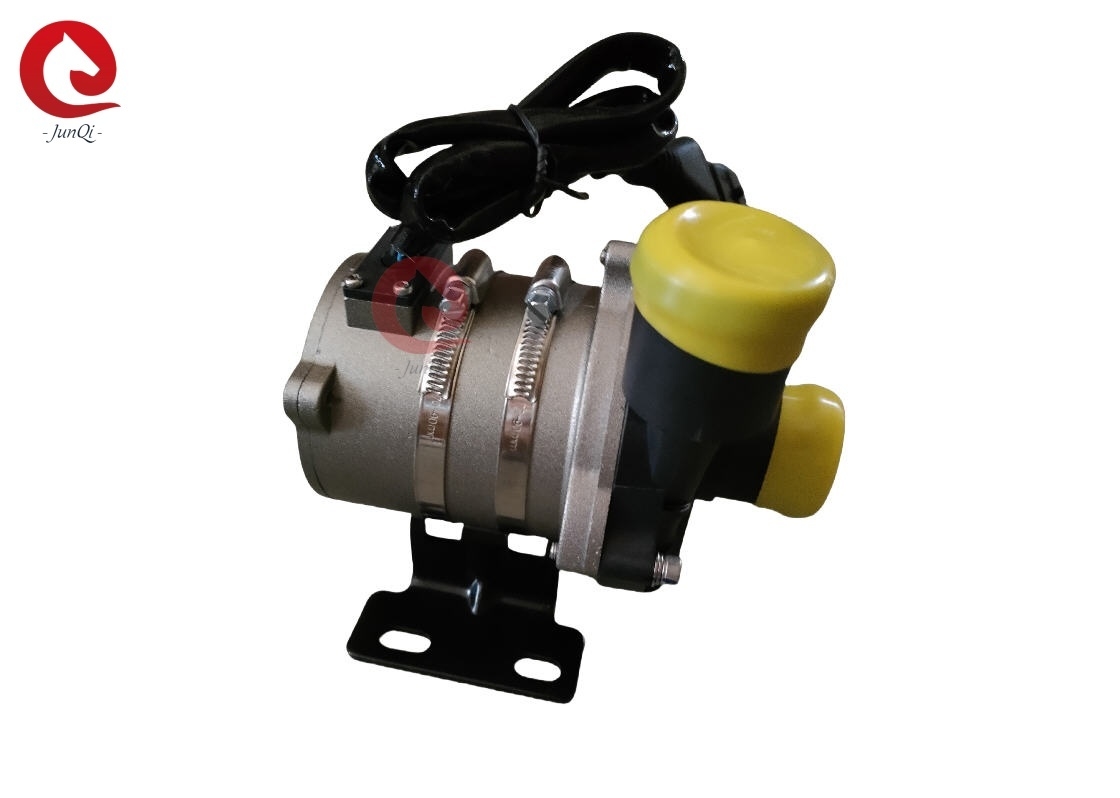

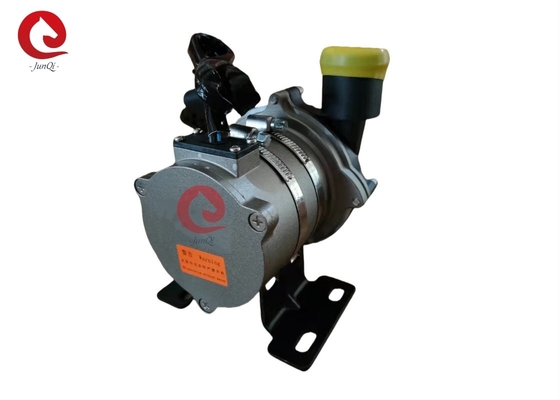

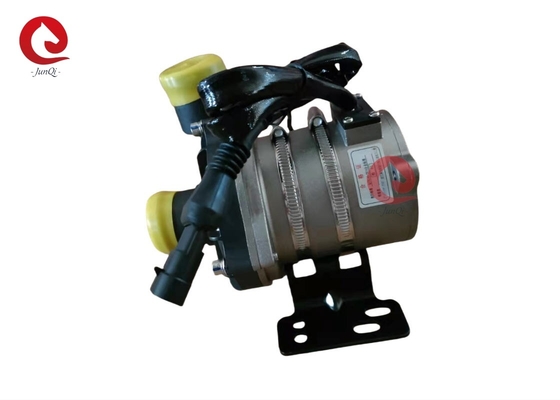

JP200-1 Brushless DC Water Pump

High Flow Rate 50~120L/M, Low Head 2~12M, With PWM Control, 12V Brushless Dc Water Pump Applicatoin For City Bus

Application:

Widely used in hybrid bus, hybrid passenger car, electric vehicles, trains, ships and other heating and

cooling circulation system.

Features:

★Centrifugal pump

★Magnetic force transmission

★High efficiency brushless DC motor, low power consumption, high efficiency, long service

life.

★With wide range operating temperature

★PWM signal speed controlling(optional)

★Diagnostic signal output(optional)

★communication mode(optional)

★With constant flow controlling

★Reverse polarity protection

★Dry running protection

★Over Voltage, over current protection

★Overload, over temperature protection

★Large Flow 50~120LPM

★Low head 2~12m

High Flow Rate Brushless Dc Motor Water Pump 120L/M 12V With PWM Control 0

Technical Parameters Table:

No.		Technical Parameters
1	Medium Liquid	50% Glycol aqueous solution(Preferred choose Organic Type,grain size≯0.35,ppm≯0.1g/L)
2	Extreme Medium Temperature	-40℃~120℃
3	Normal Medium Temperature	10℃~90℃
4	Storage Temperature	-50℃~90℃
5	Extreme	-40℃~105℃
6	Flow Rate Range	50L/min~120L/min
7	Head Range	2m~12m(21kPa~115kPa)
8	Rated Voltage	DC12V /DC24V
9	Voltage Range	DC9~16V /DC18~32V
10	Power	≤300W
11	Communication and Control Type	CAN/PWM or ON/Off
12	Protection Level	IP68
13	Weight	≤1.5kg(without Bracket)
14	Noise	≤60dB(A)(see 5.2 figure)
15	Service Life	＞20000h
16	OD of inlet/outlet	φ38
17	Lead wire Type	Integrated with pump body or lead wires with connectors
18	Protection Function	Over Current Protection, Over/Low Voltage Protection, Over Temperature Protection, Locked-Rotor Protection,Dry-Running Protection, Reverse Polarity Protection.

2. Mechanical installation

2.1 The pump can be installed vertically or horizontally mounted (see figure 1 ) When installed

vertically, the outlet port should be upward .

2.2 In order to avoid the dry- running (air get stuck in impeller),the water pump outlet port should

be vertical or in the upper of the impeller. (see figure 1 )

2.3 The connected pipe should be vertically mounted (or no elbow in 20cm )to make the air

discharged easily, the outlet pipe should not be used less than 90 degrees elbow (see figure 2).

2.4 Can't use the seawater or other heavy pollution with big grain impurity liquid as the liquid

medium .

Electrical Interfaces:

3.1 Recommend PWM/CAN Communication Connectors and Pin Port Description:

Manufacture:TE Connectivity(Recommend)

Connector Model:AMP282106-1

Matched Plug Model:AMP282088-1

3.2 Non-Recommend Connectors:

For the application of water pump with lead wires, JUNQI International can replace the connector

types as the customer request. Or 2pin connector for fixed speed (on/off), 3pin connector with feedback

function (or 3pin PWM communication application), please contact with us for your request details.

Performance Indicators:

4.1 Performance Curve:

High Flow Rate Brushless Dc Motor Water Pump 120L/M 12V With PWM Control 3

4.2. Noise

Noise Test Conditions:

1. Testing Room Temperature: 23℃,

2. Water Speed: Max Speed

3. Flow Rate: Max Flow

Test Result: ≤60dB(A),choose max test value

The Noise testing measuring position as below figure.

4.3 CAN Communication:

Please communicate and obtain the recommendation agreement when selecting the design!4.4 PWM

Communication(Recommend)

4.4.1 Water Pump Connector Pin port definition(figure3, figure4)

Attentions:

1. Please add a fuse in the water pump power supply circuit to cut off the power supply when appearance the failure.

2. Avoid the water pump is covered or blocked and affected by the surrounding devices heating. The installation space is convenient for maintenance and replacement operation.

3. Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature

4. The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.

5. Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump

6.Please use the pump far from the dusty environment, the dust is harmful to reduce the service life

Mechanical Dimensions:
