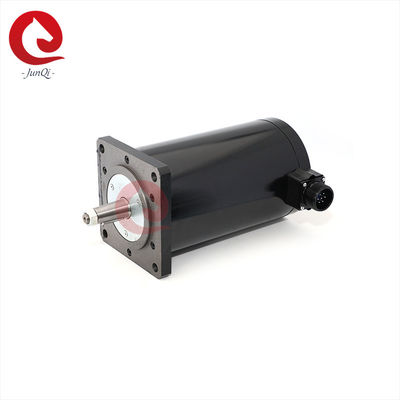

50N.M Holding Torque Hybrid Stepper Motor 2Phase 220V 1.8 Degree

50N.M Holding Torque Hybrid Stepper Motor 2Phase 220V 1.8 Degree

  • 50N.M Holding Torque Hybrid Stepper Motor 2Phase 220V 1.8 Degree
  • 50N.M Holding Torque Hybrid Stepper Motor 2Phase 220V 1.8 Degree
  • 50N.M Holding Torque Hybrid Stepper Motor 2Phase 220V 1.8 Degree
  • 50N.M Holding Torque Hybrid Stepper Motor 2Phase 220V 1.8 Degree
50N.M Holding Torque Hybrid Stepper Motor 2Phase 220V 1.8 Degree
Product Details:
Place of Origin: Changzhou,China
Brand Name: Junqi
Certification: CE, RoHs, REACH
Model Number: JQ130ST282-7004A
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: Negotiable
Packaging Details: CTN
Delivery Time: 4weeks after get payment (base on order),
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000set/month
Contact Now
Detailed Product Description
Type: STEPPER MOTOR Model Number: JQ130ST282-7004A
Frame Size: 130mm Rated Torque: 50N.m
Number Of Phase: 2 Phase Body Length: 282mm
Usage: Industry Automation Shape: Square
Step Angle: 1.8 Degree Rated Current: 7A
Weight: 22kg
High Light:

50N.M Holding Torque Stepper Motor

,

2 Phase Hybrid Stepper Motor

,

1.8 Degree Hybrid Stepper Driver

NEMA52 130mm 50N.m Holding Torque 2Phase stepper motor, 220V 1.8degree /JQ130ST282-7004A For Automation Equipment



Stepper motor technology can be a good choice whenever controlled movement is required. They can be used to an advantage in applications where you need to control rotation angle, speed, position and synchronism. Delta Line portfolio offers wide options of micro stepper motors technology such as Hybrid, Flat, Hollow shaft or IP65 stepper motors, in sizes from 15 to 130mm.



Quick Details:

Item Specifications
Step Angle Accuracy ±5%
Resistance Accuracy ±10%
Inductance Accuracy ±20%
Insulation Resistance 500VDC 100MΩ Min
Temperature Rise 80℃ Max(rated current)
Ambient Temperature -20℃~+50℃
Dielectric Strength 1000VAC for one minute
Shaft Radial Play 0.025Max.(450g-load)
Shaft Axial Play 0.3Max.(450g-load)
Max Axial Force 60 N
Max Radial Force 220N(20mm from the flange)
Insulation Class B





Electricl Specification:





Model No Step
Angle
(°)
Rated
Voltage
(V)
Rated
Current
(A)
Phase
Resistance
(Ω)
Phase
Inductance
(mH)
Holding
Torque
(N.m)
Rotor
Inertia
(Kg.cm²)
Motor
Length
(mm)
Leads No. Motor
Weight
(Kg)
JQ130ST199-6004A 1.8 220 6.0 0.75 12 27 30 199 Five Pins Socket 16
JQ130ST226-6004A 1.8 220 6.0 0.86 12.5 36 35 226 Five Pins Socket 18
JQ130ST282-7004A 1.8 220 7.0 0.66 9 50 45.5 282 Five Pins Socket 22
Above only for representative products, products of special request can be made according to the customer request.



**Notes: Above is standard motor, we can be designed &manufactured with customized request!!




Mechanical Size and Electric Connection:



50N.M Holding Torque Hybrid Stepper Motor 2Phase 220V 1.8 Degree 050N.M Holding Torque Hybrid Stepper Motor 2Phase 220V 1.8 Degree 1


Motor details:



50N.M Holding Torque Hybrid Stepper Motor 2Phase 220V 1.8 Degree 2



Motor Application Fields:





Medical:                  Syringe pump, X ray oncology equipment/ Collimators; CT; Medical bed, Face mask machine; Disability Equipment liquid                                        Analyser; Physiotherapy Equipment; Injection Pump; Blood Analyser ; Biochemical Analyzer; Disability equipment lift



Textile:                      Embroidery Machines; Flat Knitting Machines;Screen Printing Machines;Spinning Machines;Yarn Preparation Machines.



Industrial Control:       CNC; Pick and Place Machines, Carving Machine; Printer; Industrial Analyser; SMT; Engraving and Marking Equipment.


Logistics:                        Logistic&Storage Equipment ;ConveyorSystem; Conveyor System;Barrier Opening System;Door Opening System.


Household Electrical:         Mover;Swimming Pool Cleaner;Coffee Machine; TV System


Office Automation:                Printer, 3D Printer
