Water Heater Circulating DC Water Pump PWM Speed Control 24V 55W

Water Heater Circulating DC Water Pump PWM Speed Control 24V 55W

  • Water Heater Circulating DC Water Pump PWM Speed Control 24V 55W
  • Water Heater Circulating DC Water Pump PWM Speed Control 24V 55W
  • Water Heater Circulating DC Water Pump PWM Speed Control 24V 55W
  • Water Heater Circulating DC Water Pump PWM Speed Control 24V 55W
  • Water Heater Circulating DC Water Pump PWM Speed Control 24V 55W
Water Heater Circulating DC Water Pump PWM Speed Control 24V 55W
Product Details:
Place of Origin: China
Brand Name: JUNQI
Certification: IS9001, TS16949,CE
Model Number: JQ-P6202
Payment & Shipping Terms:
Minimum Order Quantity: 5 sets
Price: Negotiable
Packaging Details: carton+packing foams
Supply Ability: 300sets per day
Contact Now
Detailed Product Description
Product Name: Brushless DC Motor Water Pump Max Flow: 22L/M
Max Head: 11M Material: PK+GF
Structure: Single-stage Pump Power: Electric
Motor: Brushless Motor Technical Support: Yes
High Light:

55W DC Water Pump

,

PWM Speed Control DC Water Pump

,

Heater Speed Regulating Booster Circulating Pump

JUNQI 24V 55W DC Water Pump,Water Heater Speed Regulating Booster Circulating Pump, PWM speed Control,Fauilt feedback Signal



 Applications:


1: Solar heating water circulation
2: Water Purification Equipments
3: Drinking water machines
4: Automatic water dispenser
5: Water cooling equipment
6: Engine cooling
7: Heating equipment cooling
8: Cooling Towers
9: Irrigation Landscape
10: Pipeline boosting



Features:
◆ Centrifugal pump
◆ Magnetic force transmission (shield pump structure)
◆ High efficiency brushless DC motor, low power consumption, high efficiency, long service life.
◆ With wide range operating temperature
◆ PWM signal speed controlling
◆ With constant flow controlling
◆ Reverse polarity protection (optional)
◆ Dry running protection (optional)
◆ Over Voltage, over current protection
◆ Overload, over temperature protection



Technical parameters:

Model JQ-P6202
Rated Voltage 24VDC
Rated Power 55W
Max flow Rate 22L/min
Max Head 11m
Waterproof Grade IP68


Water Pump Function:


1. PWM speed control

2. Soft Start

3. Stall protection

4. Over temperature protection

5. Dry-run protection



Wire Connection Description:

Water Heater Circulating DC Water Pump PWM Speed Control 24V 55W 0



Red wire: DC24 +

Black wire: GND

Blue wire: PWM signal input ( Frequency more than 4KHz)

Black wire: Motor speed feedback.





Water Pump size diagram:
Water Heater Circulating DC Water Pump PWM Speed Control 24V 55W 1

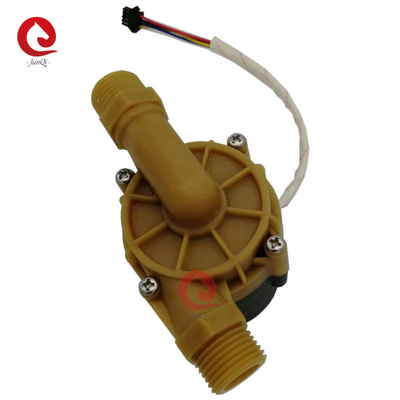

Water Pump pictures:
Water Heater Circulating DC Water Pump PWM Speed Control 24V 55W 2
