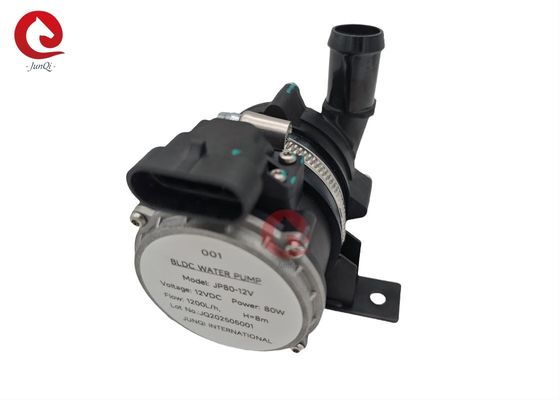

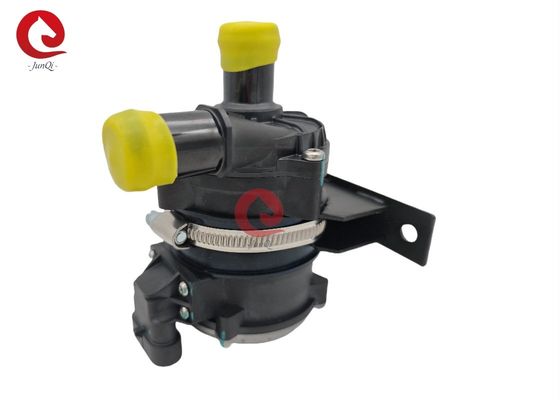

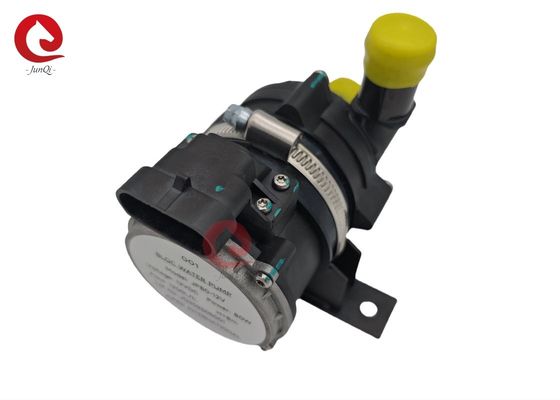

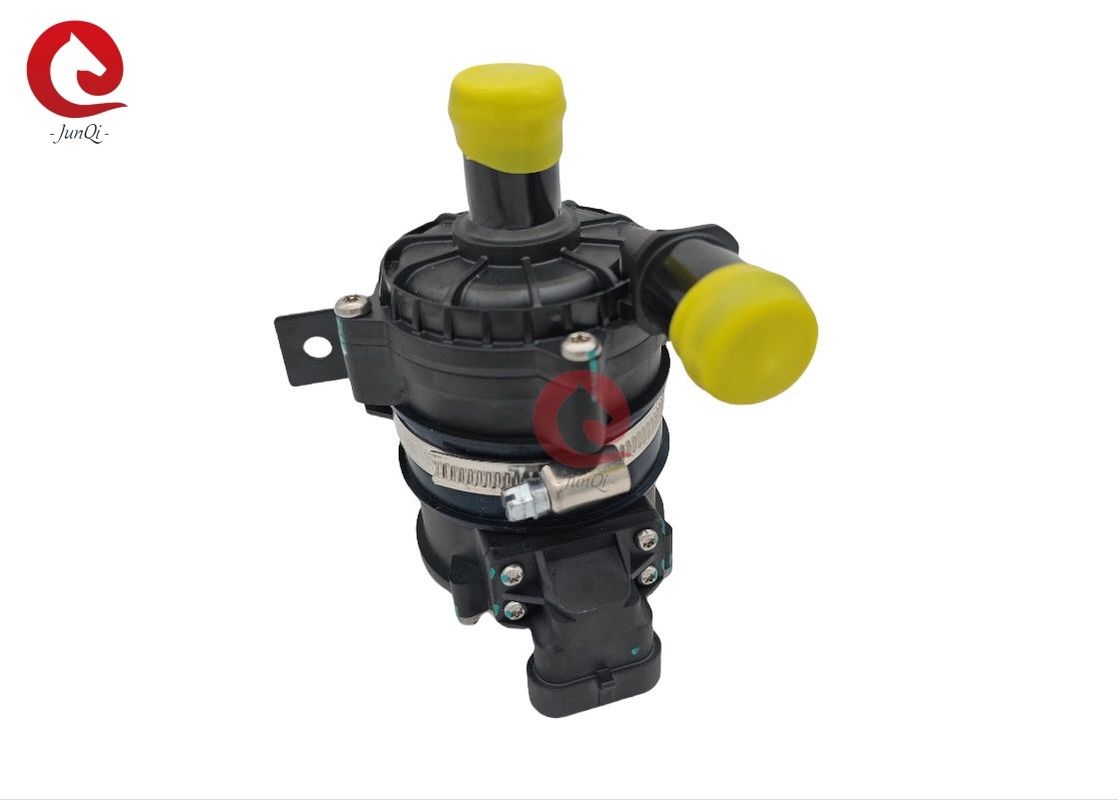

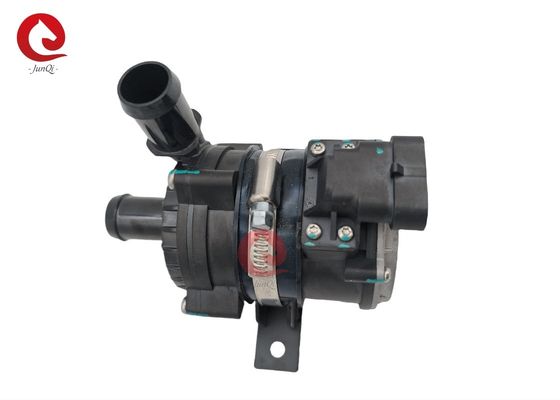

Junqi 12V DC Circulation Water Pump JQ-BLP5009-12V For Car'S Warm Wind Air Conditioning Cycle
Water Pump Quick Techincal Parameters:
| Model |
JP80-12V |
| Rated Voltage (V) |
12V |
| Voltage Range (V) |
DC9~16V |
| Rated Current(A) |
6.7A |
| Rated Head (m) |
8m |
| Rated Flow (L/min) |
20L/min |
| Rated Power (W) |
80W |
| Max Noise (dB) |
≤45dB |
| Protection Level |
IP67 |
| Insulation Level |
H |
| Ambient temperature(℃) |
-40 to 125℃ |
| Medium |
Antifreeze |
| Weight (kg) |
0.65kg |
Water Pump Features:
1.Centrifugal Pump
2.Magnetic force transmission(shield pump structure)
3.Low Noise ( less than 45dB)
4.High Efficiency DC Brushless Motor, Low power consumption,
high efficiency,Long Service life ( 20000 hours)
5.Single-stage structure
6.With wide range operating temperature
7.Dry-running protection (optional)
8.Locked-rotor protection(optional)
Water Pump Performance Curve:
PWM control chart:
Overall Dimensions:
Water Pumps applications:
1.Heating vertilation air conditioning
2. Auto turbocharger water cooling cycle
3. New energy vehicle cooling cycle
4. Motorcycle electronic water pump
Production line:
FAQ:
Q: How long is your delivery time?
A: Sample order is 7~10 days.
Bulk order is 30~35 days.
If there is pumps in stock, it is 2 days.
Q: How long is your warranty of pump?
A :Warranty is 2 years, can be repaired or returned free of charge if non- man-made damage.
Q: What’s the payment method?
A: Paypal,T/T,
Q: What certificates have your pumps passed?
A: All our products have passed CE, RoHS, Reach.
Parts of pumps met UL.
Q: What certificates have your company passed?
A: Our company has passed IATF16949, ISO9001, ISO14001&OHSAS18001
