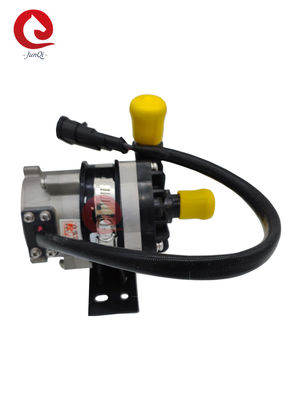

12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication

12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication

  • 12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication
  • 12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication
  • 12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication
  • 12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication
12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication
Product Details:
Place of Origin: China
Brand Name: junqi
Certification: IS9001, TS16949,CE
Model Number: OWP-SH120CAN-12V
Payment & Shipping Terms:
Minimum Order Quantity: 1 pc
Price: Negotialbe
Packaging Details: suitable for export
Delivery Time: base on order,
Payment Terms: T/T, Western Union, Paypal
Supply Ability: 1000set/month
Contact Now
Detailed Product Description
Model: OWP-SH120CAN-12V Material: PPS+GF, Stainless
Voltage: 12V Power: 120W
Rated Flow Rate: 52L/Min Head: 13m
Application: Automotive Engine Cooling Circulation,4.Heating System(Car Auxiliary Heaters&parking Heaters)
High Light:

3000L/H Automobile Water Pump

,

12V 120W Automobile Water Pump

JUNQI 12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication, EV Cars Battery Cooling Cycle,

Technical Parameters Table:

Description BLDC Water Pump
Model OWP-SH120CAN-12V
Rated Voltage 12V
Voltage Range 9-16V
Rated Power 120W
Max Head 13m
Max Flow 52L/min
Medium Antifreeze
Medium temperature ≤90℃
Working Ambient temperature -40~100℃



Application:

1. Automotive climate control system

2. Automotive engine cooling circulation

3. Car engine preheating

4. Heating system(Car Auxiliary heaters&parking heaters)

5. Electric vehicles water circulation system

6. Normal Hot Water Circulation

Electric Motorcycle Cooling System

12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication 0



Features:

1. High efficiency ECM brushless DC motor with long life time.

2. Heavy duty work, can sustain 24 hours continuous running.

3. Durable permanent magnetic rotor and high density ceramic shaft.

4. Avanced magnetic driving technology, static-seal without leakage forever.

5. Operating temperature is realized, suitable for extreme outdoor environment.

6. Optimized 3 phase motor high efficiency design, combined with low-resistance cooper wire, achieving large flow and low temperature rise.

7. Applied liquid: pure water, antifreeze solution.

8. Low or no maintenance

9. Low power consumption.

10. PWM signal speed controlling(optional)

11. Reverse polarity protection

12. Dry running protection

13. Over Voltage, over current protection

14. Overload, over temperature protection









Electric water pump H-Q Cuve:



12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication 1



CAN Signal Control Curve:



12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication 2

Duty Cycle Description
0%≤Duty<10% Stop State
10%≤Duty<90% Linear speed control range
90%≤Duty<100% Max Speed Running



Electrical Interfaces Description:

12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication 3

No. Pin Description Wires Color
1 GND Black
2 CANH Orange
3 CANL Green
4 12V Red





Attentions:
1. Please add a fuse in the water pump power supply circuit to cut off the power supply when appearance the failure.
2. Avoid the water pump is covered or blocked and affected by the surrounding devices heating. The installation space is convenient for maintenance and replacement operation.
3. Working ambient temperature:-40℃--120℃, should try to avoid close to three-element catalytic, gas discharge pipe system and engine during the installation, ensure the working environment temperature
4. The installation position of the water pump should as much as possible close to the low water level , to extend the service life of the pump.
5. Pay attention to the purity of the water, avoid to jam and impeller-blocked to reduce the service life of pump
6.Please use the pump far from the dusty environment, the dust is harmful to reduce the service life

Mechanical Dimensions:

12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication 4
12V 120W Max Flow Rate 3000L/H Automobile Water Pump With CAN Communication 5
