| Place of Origin: | China |
| Brand Name: | junqi |
| Certification: | IS9001, TS16949,CE |
| Model Number: | OWP-SH120CAN |
| Minimum Order Quantity: | 1 pc |
|---|---|
| Price: | Negotialbe |
| Packaging Details: | suitable for export |
| Delivery Time: | base on order, |
| Payment Terms: | T/T, Western Union, Paypal |
| Supply Ability: | 1000set/month |
| Model: | OWP-SH120CAN | Material: | PPS+GF, Stainless |
|---|---|---|---|
| Voltage: | 12V/24V | Power: | 120W |
| Rated Flow Rate: | 52L/Min | Head: | 13m |
| Application: | Automotive Engine Cooling Circulation,4.Heating System(Car Auxiliary Heaters&parking Heaters) | ||
| Highlight: | PWM Control BLDC Water Pump,Vehicle Cooling System BLDC Water Pump,EV Brushless DC Water Pump 12V |
||
Technical Parameters Table:

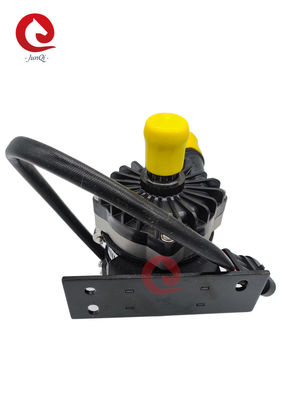

| Description | BLDC Water Pump |
| Model | OWP-SH120CAN |
| Rated Voltage | 12V/24V |
| Voltage Range | 9-16V/ 18~32V |
| Rated Power | 120W |
| Max Head | 13m |
| Max Flow | 52L/min |
| Medium | Antifreeze |
| Medium temperature | ≤90℃ |
| Working Ambient temperature | -40~100℃ |
1. High efficiency ECM brushless DC motor with long life time.
2. Heavy duty work, can sustain 24 hours continuous running.
3. Durable permanent magnetic rotor and high density ceramic shaft.
4. Avanced magnetic driving technology, static-seal without leakage forever.
5. Operating temperature is realized, suitable for extreme outdoor environment.
6. Optimized 3 phase motor high efficiency design, combined with low-resistance cooper wire, achieving large flow and low temperature rise.
7. Applied liquid: pure water, antifreeze solution.
8. Low or no maintenance
9. Low power consumption.
10. PWM signal speed controlling(optional)
11. Reverse polarity protection
12. Dry running protection
13. Over Voltage, over current protection
14. Overload, over temperature protection
CAN Signal Control Curve:
| Duty Cycle | Description |
| 0%≤Duty＜10% | Stop State |
| 10%≤Duty＜90% | Linear speed control range |
| 90%≤Duty＜100% | Max Speed Running |
Electrical Interfaces Description:
| No. | Pin Description | Wires Color |
| 1 | GND | Black |
| 2 | CANH | Orange |
| 3 | CANL | Green |
| 4 | 12V | Red |
Application:
1. Automotive climate control system
2. Automotive engine cooling circulation
3. Car engine preheating
4. Heating system(Car Auxiliary heaters&parking heaters)
5. Electric vehicles water circulation system
6. Normal Hot Water Circulation
Electric Motorcycle Cooling System
