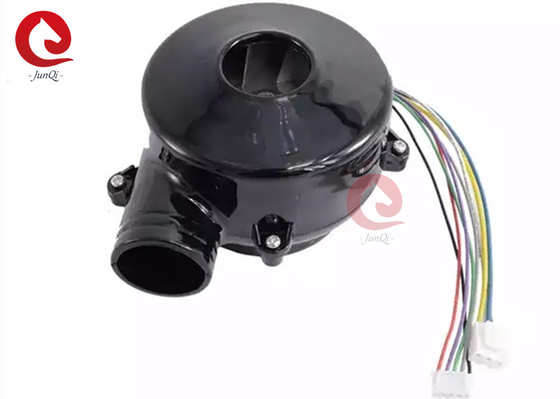

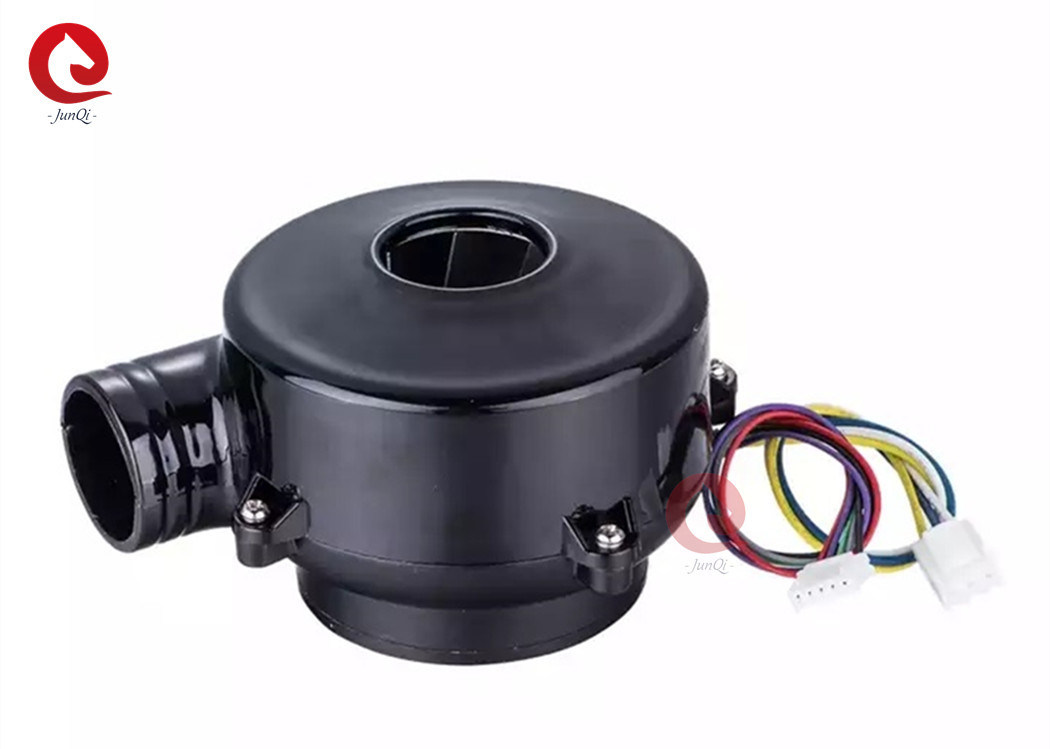

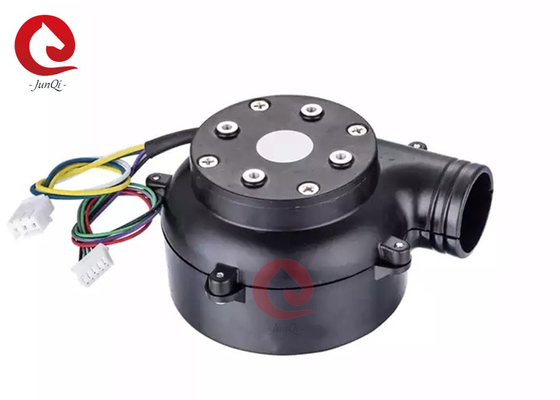

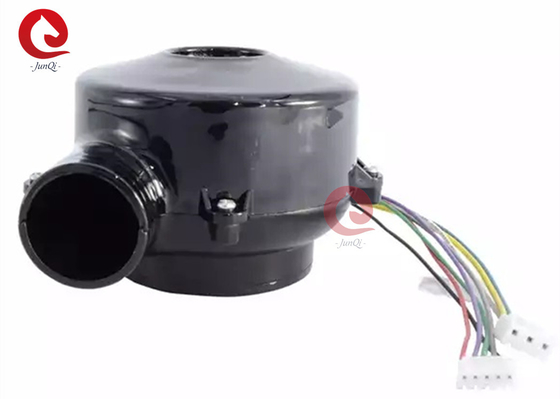

24V 190W Mini Brushless DC Centrifugal Blower Adjustable Air Purifier OWB-9620-24V

Name: 24V 190W Mini Brushless DC Centrifugal Blower Adjustable Air Purifier OWB-9620-24V
Brand: junqi
SKU: OWB9260-24V
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (119 reviews)

Product Details:

Place of Origin:	China
Brand Name:	junqi
Certification:	CE,Rohs
Model Number:	OWB9260-24V

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiable
Packaging Details:	Carton+packing foams
Delivery Time:	5-30days
Payment Terms:	T/T, L/C
Supply Ability:	1000 pcs per day

Contact Now

Detailed Product Description

Product Name:	BLDC Air Blower	Rated Voltage:	24V
Motor Speed(open):	25000RPM	Driving Motor:	3 Phase Brushless DC Motor
Bearing:	NMB Ball Bearing	Service Life:	15000 Hours
Color:	Black	Usage:	Air Cushion Machine, Cooling Equipment, Medical Device
High Light:	Mini Brushless DC Centrifugal Blower , 24V 190W Brushless DC Centrifugal Blower , Air Purifier OWB-9620-24V

Junqi 24V 190W Mini Brushless DC Centrifugal Blower adjustable air purifier OWB-9620-24V

Brushless DC Micro Air Blower Features :

1: High speed, specialized high-speed ball bearing offering long service life and lower noise

2: High pressure and airflow output by compact size design

3: High efficiency, much more efficient than brush motor blower

4: High reliability, specialized controller make the working more reliable

5: High intelligent, PWM speed regulation, positive inversion, PG signal feedback, intelligent controlling

2: Blower Technical Parameters

Model	OWB9260-24V	OWB9260B-12V
Rated Voltage	24VDC	12VDC
Outlet Open
Current	8A	15A
Rated Speed	25000rpm	23000rpm
Air Flow	130m³/h	120m³/h
Outlet Sealed
Current	4.3A	8A
Speed	29000rpm	28000rpm
Air Pressure	7.5Kpa	7Kpa
Resistance/Phase	0.14~0.19Ohm	0.035~0.05Ohm
Induction/Phase	0.09~0.13mH	0.024~0.03mH
Motor Pole pairs	2	2
Noise	80dB(A)	80dB(A)
Blower Fan Motor Parameters
Motor Type	Three Phase Brushless DC Motor	Three Phase Brushless DC Motor
Bearing Type	NMB Ball Bearing	NMB Ball Bearing
Insulation Class	Class F	Class F
Protect Class	IP54	IP54
Operating Temperature range	-20℃~+60℃(No Condensation)	-20℃~+60℃(No Condensation)
Hall Effect Sensor	120°	120°
Speed@hall sensor frequency	1Hz=30r/min	1Hz=30r/min
Service Life MTTF(25℃ Rated Operation Point)	15000hours	15000hours
Weight	420g	420g
Matched Driver	BLDC2408	BLDC1230

3: Micro DC Air Blower performance

24V 190W Mini Brushless DC Centrifugal Blower Adjustable Air Purifier OWB-9620-24V 0

4: Overall dimensions

24V 190W Mini Brushless DC Centrifugal Blower Adjustable Air Purifier OWB-9620-24V 1
5: Wiring diagram

HX25002-5Y
Pin 1	26AWG	Red	+5V
Pin 2	26AWG	Purle	Hall A
Pin 3	26AWG	Green	Hall B
Pin 4	26AWG	Grey	Hall C
Pin 5	26AWG	Black	GND
HX39600-3Y
Pin 1	20AWG	Yellow	Phase A
Pin 2	20AWG	Blue	Phase B
Pin 3	20AWG	White	Phase C

6: Attentions
1: Do not working under the max air pressure, the air flow is too small at max air pressure, and it's not safe for using.
2: Add a filter attach to the intake makes the blower bearing longer service life.
3: The correct rotation direction is CCW
4: Do not use the blower in High temperature ,high humidity, high magnetic fields
5: Please use suitable power supply for the blower.
