| Place of Origin: | China |
| Brand Name: | DECARBON |
| Certification: | IS9001, TS16949,CE |
| Model Number: | JQ-P6202 |
| Minimum Order Quantity: | 5 sets |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton+packing foams |
| Delivery Time: | Negotiable |
| Supply Ability: | 300sets per day |
| Product Name: | Brushless DC Motor Water Pump | Voltage: | 24VDC |
|---|---|---|---|
| Max Flow: | 22L/M | Max Head: | 11M |
| Power: | 55W | Material: | PK+GF |
| Structure: | Single-stage Pump | Motor: | Brushless Motor |
| Technical Support: | Yes | ||
| High Light: | 22L/Min Mini Brushless Booster Pump,24V 55W Mini Brushless Booster Pump,1.5A 11m Mini Water Pump |
||
24V 55W 22L/Min Mini Water Pump Brushless Booster Pump 1.5A 11m For Chiller Machine And LED Light Pump
Specifications:
Model:JQ-P6202
Voltage:DC24V
Power:55W
Current:1.5A
Transmission medium: Hot water pump
Pump shaft position : Horizontal
Drive mode: Electromagnetic
Impeller Intake: Single Suction
Material:Engineering plastics
Color:Black&Yellow
Size:118mm*80mm
Maximum lift:11meters
Maximum flow:22L/min
Features:
- It is smooth operation, high efficiency, good performance, anti-corrosion,long service life.
- Can be a long time continuous work, low noise, safety and environmental protection.
- Wth idle protection, stall protection, over temperature protection, overvoltage protection.
Wire Connection Descriptions:
Red wire: DC24+
Blace wire: GND
Water Pump Size Diagram:

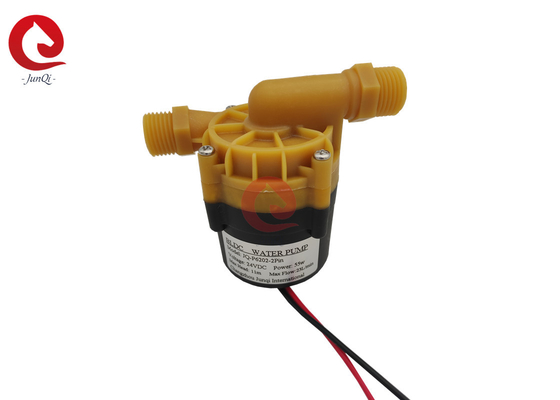

BLDC water pump pictures:
