High Voltage 220VAC Max 16A 2400W 3 Phase Brushless Motor With Hall Sensors

High Voltage 220VAC Max 16A 2400W 3 Phase Brushless Motor With Hall Sensors

  • High Voltage 220VAC Max 16A 2400W 3 Phase Brushless Motor With Hall Sensors
  • High Voltage 220VAC Max 16A 2400W 3 Phase Brushless Motor With Hall Sensors
  • High Voltage 220VAC Max 16A 2400W 3 Phase Brushless Motor With Hall Sensors
  • High Voltage 220VAC Max 16A 2400W 3 Phase Brushless Motor With Hall Sensors
High Voltage 220VAC Max 16A 2400W 3 Phase Brushless Motor With Hall Sensors
Product Details:
Place of Origin: China
Brand Name: JUNQI
Certification: CE,ROHS, UL
Model Number: BLSD22016ADC-2Q-HV
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1000sets/day
Contact Now
Detailed Product Description
Product Name: Brushless Dc Motor Driver Working Voltage: 220VAC(60~385VDC)
Peak Current: 16A Continue Current: 8A
Output Power: 2400W Reference Input: 0~10V/PWM/Frequency
Highlight:

2400W 3 Phase Brushless Motor

,

220VAC 3 Phase Brushless Motor

,

16A 3Phase Brushless DC Motor Driver

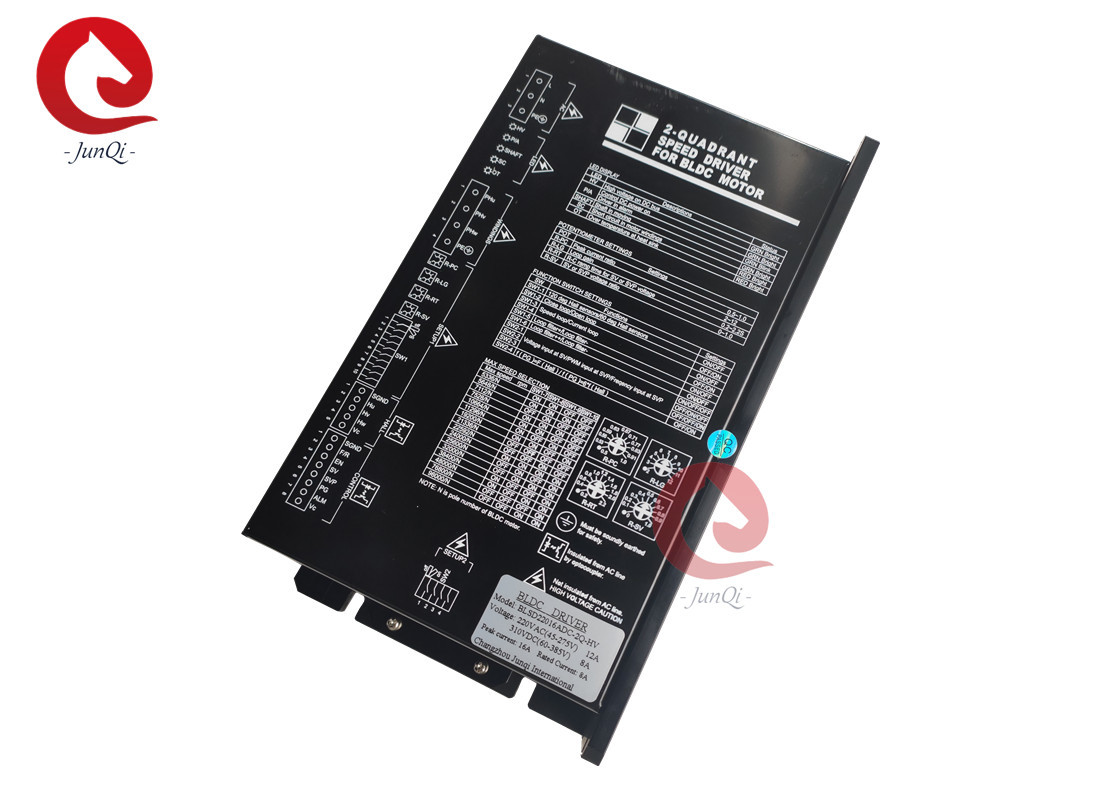

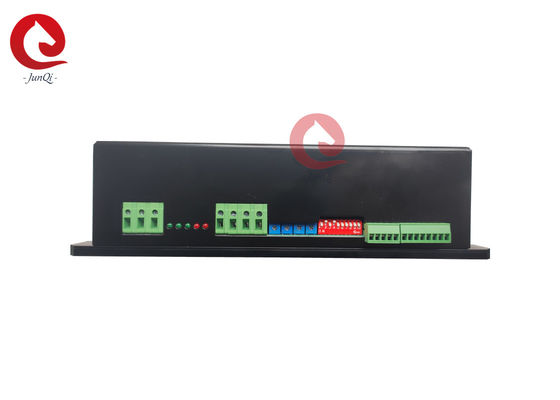

Junqi High Voltage 220VAC Max 16A 2400W 3 Phase Brushless Motor with Hall Sensors Using For Industry Equipment







Features:



1. Surface-mount technology, small size, high current

2. 2-Quadrant PI close-loop control of speed or current with good linearity.

3. Variable parameter settings for different motors.

4. Control functions of safe reverse, safe start, enable, brake, speed reference and output functions of speed pulse(PG), alarm. Short circult and over temperature protection. AC or DC supply can be used in wide range of voltage.

5. Three kinds of reference inputs: analog voltage, PWM, frequency.

6. Suitable for 3-Phase BLDC Motors with hall sensors.

7. Use of industrial grade chips, optical isolation port.



Model and Specification:



S series 2-Quadrant BLDC Motor Speed Driver:

Model

Voltage



I peak

(A)

I cont

(A)

Po

(W)

Reference

Input

Size

(mm)

BLSD22016ADC-2Q-HV

220VAC or

(60~385VDC)

16 8 2400

0~10v/

PWM/

Frequency

W142,L254,H68







Driver Numbering Information:



BLSD 220 16 ADC -2Q-HV-T



BLSD: BLDC Speed Driver

24: Rated Voltage(VAC)

35: Peak Current Limit(A)

ADC: AC or DC Power supply

2Q: 2-Quadrant Driving Mode

HV: HV series( High Voltage)

T=-40~+65℃ Ta, Unlabelled=-10~+45℃ Ta





Notice:



1.Select peak current of driver: Ip(A)2*Ir(A) or Ip(A)≧4*Pom/(1.414*Vp), Irm=rated current of motor(A) Pom=Rated output power                                                      of motor(W), Vp=AC supply voltage of Driver(Vrms)

2. Driving quadrant: The drivers are only used in I&III quadrant.

3. Interference from leads: The Hall signals can be disturbed by switched current in windings leads when length is more than 3m. Don't                                                         intertwine them together. It is better to use shielded leads.

4. Motor Insultaion:  Hall sensors to Windings/Hall sensors to Motor Cse/Windings to Motor Case

                                   Insulation Resistance>100MOhm@1500VDC

                                   Dielectric strength<1mA@1200VAC/50-60Hz/1 minute

5.Safety:       The PE terminal labeled on the driver must be connected to the protection earth point of the supply system.



Typical connections:



High Voltage 220VAC Max 16A 2400W 3 Phase Brushless Motor With Hall Sensors 0

High Voltage 220VAC Max 16A 2400W 3 Phase Brushless Motor With Hall Sensors 1



Mechanical Size:

High Voltage 220VAC Max 16A 2400W 3 Phase Brushless Motor With Hall Sensors 2High Voltage 220VAC Max 16A 2400W 3 Phase Brushless Motor With Hall Sensors 3

                                                        BLSD22016ADC-2Q-HV

CAUTION: PE point must be connected to protective earth of supply system!!!!
