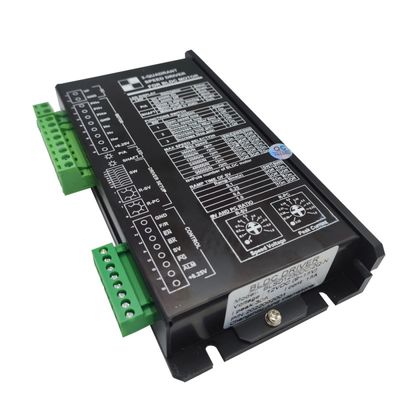

JUNQI 12VDC 10A 20A 30A Brushless DC Motor Speed Driver, 3 Phase Motor Controller

JUNQI 12VDC 10A 20A 30A Brushless DC Motor Speed Driver, 3 Phase Motor Controller

  • JUNQI 12VDC 10A 20A 30A Brushless DC Motor Speed Driver, 3 Phase Motor Controller
  • JUNQI 12VDC 10A 20A 30A Brushless DC Motor Speed Driver, 3 Phase Motor Controller
  • JUNQI 12VDC 10A 20A 30A Brushless DC Motor Speed Driver, 3 Phase Motor Controller
  • JUNQI 12VDC 10A 20A 30A Brushless DC Motor Speed Driver, 3 Phase Motor Controller
JUNQI 12VDC 10A 20A 30A Brushless DC Motor Speed Driver, 3 Phase Motor Controller
Product Details:
Place of Origin: China
Brand Name: JUNQI
Certification: CE,ROHS, UL
Model Number: BLSD1210DC-2Q-N, BLSD1220DC-2Q-N, BLSD1230DC-2Q-N
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: PE bag+ carton
Delivery Time: 5-10 days
Payment Terms: T/T,L/C,Paypal
Supply Ability: 1000sets/day
Contact Now
Detailed Product Description
Product Name: Brushless Dc Motor Driver Working Voltage: 12VDC
Peak Current: 10A,20A,30A Continue Current: 5A,10A, 15A
Output Power: 60W, 120W,180W Reference Input: 0~10V/PWM/Frequency
High Light:

12VDC DC Motor Speed Driver

,

30A 3 Phase Motor Controller

,

12VDC 3 Phase Motor Controller

JUNQI 12VDC 10A 20A 30A Brushless DC Motor Speed Driver, 3 Phase Motor Controller​





Features:



1. Surface-mount Technology and small size.

2. 2-Quadrant PI Closed-loop control of speed with good linearity.

3. Variable Parameter settings for different motors

4. Control functions of F/R, enable, speed reference and output functions of speed pulse(PG), alarm. Over temperature protection.

5. Three kinds of reference inputs: analog voltage, PWM, Frequency.

6. Suitable for 3-phase BLDC motors with hall sensors.

7. Use of industrial grade chips.



Model and Specification:



N series 2-Quadrant BLDC Motor Speed Driver:

Model

Voltage



I peak

(A)

I cont

(A)

Po

(W)

Reference

Input

Size

(mm)

BLSD1210DC-2Q-N

12VDC
(9~15V)



10 5 60

0~10v/

PWM/

Frequency



W82.5,L162,H29
BLSD1220DC-2Q-N 20 10 120
BLSD1230DC-2Q-N 30 15 180







Driver Numbering Information:



BLSD 12 10 DC -2Q-N-T



BLSD:       BLDC Speed Driver

      12:       Rated Voltage(VDC)

      10:       Peak Current Limit(A)

     DC:       DC Power supply

     2Q:       2-Quadrant Driving Mode

       N:       N series(normal size and variable parameters)

      T :      -40~+65℃ Ta, Unlabelled=-10~+45℃ Ta





Notice:



1.Select peak current of driver: Ip(A)2*Ir(A) or Ip(A)≧4*Pom/(1.414*Vp), Irm=rated current of motor(A) Pom=Rated output power                                                      of motor(W), Vp=AC supply voltage of Driver(Vrms)

2. Driving quadrant: The drivers are only used in I&III quadrant.

3. Interference from leads: The Hall signals can be disturbed by switched current in windings leads when length is more than 3m. Don't                                                         intertwine them together. It is better to use shielded leads.

4. Motor Insultaion:  Hall sensors to Windings/Hall sensors to Motor Cse/Windings to Motor Case

                                   Insulation Resistance>100MOhm@1500VDC

                                   Dielectric strength<1mA@1200VAC/50-60Hz/1 minute

5.Safety:       The PE terminal labeled on the driver must be connected to the protection earth point of the supply system.



Typical connections:



JUNQI 12VDC 10A 20A 30A Brushless DC Motor Speed Driver, 3 Phase Motor Controller 0

BLDC Driver Inter face Port Descritpion:

JUNQI 12VDC 10A 20A 30A Brushless DC Motor Speed Driver, 3 Phase Motor Controller 1



Mechanical Size:



JUNQI 12VDC 10A 20A 30A Brushless DC Motor Speed Driver, 3 Phase Motor Controller 2



Picture Details:

JUNQI 12VDC 10A 20A 30A Brushless DC Motor Speed Driver, 3 Phase Motor Controller 3JUNQI 12VDC 10A 20A 30A Brushless DC Motor Speed Driver, 3 Phase Motor Controller 4
